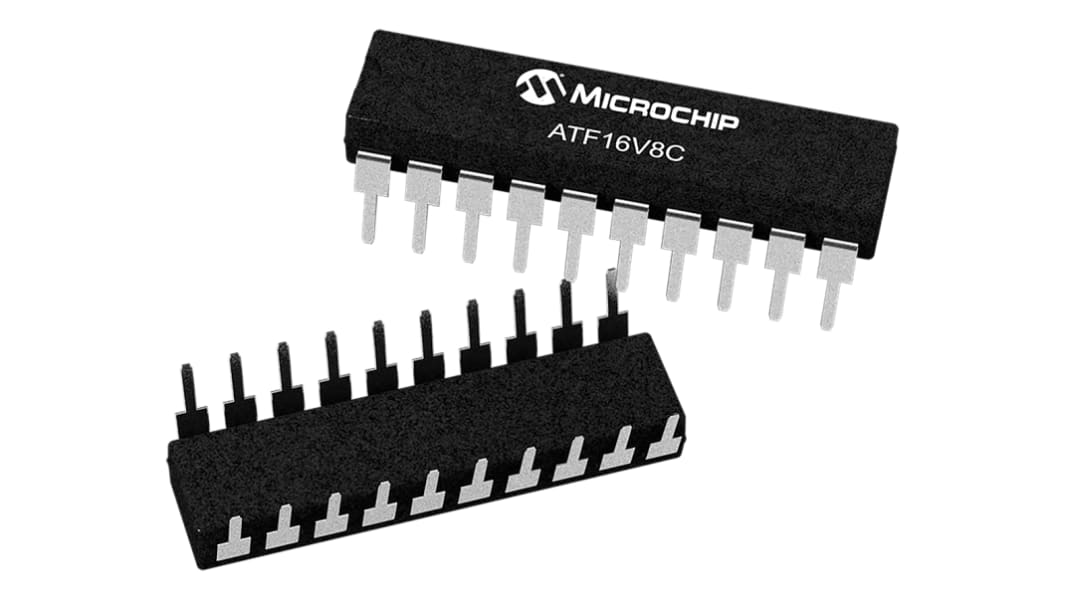

Microchip ATF16V8C-7PU, SPLD Simple Programmable Logic Device ATF16V8C 150 Gates, 8 Macro Cells, 8 I/O, 125MHz 7.5ns
- RS Stock No.:
- 127-8208
- Mfr. Part No.:
- ATF16V8C-7PU
- Manufacturer:
- Microchip
130 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each (In a Pack of 5)
MYR14.478
units | Per Unit | Per Pack* |
5 - 20 | MYR14.478 | MYR72.39 |
25 - 95 | MYR14.044 | MYR70.22 |
100 + | MYR13.624 | MYR68.12 |
*price indicative |
- RS Stock No.:
- 127-8208
- Mfr. Part No.:
- ATF16V8C-7PU
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | ATF16V8C |
Number of Gates | 150 |
Number of Macro Cells | 8 |
Number of User I/Os | 8 |
Maximum Internal Frequency | 125MHz |
Re-programmability Support | Yes |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 20 |
Maximum Propagation Delay Time | 7.5ns |
Fabrication Technology | CMOS, TTL |
Dimensions | 26.92 x 7.11 x 4.95mm |
Height | 4.95mm |
Length | 26.92mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 7.11mm |
Maximum Operating Supply Voltage | 5 V |
Propagation Delay Test Condition | 50pF |
