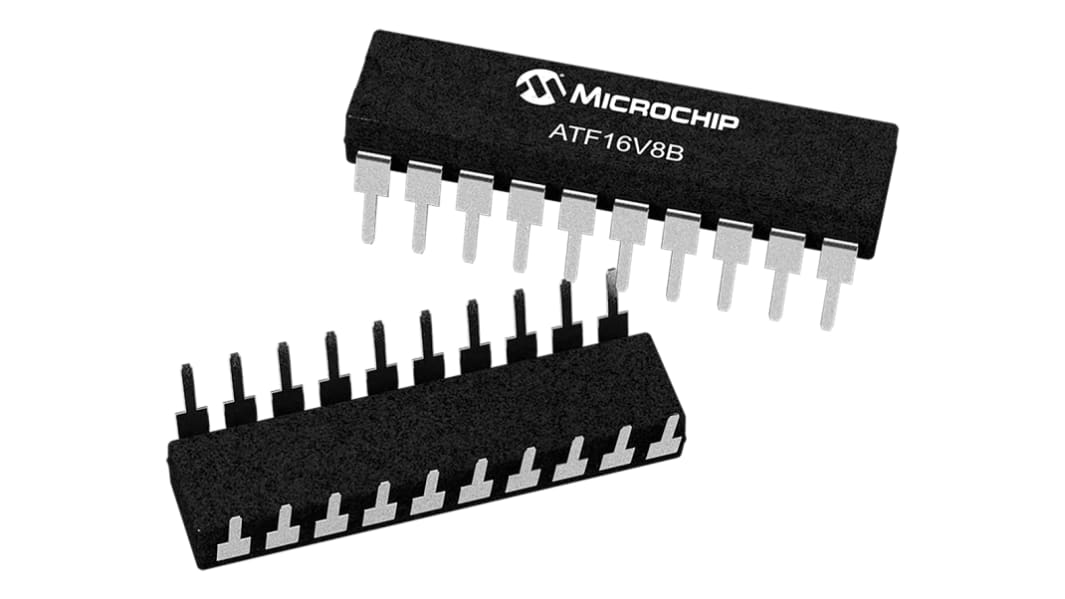

Microchip ATF16V8B-15PU, SPLD Simple Programmable Logic Device ATF16V8B 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns
- RS Stock No.:
- 127-8202
- Mfr. Part No.:
- ATF16V8B-15PU
- Manufacturer:
- Microchip
Stock check temporarily unavailable - call for stock availability
Added
Price Each (In a Pack of 5)
MYR7.96
| Units | Per Unit | Per Pack* |
| 5 - 20 | MYR7.96 | MYR39.80 |
| 25 - 95 | MYR7.72 | MYR38.60 |
| 100 + | MYR7.488 | MYR37.44 |
| *price indicative | ||
- RS Stock No.:
- 127-8202
- Mfr. Part No.:
- ATF16V8B-15PU
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | ATF16V8B |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 62MHz |
| Re-programmability Support | Yes |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 20 |
| Maximum Propagation Delay Time | 15ns |
| Fabrication Technology | CMOS, TTL |
| Dimensions | 26.92 x 7.11 x 4.95mm |
| Height | 4.95mm |
| Propagation Delay Test Condition | 50pF |
| Length | 26.92mm |
| Maximum Operating Supply Voltage | 5 V |
| Width | 7.11mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
