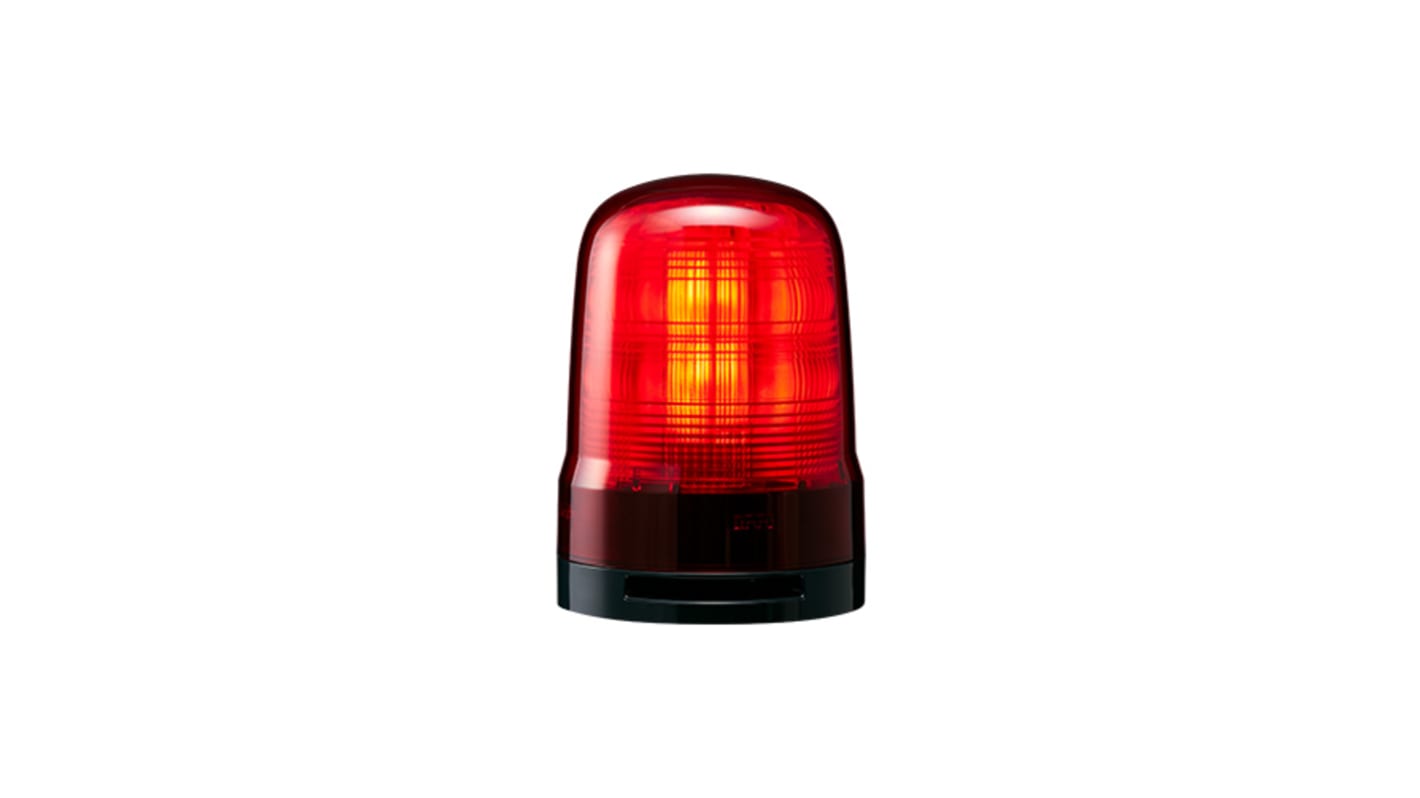

Patlite SF Series Red Sounder Beacon, 100 →240 VAC, IP66, Base Mount
- RS Stock No.:
- 215-4742
- Mfr. Part No.:
- SF10-M2KTB-R
- Manufacturer:
- Patlite
Temporarily out of stock - back order for despatch 06/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR1,531.95
| Units | Per Unit |
| 1 + | MYR1,531.95 |
- RS Stock No.:
- 215-4742
- Mfr. Part No.:
- SF10-M2KTB-R
- Manufacturer:
- Patlite
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The SF series red colour multi-function beacon with buzzer and size 100mm. It has an operating voltage rating of 100-240V ac. It is available with screw less terminal block.
Rotation Flashing Rate (Typ.) 180 rpm[High Speed], 120 rpm[Middle Speed], 60 rpm[Low Speed]
Mounting Direction Indoor: Upright, Inverted, Sideways, Outdoor : Upright
Sound Pressure Level (Typ.) 86dB
Material (Glove / Body) PC
Flashing Rate(Typ.) Single-fl
Mounting Direction Indoor: Upright, Inverted, Sideways, Outdoor : Upright
Sound Pressure Level (Typ.) 86dB
Material (Glove / Body) PC
Flashing Rate(Typ.) Single-fl
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 100 →240 VAC |
| Lens Colour | Red |
| Mounting Style | Base Mount |
| Current Type | AC |
| Light Effect | Multiple Light Effects |
| Sounder Type | Buzzer |
| Series | SF |
| Bulb Type | LED |
| Maximum Decibel | 88dB |
| IP Rating | IP66 |
| Number Of Tones | 1 |
| Minimum Temperature | -20°C |
| Maximum Temperature | +50°C |
| Standards Met | UL 508, CSA-C22.2 No.14, EN61000-6-4, EN61000-6-2, EN61000-3-2, EN61000-3-3, KN61000-6-4, KN61000-6-2, FCC Part15 SubpartB ClassA, ICES-003 ClassA, IEC/EN60947-5-1, EN62471, TPTC020/2011, TPTC004/2011 |
| Housing Material | Polycarbonate |
