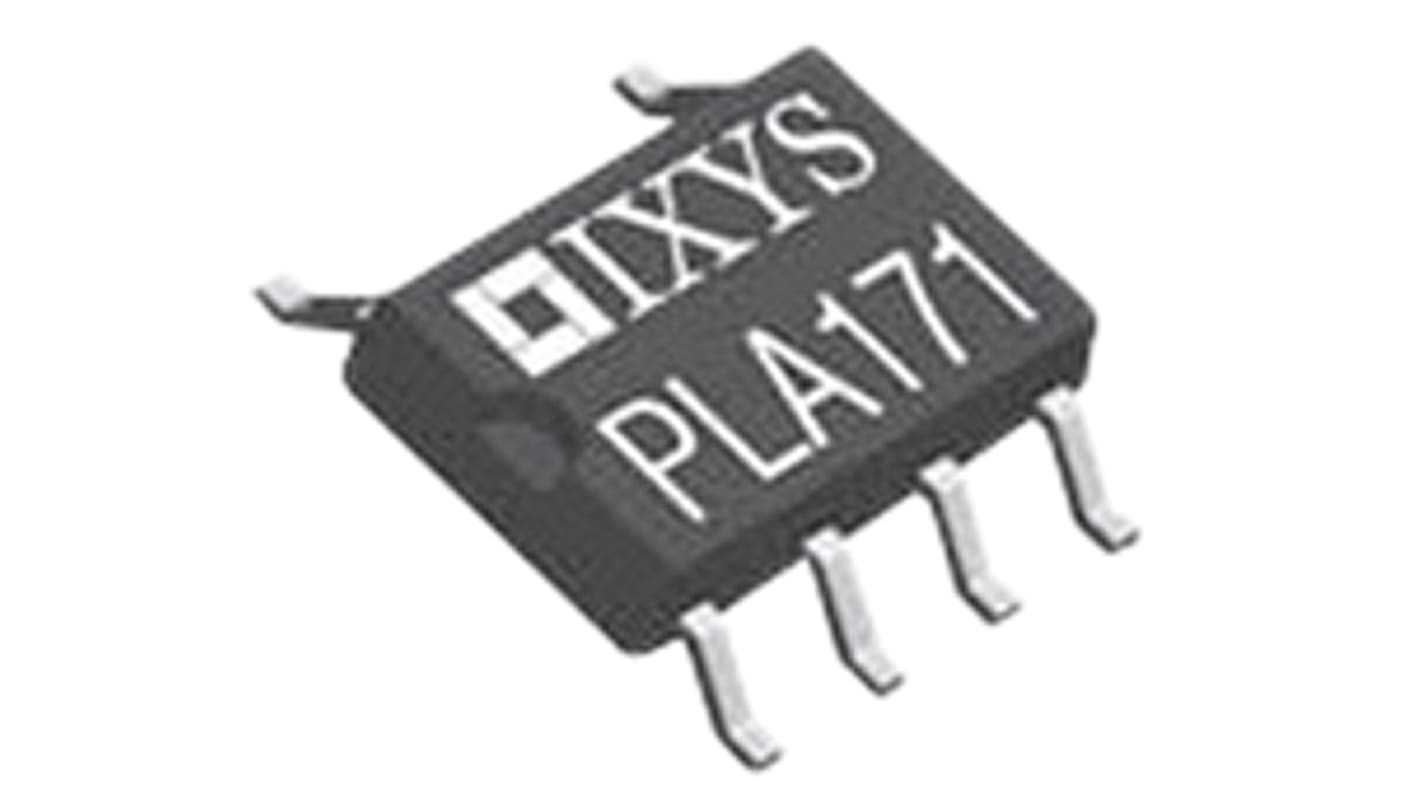

IXYS Solid State Relay, 100 mA Load, Surface Mount, 800 V Load
- RS Stock No.:
- 906-1158
- Mfr. Part No.:
- PLA171P
- Manufacturer:
- IXYS
13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR14.46
| Units | Per Unit |
| 1 - 24 | MYR14.46 |
| 25 - 49 | MYR14.16 |
| 50 - 249 | MYR13.72 |
| 250 - 499 | MYR13.39 |
| 500 + | MYR13.10 |
- RS Stock No.:
- 906-1158
- Mfr. Part No.:
- PLA171P
- Manufacturer:
- IXYS
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
1-Form-A Enhanced Isolation OptoMOS Relay, PLA
The PLA171 uses optically coupled MOSFET technology to offer a high 5000 Vrms input-to-output isolation. It features a unique design with 7mm of space between the input and output pins. It is single pole with normally open (1-Form)A) contacts.
It is ideally suited to replace electromechanically relays and also has a higher degree of reliability. It is compact and provides bounce-free switching.
Potential Applications
Instrumentation: Multiplexers, data acquisition, electronic switching, I/O subsystems
Meters (watt-hour, water, gas)
Medical equipment: Patient/equipment isolation
Security systems
Aerospace
Industrial controls
It is ideally suited to replace electromechanically relays and also has a higher degree of reliability. It is compact and provides bounce-free switching.
Potential Applications
Instrumentation: Multiplexers, data acquisition, electronic switching, I/O subsystems
Meters (watt-hour, water, gas)
Medical equipment: Patient/equipment isolation
Security systems
Aerospace
Industrial controls
Features
7mm separation of output pins
800VP blocking voltage
5000 Vrms input/output isolation
Low drive power requirements (TTL/CMOS Compatible)
Arc-free with no snubbing circuits
No EMI/RFI generation
Small surface mount package
Machine insertable, wave solderable
Flammability rating UL 94 V-0
7mm separation of output pins
800VP blocking voltage
5000 Vrms input/output isolation
Low drive power requirements (TTL/CMOS Compatible)
Arc-free with no snubbing circuits
No EMI/RFI generation
Small surface mount package
Machine insertable, wave solderable
Flammability rating UL 94 V-0
Standards
UL, EN/IEC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Ixys Solid State Relays, PCB Mount
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 100 mA |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 800 V |
| Switching Type | DC |
| Number of Poles | 1 |
| Contact Configuration | SPST |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | Flat |
| Relay Type | OptoMOS |
| Maximum Turn On Time | 5ms |
| Load Voltage Range | Maximum of 800V |
| Dimensions | 9.652 x 6.35 x 2.159mm |
| Depth | 6.4mm |
| Height | 2.2mm |
| Length | 9.7mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Off State Leakage Current | 1 μA |
| Capacitance | 11pF |
| Operating Temperature Range | -40 → +85°C |
| Standards Met | EN/IEC 60950 TUV B 12 11 82667 001, UL File E76270 |
| Special Features | Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable |
