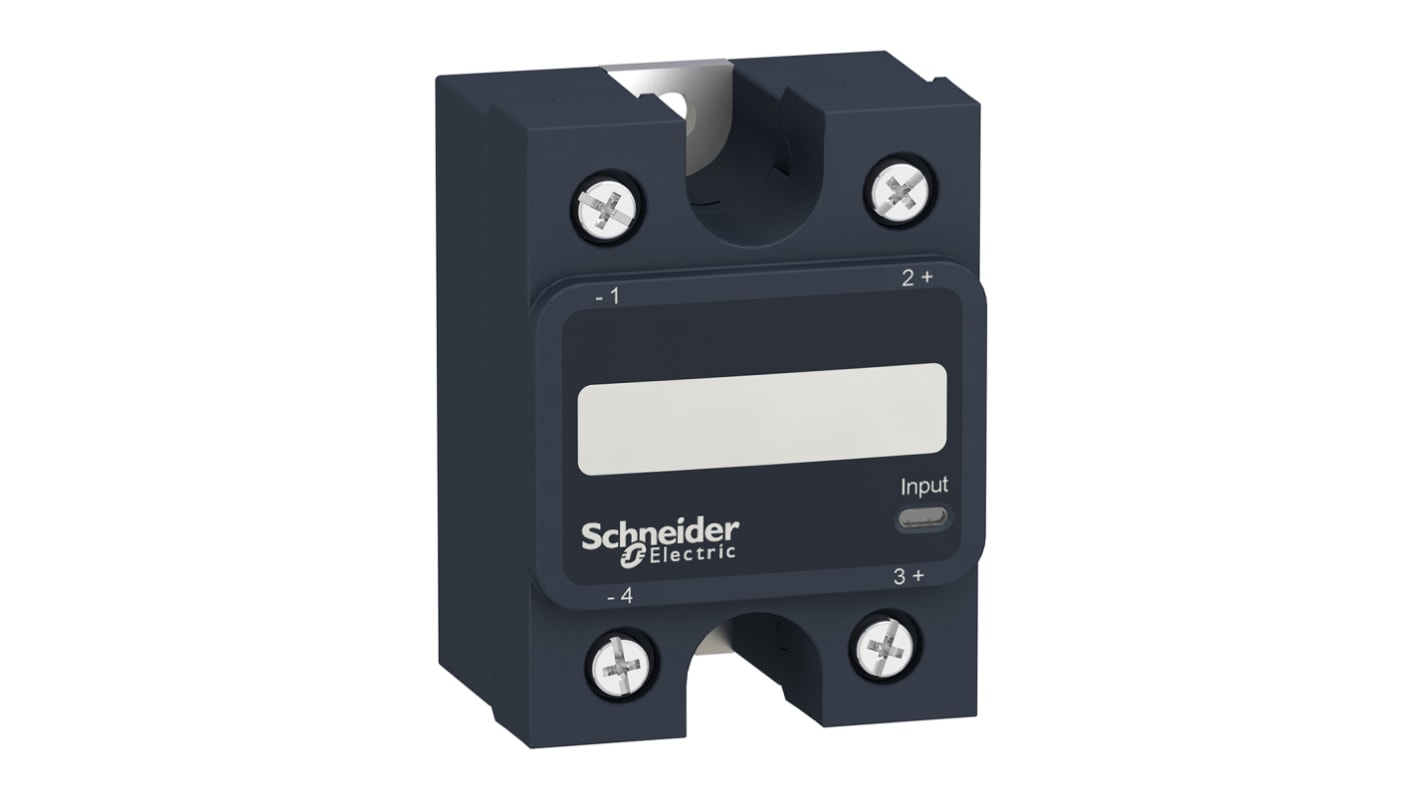

Schneider Electric 75 A SPNO Solid State Relay, Zero Voltage, Panel Mount, SCR, 660 V ac Maximum Load

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Zelio SSP1 Solid State Relays

The new Zelio SSP1 relays offer a complete range of innovative, smart diagnostic features and reliable solid state relays. This range of solid state relays, with their telescopic screw terminal are safe and reliable plus the smart diagnostic feature which has a signal alarm output allowing you to troubleshoot, therefore minimizing any downtime and the impact of a machine break down. The SSP1 solid state relays are a complete solution of 1 and 3 phase, slim, modular and DIN rail panel mount with a solid state switching solution. With simple easy product selection and easy to understand product information the SSP1 range provides you an enhanced product and a much improved user experience.

Zero voltage switching
1 Phase
Panel Mount
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations

Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
Machines, building and medical equipment
Textile machines

Schneider Solid State Relays

Attribute Value
Minimum Load Current 0.15 A
Maximum Load Current 75 A
Mounting Type Panel Mount
Minimum Load Voltage 48 V ac
Maximum Load Voltage 660 V ac
Minimum Control Voltage 4 V dc
Maximum Control Voltage 32 V dc
Switching Type Zero Voltage
Contact Configuration SPNO
Terminal Type Screw
Output Device SCR
Maximum Turn On Time 0.5 cycles
Dimensions 44.45 x 34.29 x 58.89mm
Off State Leakage Current <= 1 mA
Length 44.45mm
Operating Temperature Range -40 → +80°C
Special Features Green LED for Input Visualization
Height 58.89mm
Number of Poles 1
Capacitance 8pF
Depth 34.29mm
Standards Met CE, CSA, EAC, EN/IEC, REACH, UL
Relay Type Solid State Relay
Load Voltage Range 48 → 660V ac
Control Voltage Range 4 → 32 V dc
