- RS Stock No.:
- 702-6813
- Mfr. Part No.:
- SCM0150100
- Manufacturer:
- Celduc
1 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
19 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each
MYR1,059.34
units | Per Unit |
1 - 4 | MYR1,059.34 |
5 - 9 | MYR1,037.10 |
10 + | MYR1,015.31 |
- RS Stock No.:
- 702-6813
- Mfr. Part No.:
- SCM0150100
- Manufacturer:
- Celduc
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

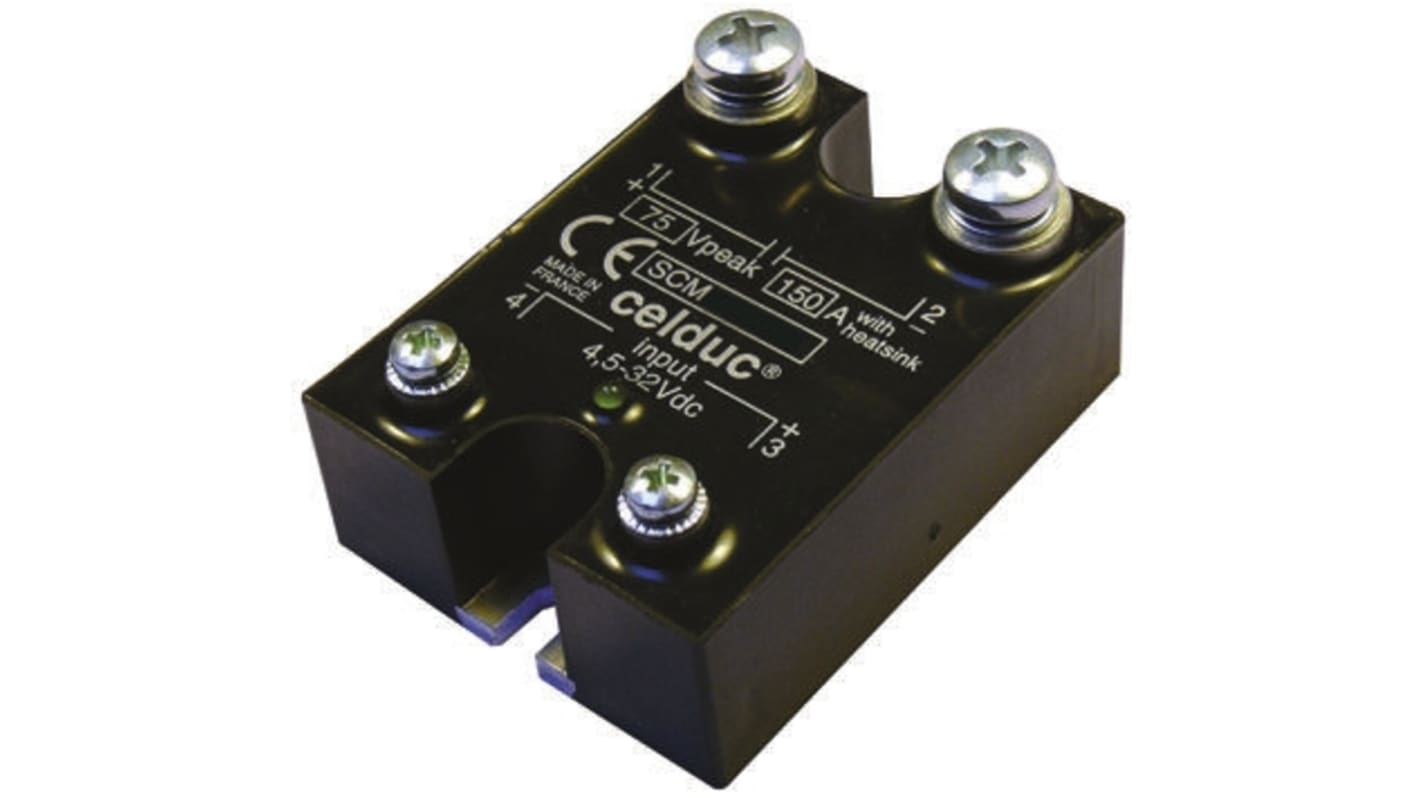

SCM solid state relays for direct current
Latest MOSFET technology generation
Ultra low on-state resistance
Ultra low output leakage current
Low control current consumption
Triggered control input to avoid linear control risks
Low conducted and radiated disturbances
Ultra low on-state resistance
Ultra low output leakage current
Low control current consumption
Triggered control input to avoid linear control risks
Low conducted and radiated disturbances
Standards
IEC 60947-1
Instantaneous Switching
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 150 A |
Mounting Type | Panel Mount |
Maximum Load Voltage | 100 V dc |
Minimum Load Voltage | 0 V dc |
Minimum Control Voltage | 4.5 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | DC |
Control Voltage Range | 4.5 → 32 V dc |
Minimum Load Current | 0 A |
Range | SCM |
Number of Poles | 1 |
Terminal Type | Screw |
Output Device | MOSFET |
Relay Type | DC Solid State Relay |
Maximum Turn On Time | 10 μs |
Series | SCM |
Load Voltage Range | 0 → 100V dc |
Dimensions | 44.5 x 58.2 x 27mm |
Maximum Operating Temperature | +90°C |
Minimum Operating Temperature | -40°C |
Standards Met | CE, EAC, cURus |
Depth | 58.2mm |
Operating Temperature Range | -40 → +90°C |
Length | 44.5mm |
Height | 27mm |
Off State Leakage Current | 500 μA |
