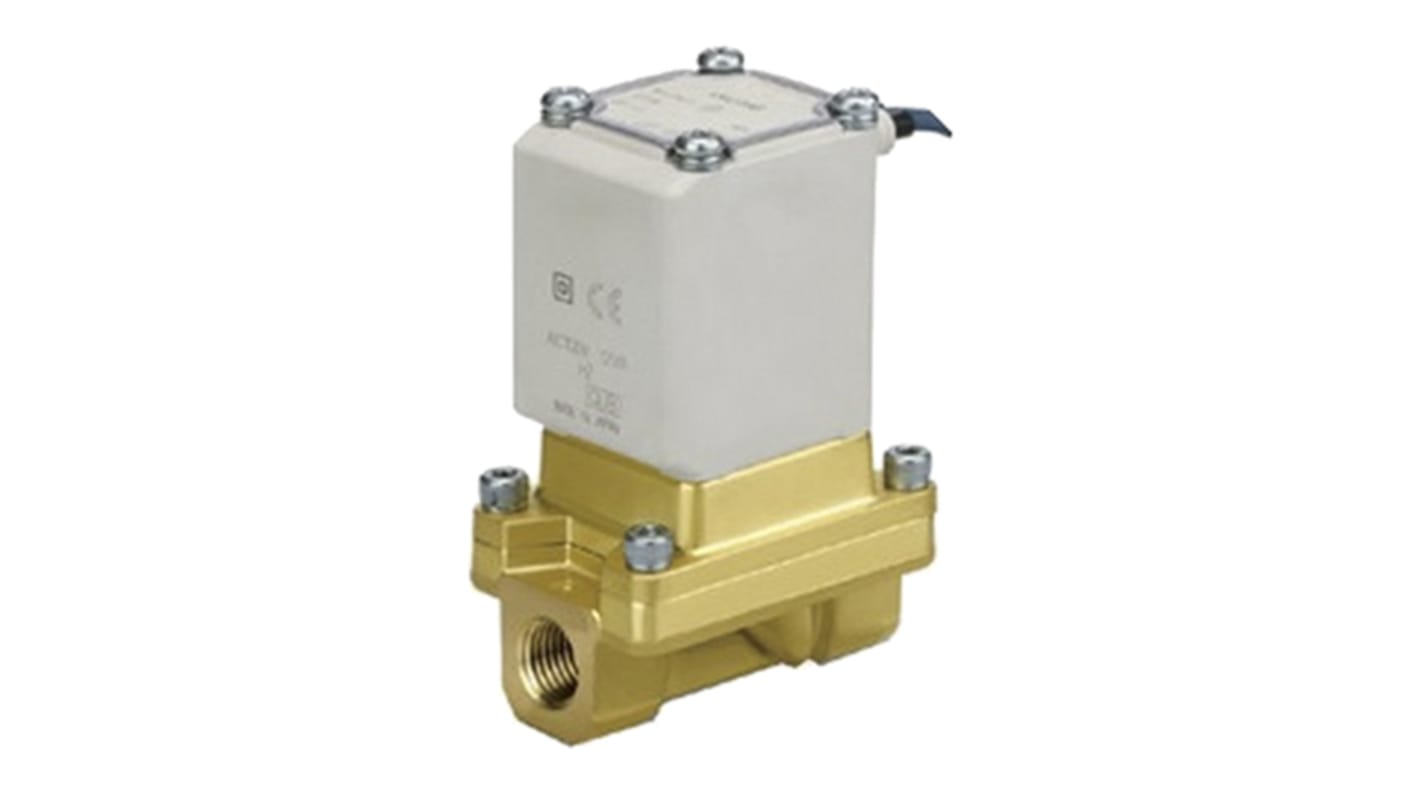

SMC Solenoid Valve VXS245FLA, 2 port , NC, 230 V ac, 1/2in

  • RS Stock No. 893-8376
  • Mfr. Part No. VXS245FLA
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

VXS2 Two Port Pilot Operated Solenoid Valve

Zero pressure differential pilot solenoid valves from SMC requiring no fluid pressure for operation suitable for use with steam and heated water. Service life has been increased to 3 million cycles by using an improved scraper design that is contaminant resilient. Air leakage has also been reduced. This new series of solenoid valves are also greener consuming less energy and quieter in operation due to a rubber buffer design.

Reduced power consumption
Standardised 24 V dc DIN terminal
Minimal internal air leakage
Stainless Steel or Brass body
Low noise operation
Improved armature durability
Double guide rings for improved foreign object resistance

Specifications
Attribute Value
Supply Voltage 230 V ac
Number of Ports 2
Operation Pilot
Connection 1/2 in G
Connection Size 1/2in
Default Valve Position NC
Suitable Applications Steam
Type 2/2
Orifice Diameter 15mm
Body Material Brass
Maximum Working Pressure 1 Mpa
Operating Temperature Range -20 → +60 °C
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Thread Standard or Connection Type G
Connection Gender Female
Series VXS
