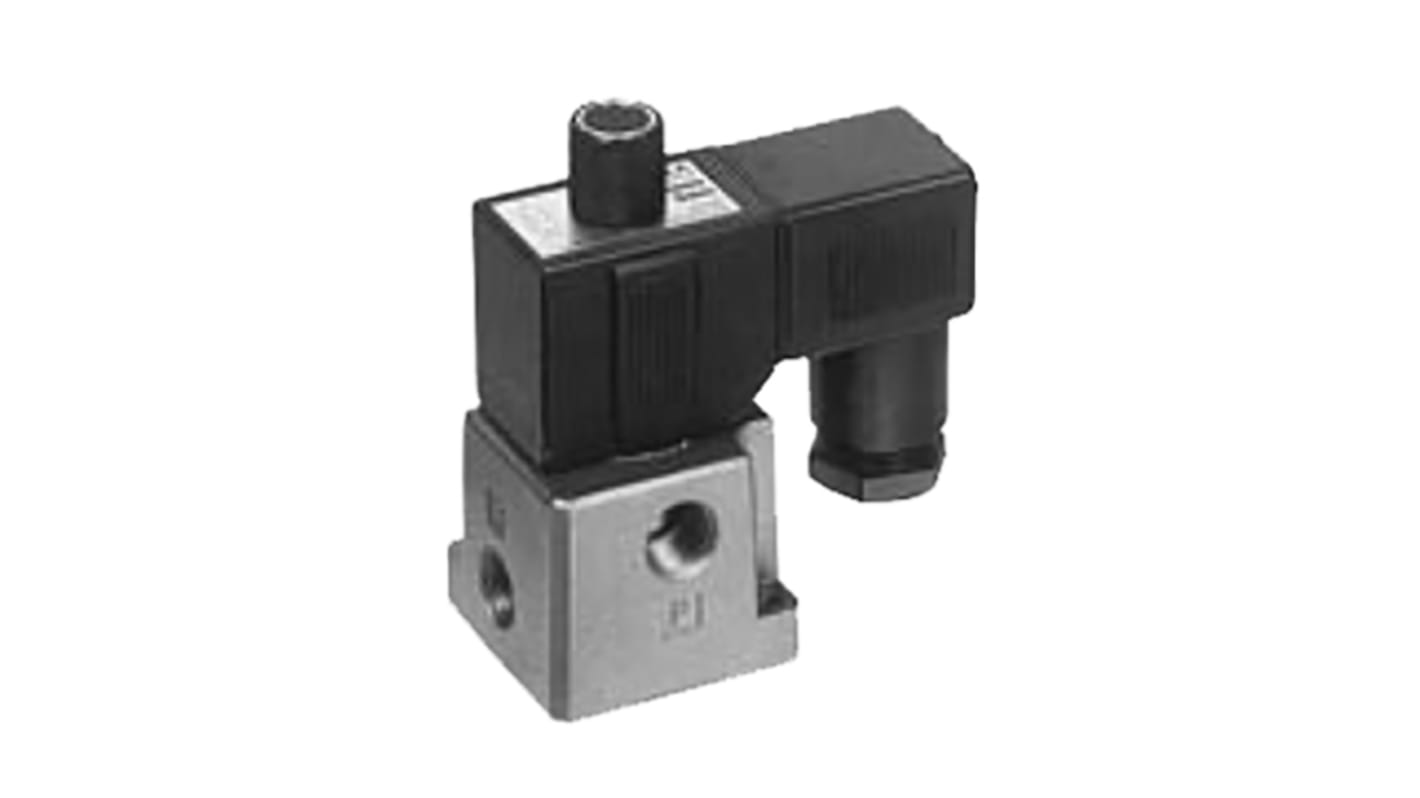

SMC Solenoid Valve VT317-3DZ-02-Q, 3 port , NC, NO, 110 V ac, 1/4in

  • RS Stock No. 873-2553
  • Mfr. Part No. VT317-3DZ-02-Q
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series

A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions.

1/ 4 in ports, tapered threads
Standard DIN 43650 Electrical Connection
Push button manual override
Surge voltage protection
Coils may be orientated at 90° increments
Suitable for vacuum applications (9120857)

Specifications
Attribute Value
Supply Voltage 110 V ac
Number of Ports 3
Operation Direct
Connection 1/4 in Rc Female
Connection Size 1/4in
Default Valve Position NC, NO
Suitable Applications Air
Type 3/2
Body Material Die Cast Aluminium
Maximum Working Pressure 0.9 MPa
Operating Temperature Range 0 → +50 °C
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
Thread Standard or Connection Type Rc
Maximum Opening Time 30ms
Maximum Closing Time 30ms
Series VT317
Connection Gender Female
8 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 281.64
units
Per unit
1 +
MYR281.64
