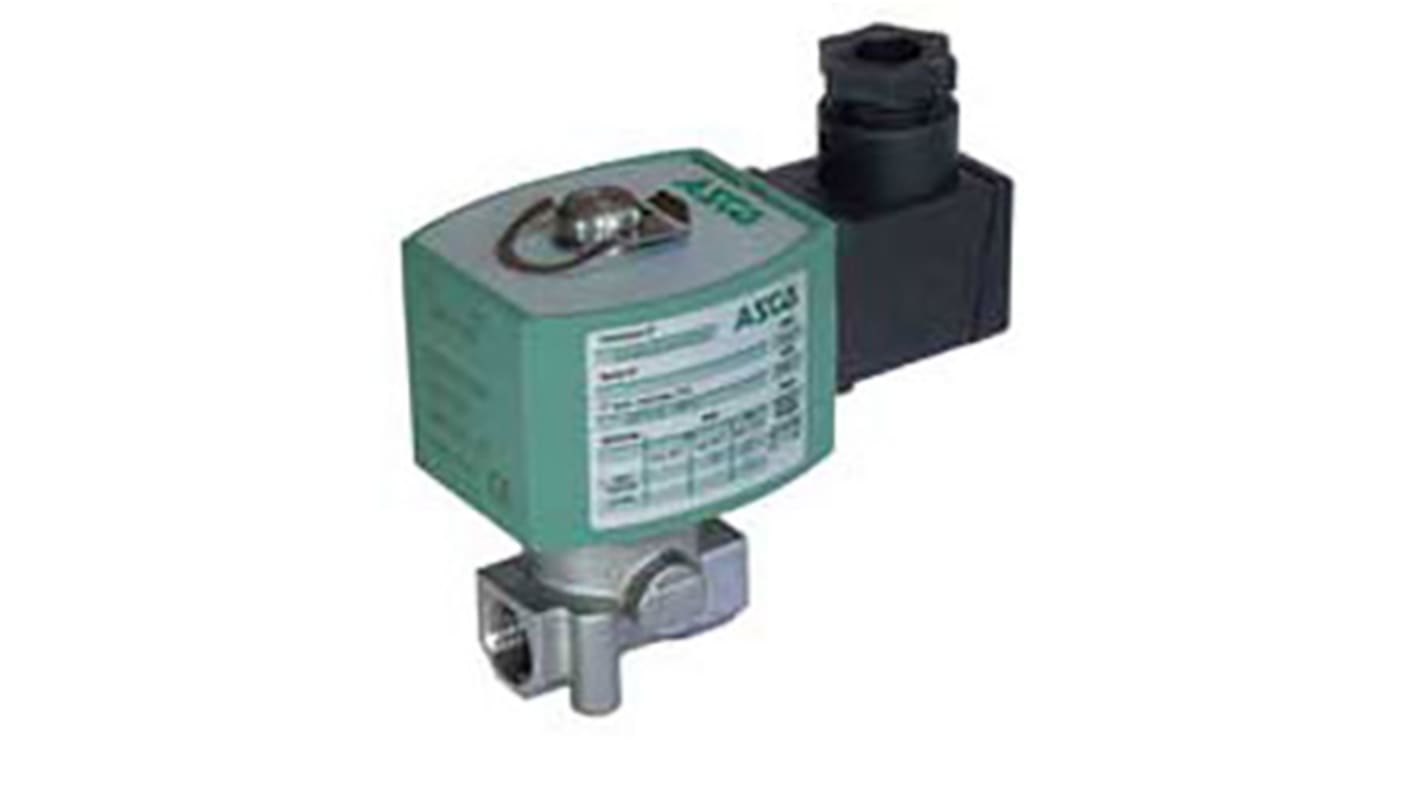

Asco Solenoid Valve E262K184S1N01-24V 50HZ, 2 port , NC, 24 V ac, 1/4in

  • RS Stock No. 869-2234
  • Mfr. Part No. E262K184S1N01FL
  • Manufacturer Asco
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Two-way, Direct Operated, High Pressure, N/C Valves

Direct operated solenoid valves with a stainless steel or brass body and NBR rubber seals. Fitted with a manual override and suitable for use with air, inert gases oil and water. ASCO's 262 series process valves are ROHs compliant and do not require a minimum pressure to operate. Coils can easily be changed between AC and DC. Available normally open or normally closed.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Specifications
Attribute Value
Supply Voltage 24 V ac
Number of Ports 2
Operation Direct
Connection 1/4 in G Female
Connection Size 1/4in
Default Valve Position NC
Suitable Applications Air, Oil, Water
Type 2/2
Orifice Diameter 3.2mm
Body Material Stainless Steel
Maximum Working Pressure 6.5 (Oil) bar, 7 (Water) bar, 7.5 (Air) bar
Operating Temperature Range -25 → +80 °C
Minimum Operating Temperature -25°C
Maximum Operating Temperature +80°C
Connection Gender Female
Series E262K
Flow Factor Kv 0.3m³/h
Maximum Opening Time 25ms
Thread Standard or Connection Type G
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 666.64
units
Per unit
1 - 4
MYR666.64
5 - 9
MYR627.26
10 +
MYR620.71
