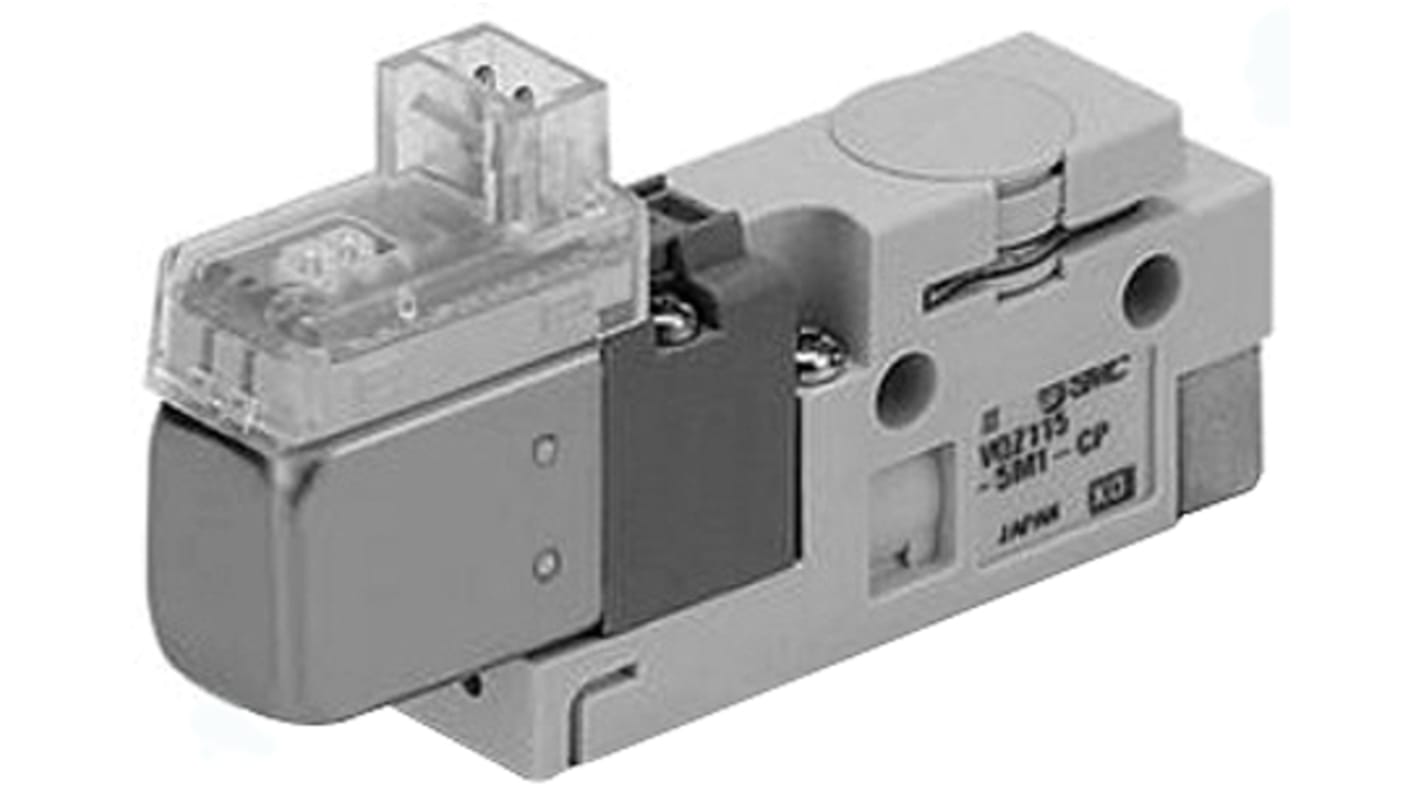

SMC Solenoid Valve VQZ115-5LO1-CP-Q, 3 port(s) , NC, 24 V dc, 1/8in
- RS Stock No.:
- 843-4896
- Mfr. Part No.:
- VQZ115-5LO1-CP-Q
- Manufacturer:
- SMC
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR423.51
| Units | Per Unit |
| 1 + | MYR423.51 |
- RS Stock No.:
- 843-4896
- Mfr. Part No.:
- VQZ115-5LO1-CP-Q
- Manufacturer:
- SMC
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
VQZ Series Solenoid Valves
The SMC VQZ series of base mount solenoid valves offer convenience with durability and performance in a more traditional mounting style.
The body ported version of the VQZ series of solenoid valves combine flexibility with high performance and give a longer life in an in-line body style.
The body ported version of the VQZ series of solenoid valves combine flexibility with high performance and give a longer life in an in-line body style.
Various port options available
Coil rated voltage: 12, 24VDC; 100, 110VAC
Operating pressure range: 0.1 - 0.7MPa
Fluid: air, inert gas
Ambient and fluid temperature: -10 to 50 C
Coil rated voltage: 12, 24VDC; 100, 110VAC
Operating pressure range: 0.1 - 0.7MPa
Fluid: air, inert gas
Ambient and fluid temperature: -10 to 50 C
SMC VQZ series
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 3 |
| Connection Size | 1/8in |
| Connection | 1/8 in Rc |
| Operation | Pilot |
| Default Valve Position | NC |
| Suitable Applications | Air, Inlet Gas |
| Type | 3/2 |
| Orifice Diameter | 10mm |
| Body Material | Die Cast Aluminium |
| Series | VQZ100 |
| Maximum Working Pressure | 7 bar |
| Operating Temperature Range | -10 → +50 °C |
| Connection Gender | Female |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -10°C |
| Thread Standard or Connection Type | Metric |
| Maximum Closing Time | 10ms |
| Maximum Opening Time | 10ms |
