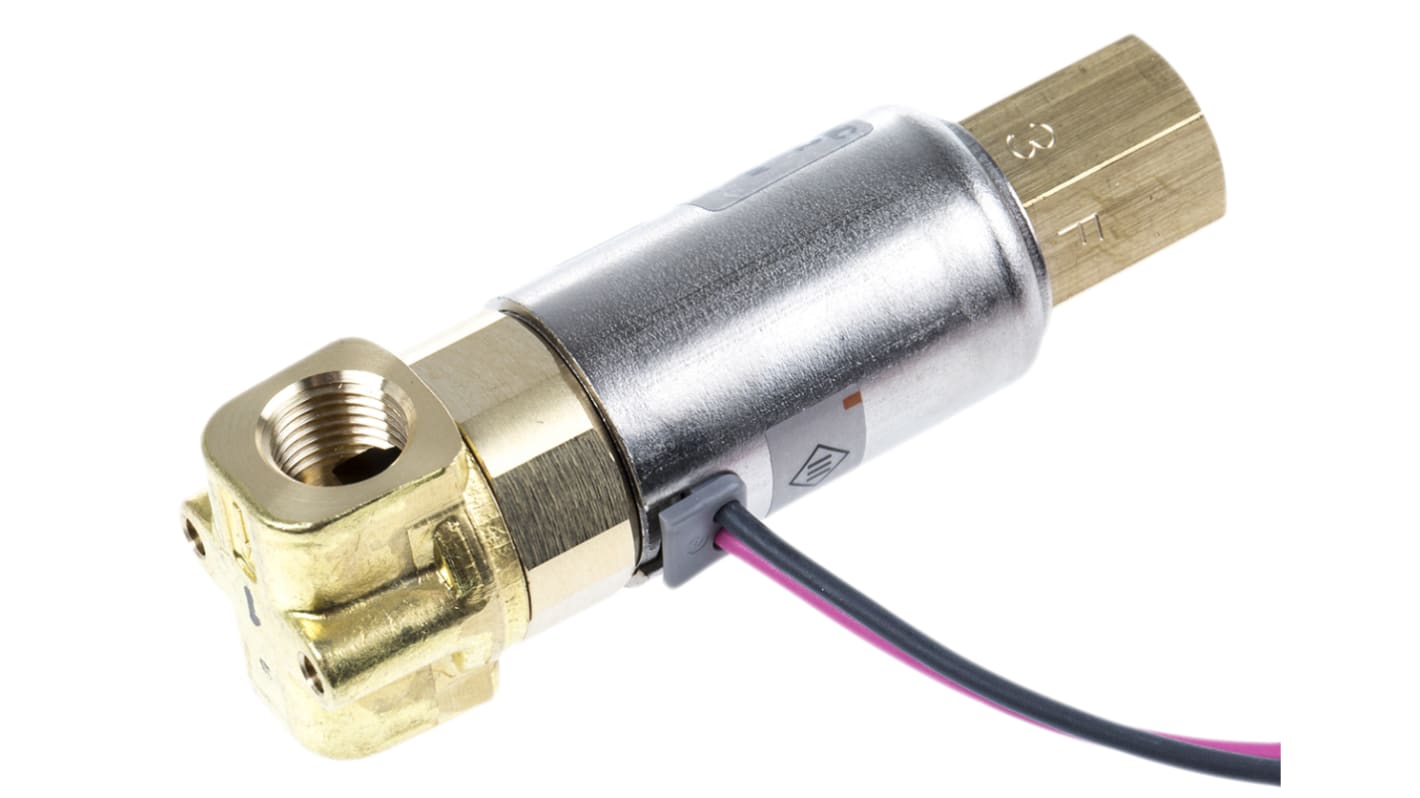

SMC Solenoid Valve VDW250-5G-2-01F-Q, 3 port , NO/NC, 24 V dc, 1/8in

  • RS Stock No. 701-3230
  • Mfr. Part No. VDW250-5G-2-01F-Q
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): JP
Product Details

Three Port Solenoid Valves

The VXA series of valves can be used with a wide variety of fluids. The VXA31/32 manifold is individual ported; valves for both are easily replaced without changing existing piping.

Compatible with a wide range of fluids

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 3
Operation Direct
Connection 1/8 in G Female
Connection Size 1/8in
Default Valve Position NO/NC
Suitable Applications Air, Low Vacuum, Water
Type 3/2
Orifice Diameter 1 mm, 1.6 mm
Body Material Brass
Maximum Working Pressure 1 MPa
Operating Temperature Range -10 → +50 °C
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
Thread Standard or Connection Type G
Connection Gender Female
Series VDW250
67 Within 4 working day(s) (Global stock)
17 Within 4 working day(s) (Global stock)
Price Each
MYR 119.12
units
Per unit
1 +
MYR119.12
