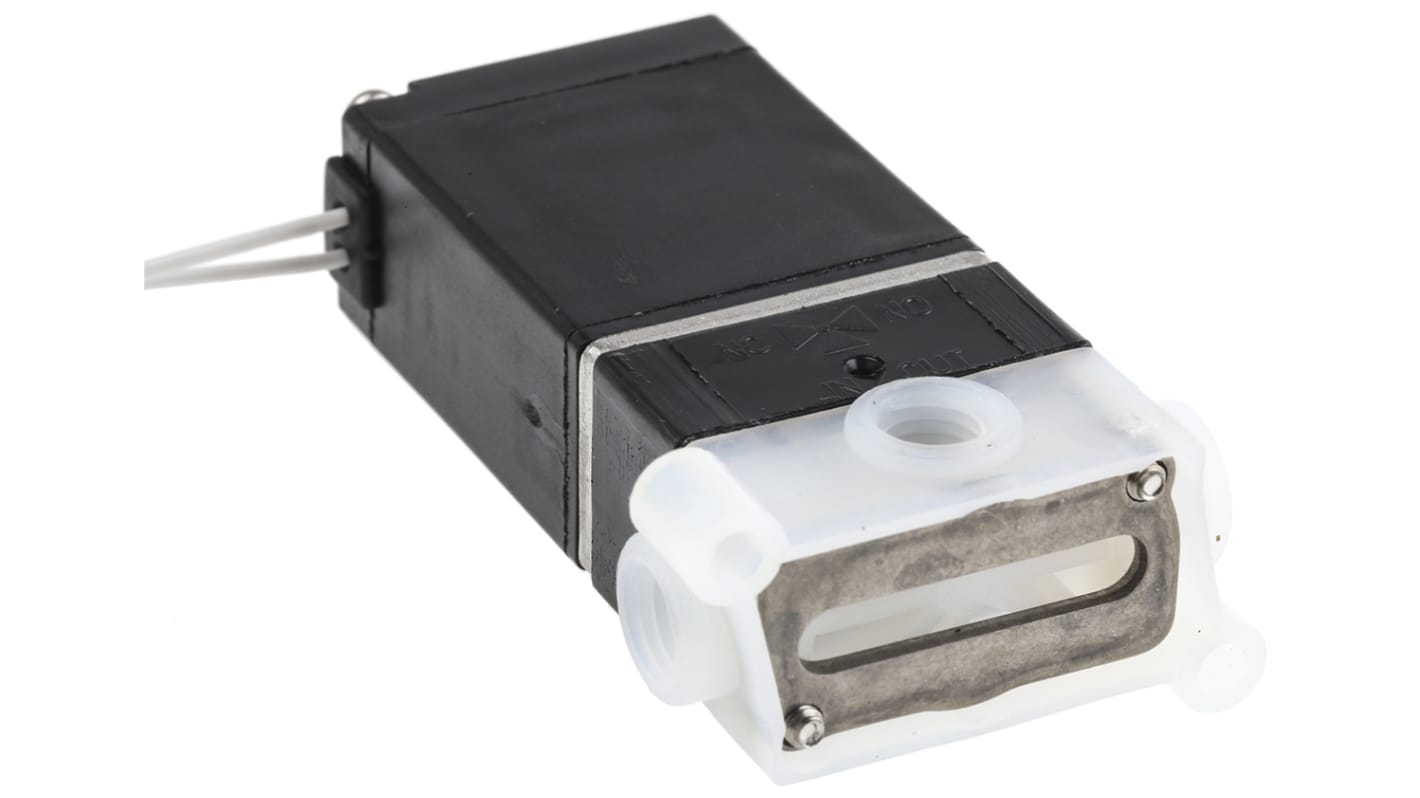

Burkert Solenoid Valve 137779, 3 port , Common, 24 V dc, 1/8in

  • RS Stock No. 388-5090
  • Mfr. Part No. 137779
  • Manufacturer Burkert
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

2//2 or 3//2-way Analytical Solenoid Valve, Type 6606

Isolating diaphragm in FFKM - medium only in contact with body and diaphragm
For medical, laboratory and scientific applications - incl. analysis, distribution, dosing, mixing, filling and batching
Miniature design
Low dead volume
Direct acting 2-way normally closed and 3-way universal functions
For use with chemical cleaning solvents, fluids and gases on laboratory, medical or factory plant analysers, high purity solutions, etc
3.4W power consumption
IP65 with flying leads or when cable plug fitted

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 3
Operation Direct
Connection 1/4 in UNF Female
Connection Size 1/8in
Default Valve Position Common
Suitable Applications Aggressive Gas, Aggressive Liquid
Type 3/2
Orifice Diameter 1.5mm
Body Material ETFE
Maximum Working Pressure 2 bar
Operating Temperature Range 0 → +55 °C
Minimum Operating Temperature 0°C
Maximum Operating Temperature +55°C
Series 6606
Maximum Opening Time 25ms
Flow Factor Kv 0.025m³/h
Connection Gender Female
Thread Standard or Connection Type UNF
Maximum Closing Time 25ms
16 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 574.66
units
Per unit
1 - 5
MYR574.66
6 +
MYR551.86
