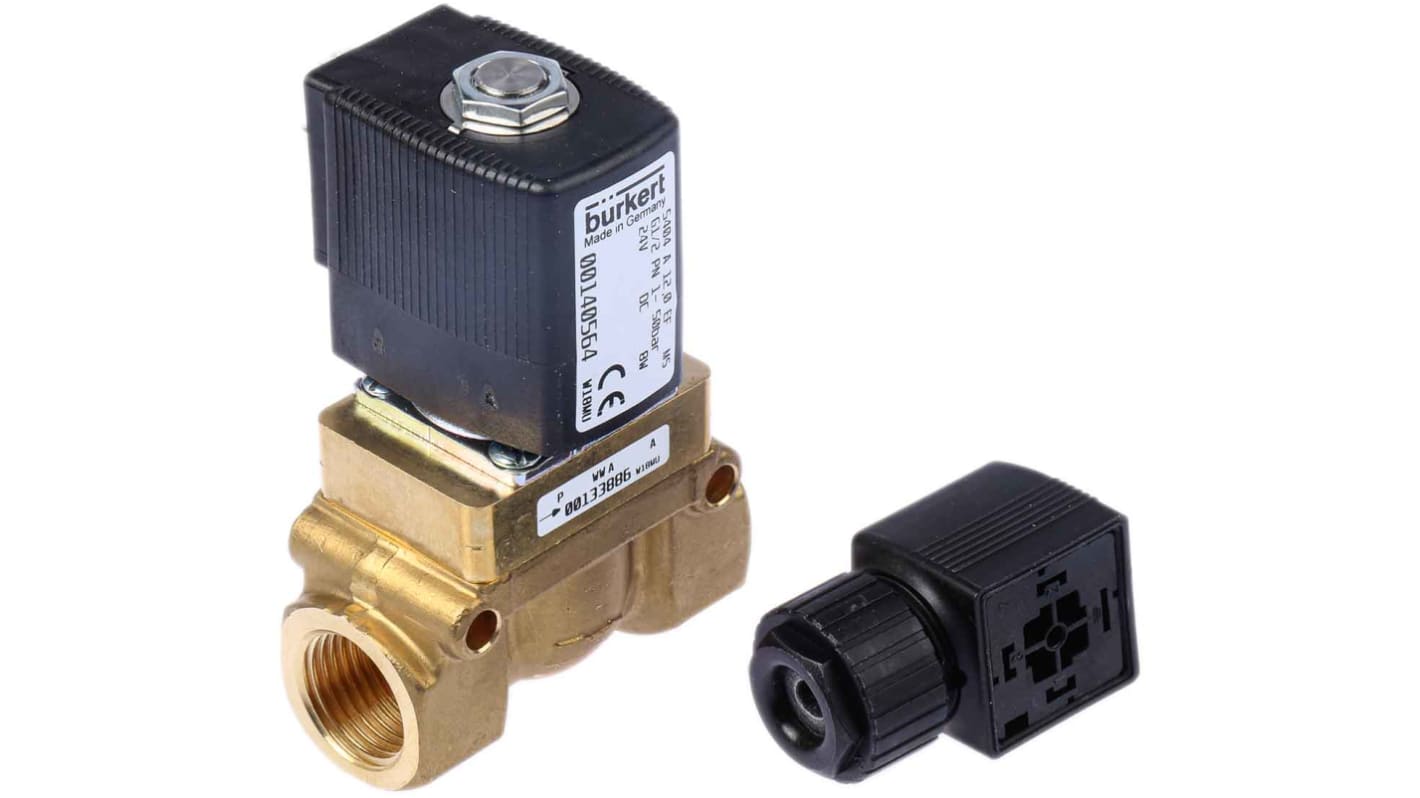

Burkert Solenoid Valve 134590, 2 port , NC, 24 V dc, 1/2in

  • RS Stock No. 313-2087
  • Mfr. Part No. 134590
  • Manufacturer Burkert
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Series 5404 Two-way High Pressure Normally Closed, Servo Assisted Solenoid Valve

Brass body with polyamide coil, PTFE seal material and stainless steel 1.4310 spring
High reliability
Unaffected by pressure surges
Easy coil change
Coil can be locked in four 90° positions, or move between as required
For use with compressed air pressure systems and gas turbines using compressed air; natural gas and water
Operating tempeature range -10 to +90°C
Protection rating IP65 with cable plug DIN43650C

//media.rs-online.com/t_line/L313208-01.gif
//media.rs-online.com/t_line/L439060-04.gif
//media.rs-online.com/t_line/L439240-02.gif

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 2
Operation Pilot
Connection 1/2 in G Female
Connection Size 1/2in
Default Valve Position NC
Suitable Applications Compressed Air, Hydraulic Oil, Neutral Media, Water
Type 2/2
Orifice Diameter 12mm
Body Material Brass
Maximum Working Pressure 50 bar
Operating Temperature Range -10 → +55 °C
Minimum Operating Temperature -10°C
Maximum Operating Temperature +55°C
Thread Standard or Connection Type G
Maximum Opening Time 400ms
Connection Gender Female
Series 5404
Maximum Closing Time 1500ms
Servo Assist Yes
Flow Factor Kv 2m³/h
