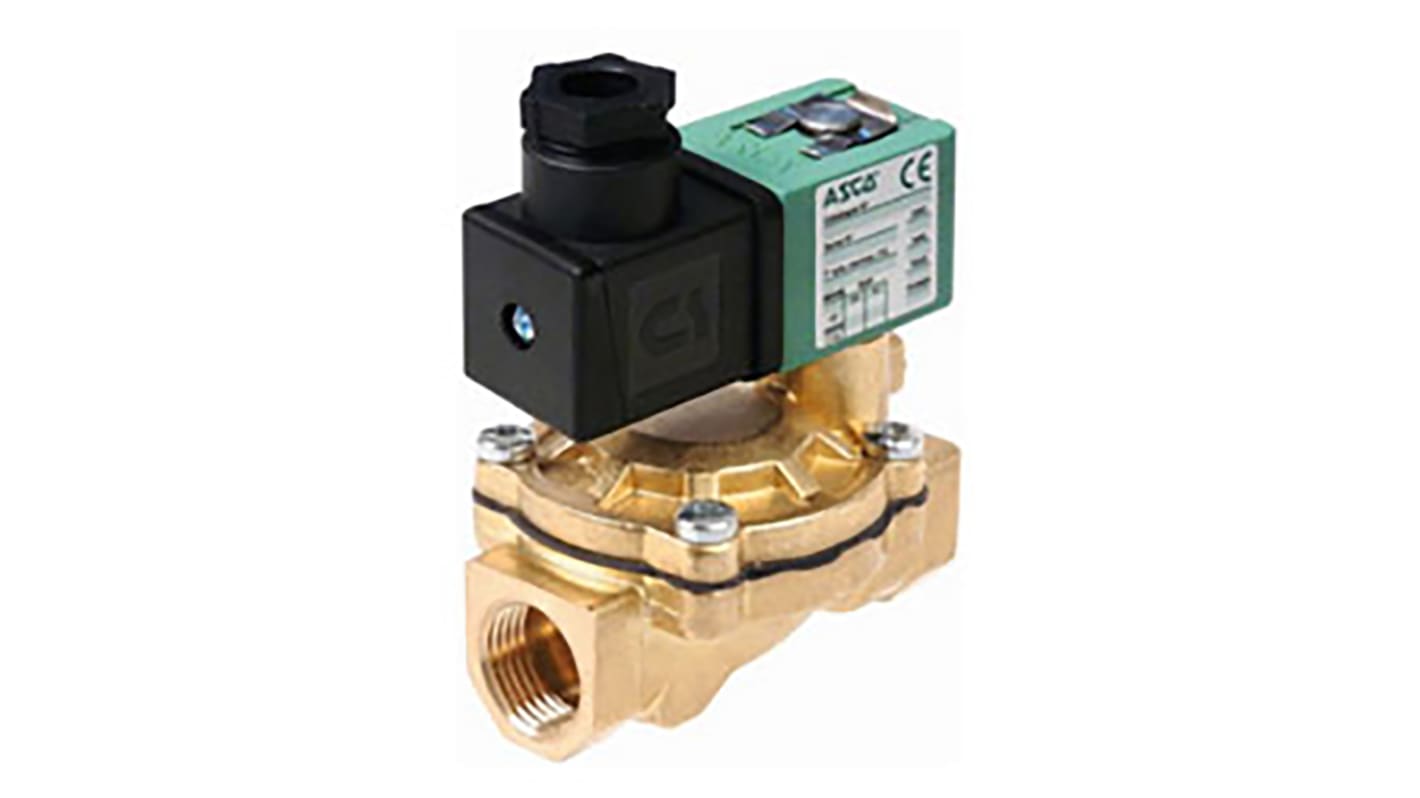

Asco Solenoid Valve SCE238D002.24/50-60, 2 port , NC, 24 V ac, 1/2in

  • RS Stock No. 306-1452
  • Mfr. Part No. SCE238D002.24/50-60
  • Manufacturer Asco
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Assisted control 2//2 solenoid valves

Range of 2//2 NC solenoid valves with power assistance, non supported diaphragm.
Solenoid valve operation with minimum Δ P of 0.3 bar for the 238 series and 0.35 bar for the 210 series.
Brass body.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Specifications
Attribute Value
Supply Voltage 24 V ac
Number of Ports 2
Operation Pilot
Connection 1/2 in G Female
Connection Size 1/2in
Default Valve Position NC
Suitable Applications Air, Inert Gas, Water
Type 2/2
Orifice Diameter 12mm
Body Material Brass
Maximum Working Pressure 10 bar
Operating Temperature Range -10 → +85 °C
Minimum Operating Temperature -10°C
Maximum Operating Temperature +85°C
Maximum Opening Time 30ms
Connection Gender Female
Series 238
Flow Factor Kv 2.4m³/h
Thread Standard or Connection Type G
Maximum Closing Time 90ms
