DIRECT 2/2NC 1/4 ORI.3 C13 NBR

  • RS Stock No. 176-2054
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

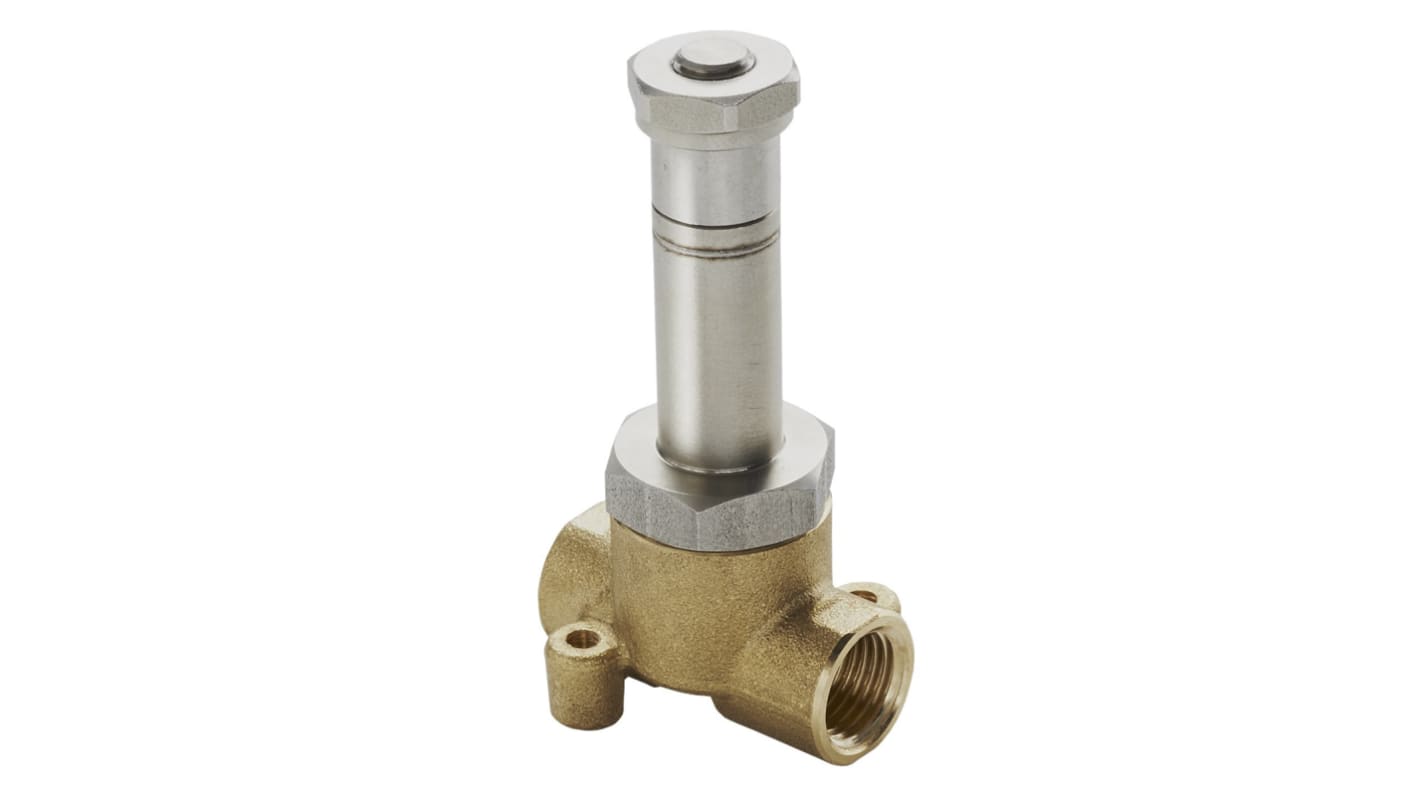

RS Pro direct acting 2/2 solenoid valves. Normally closed. Solenoids available separately. - Size: 1/4"- Body: Brass- Seals: NBR, FKM variants available- Core: Stainless steel- Springs: Stainless steel- Maximum allowable pressure: 40 bar- Operating temperature: - 10 °C to + 80 °C

Specifications
Attribute Value
Number of Ports 2
Operation Solenoid
Connection 1/4 in G Female
Connection Size 1/4in
Default Valve Position NC
Orifice Diameter 3mm
Body Material Brass
Maximum Working Pressure 40 bar
Operating Temperature Range -10 +90 °C
Minimum Operating Temperature -10°C
Maximum Operating Temperature +90°C
Connection Gender Female
Thread Standard or Connection Type G
Flow Factor Kv 0.21m³/h
6 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 265.41
units
Per unit
1 +
MYR265.41
