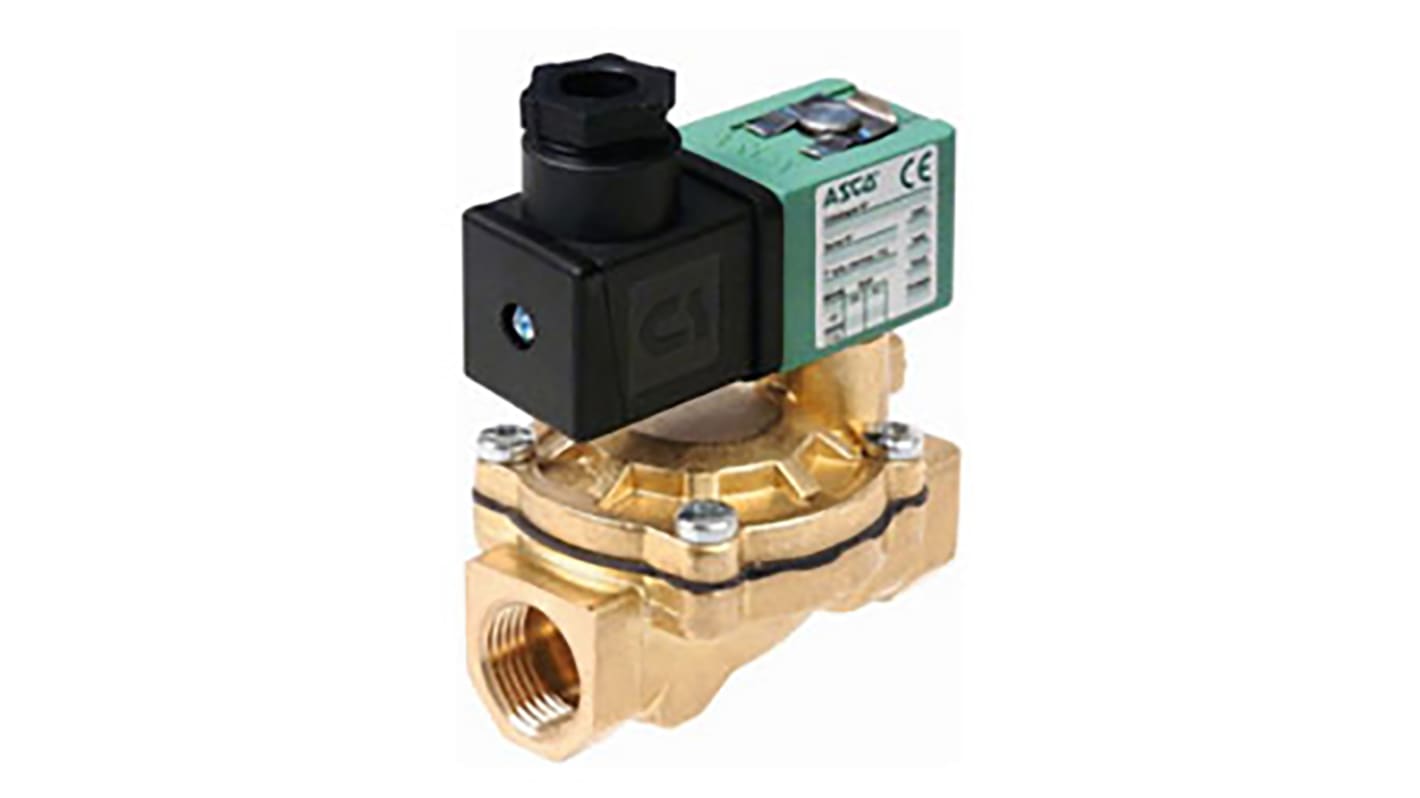

Asco Solenoid Valve SCE238C004 24/50, 2 port , NC, 24 V ac, 3/4in

  • RS Stock No. 488-738
  • Mfr. Part No. SCE238D004 24/50
  • Manufacturer Asco
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Two-Way, Pilot Operated, Minimum Pressure, N/C Valves

Two-way, pilot operated solenoid valves, minimum operating pressure required, normally closed with threaded port connection.

Brass body
Minimum operating pressure required
Compact & lightweight
DIN plug connection
Ranging from -20 to +85°C
Can be mounted in any position

Note

Pressure ranges are for water and may differ for other media.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Specifications
Attribute Value
Supply Voltage 24 V ac
Number of Ports 2
Operation Pilot
Connection 3/4 in G Female
Connection Size 3/4in
Default Valve Position NC
Suitable Applications Air, Inert Gas, Water
Type 2/2
Orifice Diameter 20mm
Body Material Brass
Maximum Working Pressure 10 bar
Operating Temperature Range -10 +60 °C
Minimum Operating Temperature -10°C
Maximum Operating Temperature +60°C
Flow Factor Kv 6.6m³/h
Series 238
Connection Gender Female
Thread Standard or Connection Type G
Maximum Closing Time 110ms
Maximum Opening Time 55ms
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 606.98
units
Per unit
1 - 5
MYR606.98
6 +
MYR594.96
