RS PRO Blue Solder Sleeve 3.7 → 6mm

  • RS Stock No. 872-6280
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Solder Sleeves

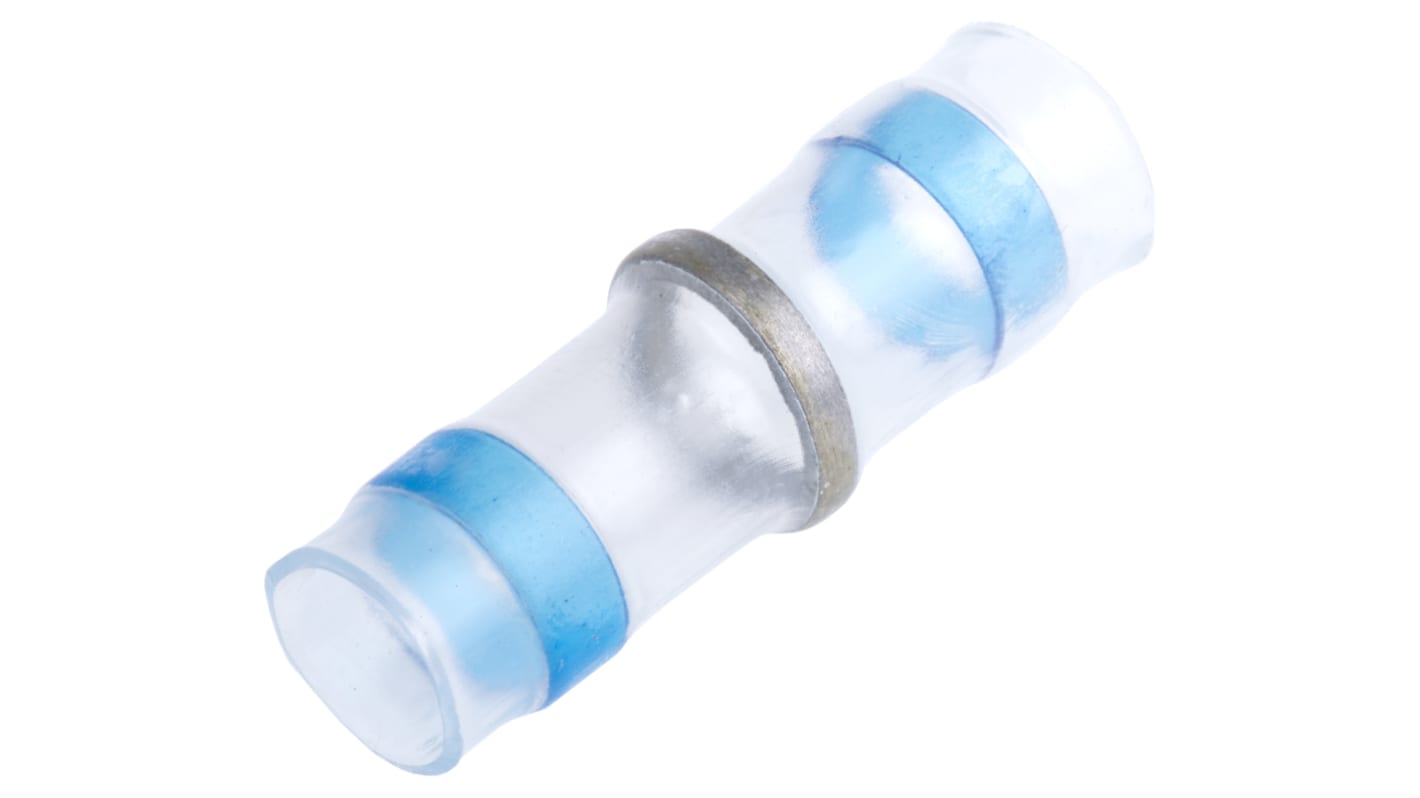

Heat-Shrinkable sleeves that provide strain relief, insulation, moisture resistance and protection for terminations from environmental damage. The transparent heat-shrinkable sleeve contains a pre-measured fluxed solder band and coloured hot-melt glue at each end. A labour-saving alternative to conventional wire and cable termination methods such as hand soldering or crimping. The solder sleeves are available in a range of sizes to suit cable diameters from 0.5 mm² to 22 mm², or as an assorted kit.


Features and benefits
• Shrink ratio 2:1
• Low temperature solder sleeve
• Fast installation
• Transparent sleeve provides precise inspection
• Easy control of soldering process

Specifications
Attribute Value
Minimum Cable Diameter 3.7mm
Maximum Cable Diameter 6mm
Sleeve Length 32.5mm
Material Low-Density Polyethylene
Dielectric Strength 1kV
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Quantity 1
Shrink Temperature >115°C
Colour Blue
Standards Met RoHS Compliant
Series GAST
42 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 100
MYR 447.73
Bag(s)
Per Bag
Per unit*
1 - 14
MYR447.73
MYR4.477
15 - 49
MYR425.34
MYR4.253
50 +
MYR411.94
MYR4.119
*price indicative
