Phaesun 100W Photovoltaic Solar Panel
- RS Stock No.:
- 188-1235
- Mfr. Part No.:
- 310306
- Manufacturer:
- Phaesun
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR963.82
| Units | Per Unit |
| 1 + | MYR963.82 |
- RS Stock No.:
- 188-1235
- Mfr. Part No.:
- 310306
- Manufacturer:
- Phaesun
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

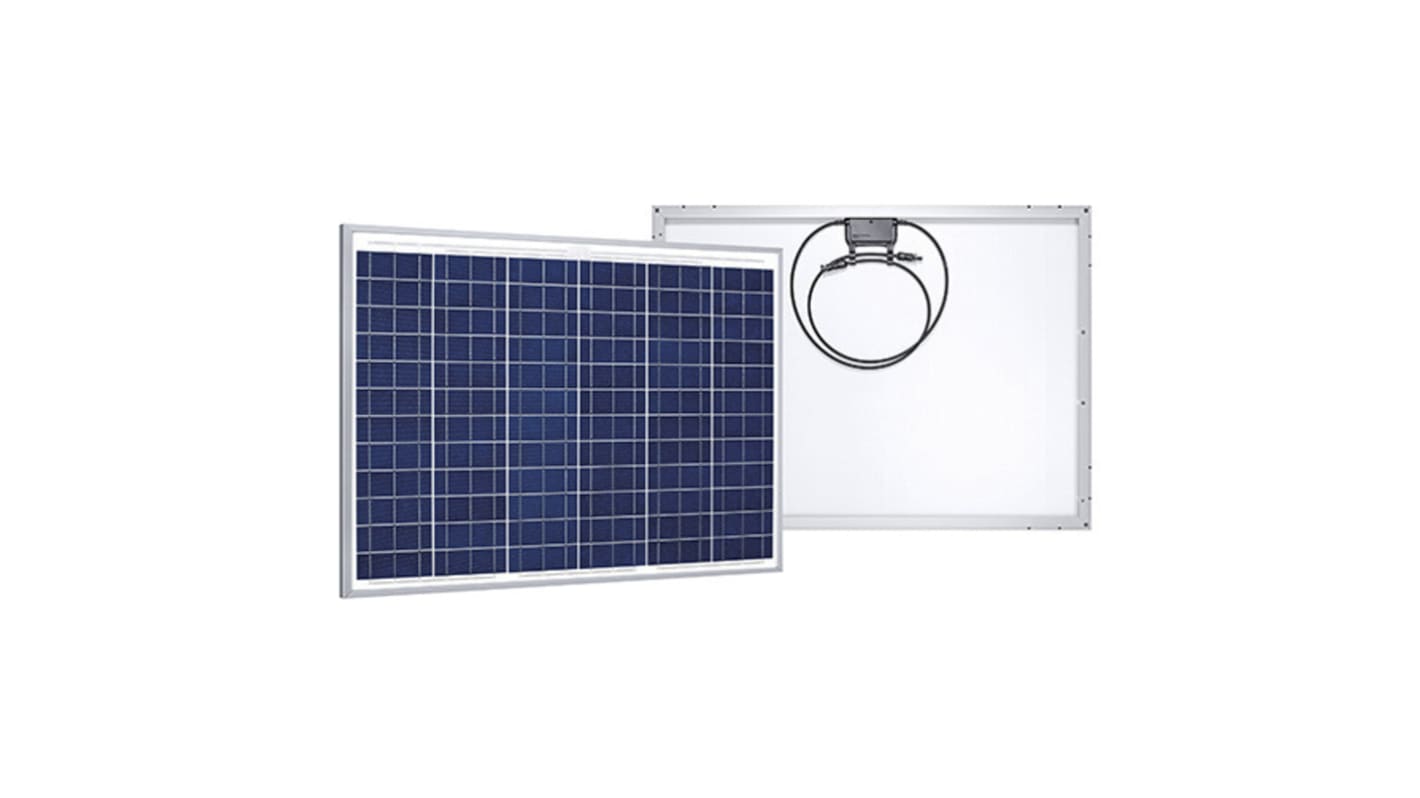

100 W, 24 VDC, Standard4, silver, 72 cells, poly, alu-frame, tempered glass, cable 900 mm / 4 mm², single cardboard. Phaesun Solar Modules are designed for industrial and professional applications using scratch resistant anodised aluminium with a twin wall frame. The junction box is the same as is used with large modules.The modules are suitable for an outdoor field installation and are user friendly. Crystalline cells are covered by a special sheet of solar glass and encapsulated in a multi-layer, high-resistance film.
Excellent manufactured
Waterproof module box
Twin wall frame
Very good and sustainable availability
A big variation of usage in different Applications and for professional usage
Waterproof module box
Twin wall frame
Very good and sustainable availability
A big variation of usage in different Applications and for professional usage
Specifications
Attribute | Value |
|---|---|
| Power Rating | 100W |
| Number of Cells | 72 |
| Peak Power | 100W |
| Dimensions | 734 x 1001 x 35mm |
| Depth | 35mm |
| Length | 734mm |
| Width | 1001mm |
| Better World Claim | Renewable energy solution |
| Better World Product | Yes |
