Martindale, Model PC105/63 Socket Tester 63A CAT III 300 V
- RS Stock No.:
- 776-2017
- Mfr. Part No.:
- PC105-63
- Manufacturer:
- Martindale
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR1,280.68
You pay
MYR1,133.95
| Units | Per Unit |
| 1 + | MYR1,133.95 |
- RS Stock No.:
- 776-2017
- Mfr. Part No.:
- PC105-63
- Manufacturer:
- Martindale
Technical data sheets
Legislation and Compliance
Product Details

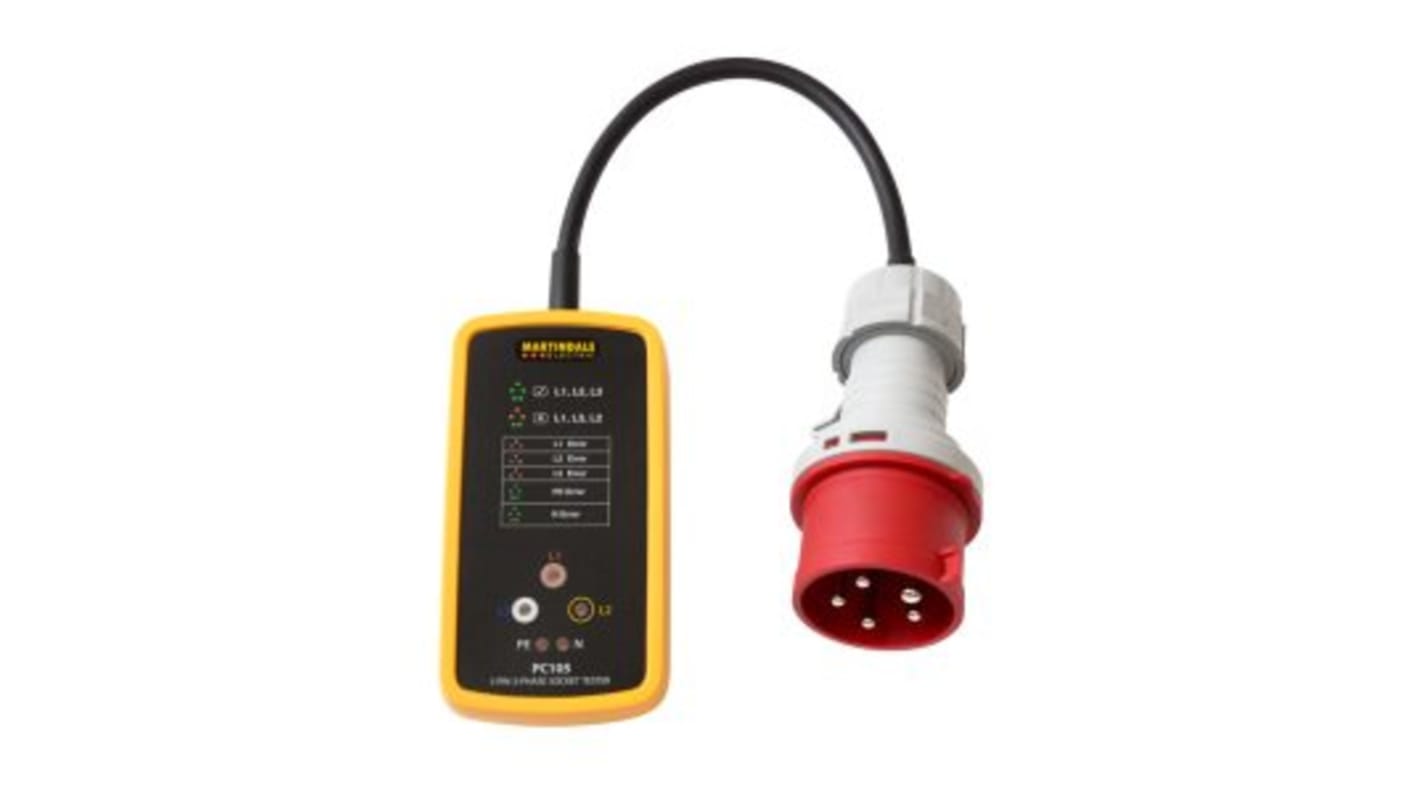

PC105 3 Phase Industrial Socket Tester
The PC105 is a 3 phase socket tester designed to quickly check for the presence of phase, phase sequence, neutral and PE in 5 pin, 16A, 32A and 63A sockets.
This device includes a five-pin socket for connection to compatible sockets which is attached via a cable to the main body of the socket tester
Once it's connected up the device will evaluate phase presence, phase sequence, neutral and PE presence and display the results as coloured LED indicators
The device includes a handy guide on the front that shows the different possible LED indications
L1, L2 and L3 are present
L1, L2 and L3 are missing, PE present
L1 error
L2 error
L3 error
PE error
N error
Once it's connected up the device will evaluate phase presence, phase sequence, neutral and PE presence and display the results as coloured LED indicators
The device includes a handy guide on the front that shows the different possible LED indications
L1, L2 and L3 are present
L1, L2 and L3 are missing, PE present
L1 error
L2 error
L3 error
PE error
N error
Specifications
Attribute | Value |
|---|---|
| Current Rating | 63A |
| Earth Loop Impedance Test | Yes |
| Number of Pins | 5 |
| Wiring Check | Yes |
| Display Type | Front Panel |
| Safety Category | CAT III 300 V |
| Power Source | Mains |
| Dimensions | 131 x 94 x 54mm |
| Weight | 292g |
| Height | 54mm |
| Length | 131mm |
| Width | 94mm |
| Model Number p | PC105/63 |
| Safety Category Level | CAT III |
| Safety Category Voltage | 300V |
