Panel Mount Slide Switch Single Pole Single Throw (SPST) Latching 350 mA @ 30 V dc Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

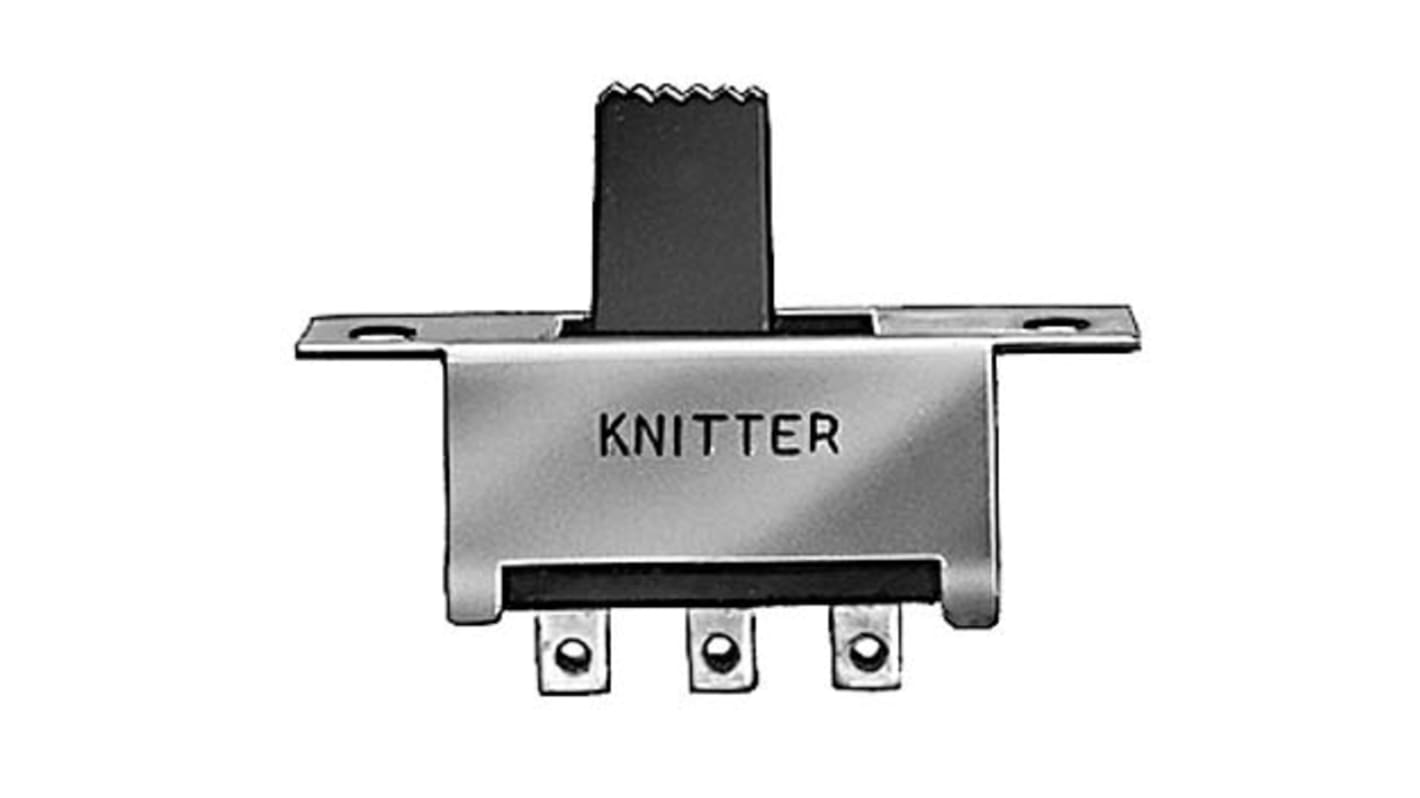

Knitter-Switch miniature Slide switches MFS Series

Product Description
Knitter MFS Miniature slide switches offer a compact design. These switches are available in shorting and non- shorting variations. The MFS range has a mechanical life of 10000 operations and boasts silver plated contacts.

Features and benefits:
10000 operations.
Silver plated contacts.
For Non-shorting 9139040, 9139043.
For shorting 9139047.

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Mounting Type Panel Mount
Switch Operation Latching
Contact Current Rating 350 mA @ 30 V dc
Terminal Type Lug
Actuator Type Slide
Length 23mm
Width 7.3mm
Depth 14.2mm
Dimensions 23 x 7.3 x 14.2mm
Contact Resistance 20mΩ
Minimum Operating Temperature -20°C
Contact Material Copper Alloy
Maximum Operating Temperature +85°C
Operating Temperature Range -20 → +85°C
Voltage Rating 30V dc
635 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 5)
MYR 8.61
units
Per unit
Per Bag*
5 - 20
MYR8.61
MYR43.05
25 - 45
MYR8.344
MYR41.72
50 - 120
MYR8.182
MYR40.91
125 - 245
MYR7.464
MYR37.32
250 +
MYR7.134
MYR35.67
*price indicative
