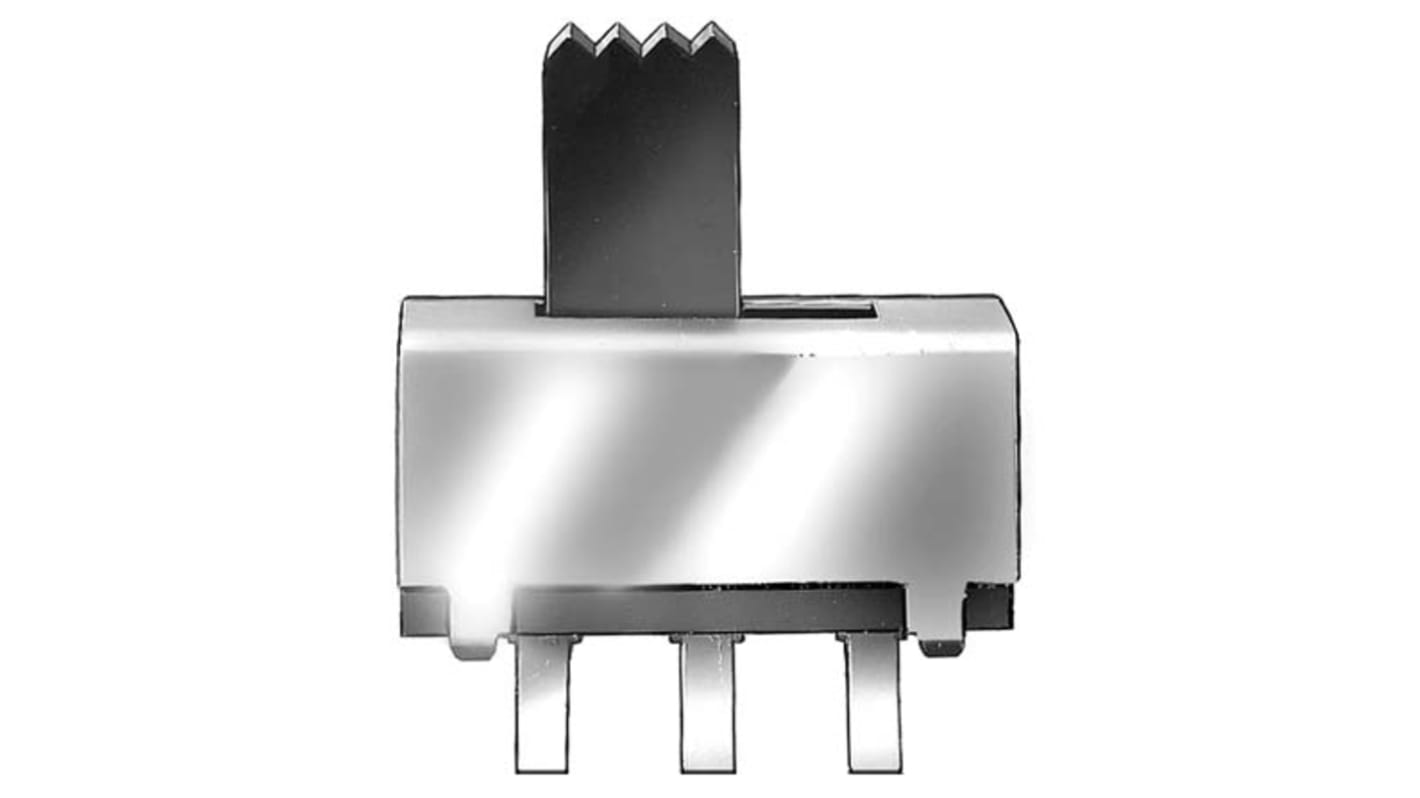

PCB Slide Switch Double Pole Single Throw (DPST) Latching 350 mA @ 30 V dc Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Knitter Switch Miniature Slide Switches - MFP Series

PCB mount, Break before make
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 350 mA @ 30 V dc
Terminal Type Pc Pin
Actuator Type Slide
Length 15mm
Width 7.5mm
Depth 14mm
Dimensions 15 x 7.5 x 14mm
Contact Resistance 20mΩ
Mechanical Life 10000Operations
Maximum Operating Temperature +85°C
Minimum Operating Temperature -20°C
Actuator Material Polybutylene Terephthalate
Contact Material Copper Alloy
Operating Temperature Range -20 → +85°C
Voltage Rating 30V dc
Temporarily out of stock - back order for despatch 09/01/2020, delivery within 4 working days from despatch date
Price Each (In a Bag of 5)
MYR 2.114
units
Per unit
Per Bag*
5 - 20
MYR2.114
MYR10.57
25 - 45
MYR2.04
MYR10.20
50 - 120
MYR1.96
MYR9.80
125 - 245
MYR1.866
MYR9.33
250 +
MYR1.676
MYR8.38
*price indicative
