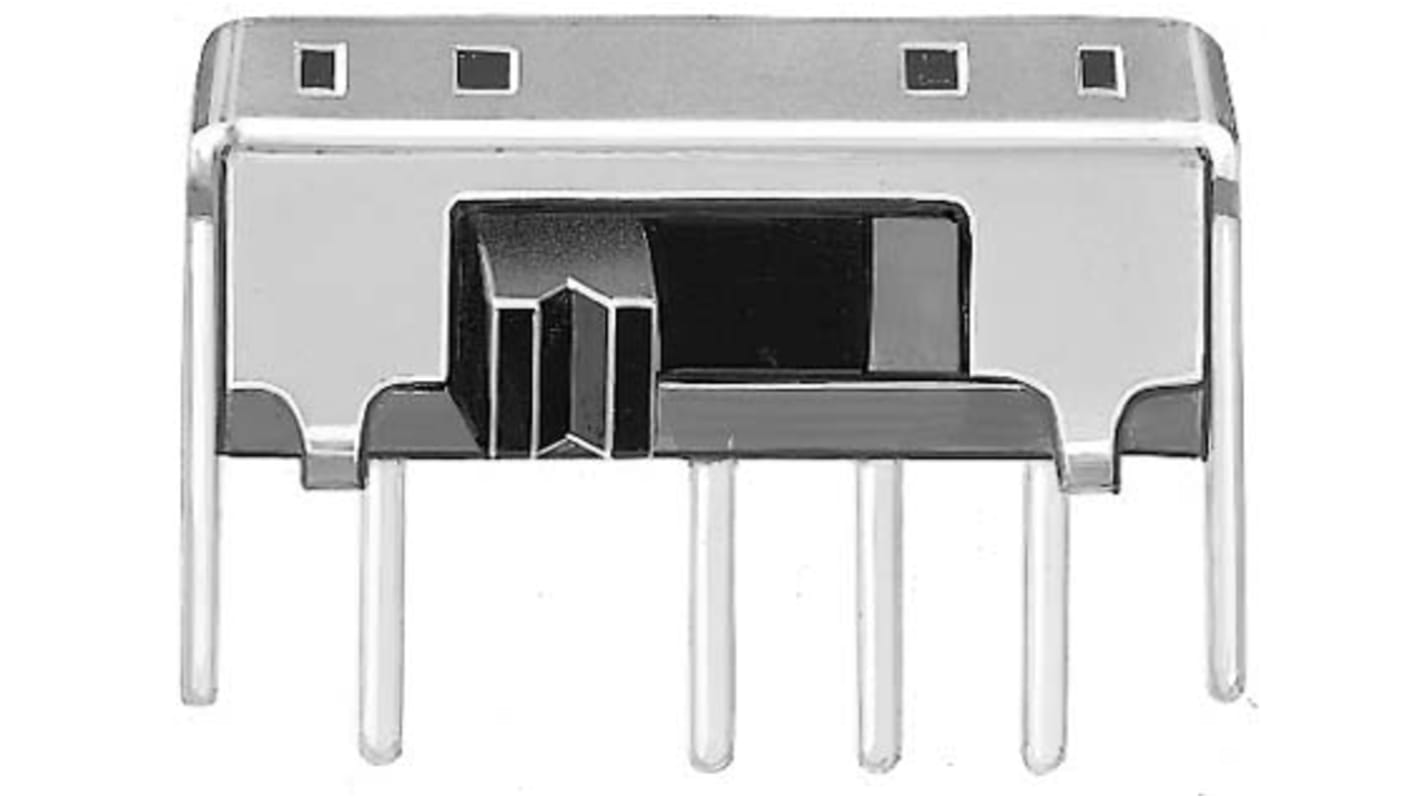

PCB Slide Switch On-On-On 100 mA @ 12 V dc Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Knitter Switch Miniature Slide Switches - MFP Series

PCB mount, Break before make
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.

Specifications
Attribute Value
Mounting Type PCB
Switch Operation On-On-On
Contact Current Rating 100 mA @ 12 V dc
Terminal Type Pc Pin
Actuator Type Slide
Length 12.6mm
Width 8.7mm
Depth 6.8mm
Dimensions 12.6 x 8.7 x 6.8mm
Contact Resistance 20mΩ
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Contact Material Phosphor Bronze
Operating Temperature Range -25 → +85°C
Actuator Material Polyamide
Voltage Rating 12V dc
295 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 5)
MYR 2.664
units
Per unit
Per Bag*
5 - 20
MYR2.664
MYR13.32
25 - 45
MYR2.532
MYR12.66
50 - 120
MYR2.446
MYR12.23
125 - 245
MYR2.346
MYR11.73
250 +
MYR2.294
MYR11.47
*price indicative
