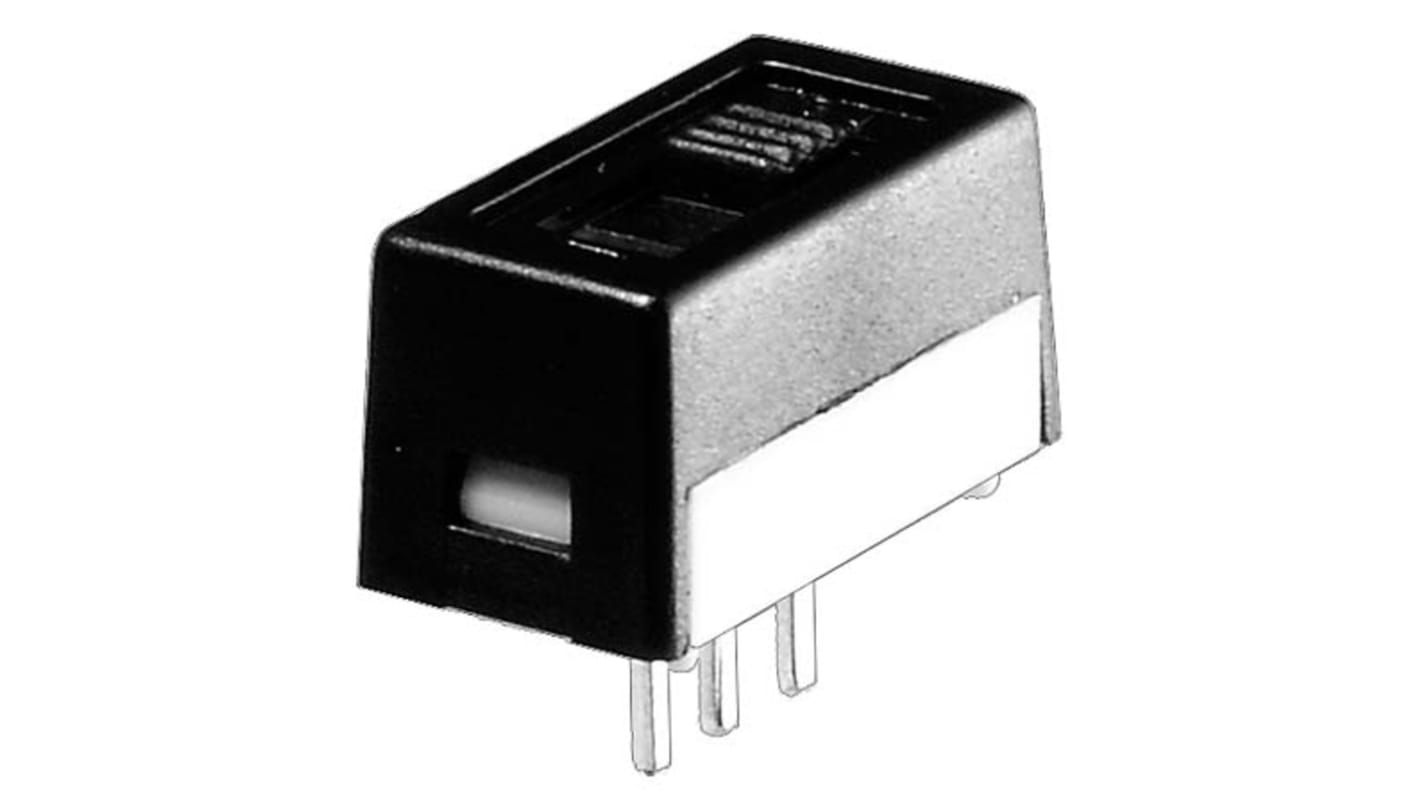

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc
Terminal Type Pc Pin
Actuator Type Slide
Length 14mm
Width 10.1mm
Depth 7.7mm
Dimensions 14 x 10.1 x 7.7mm
Contact Resistance 50mΩ
Mechanical Life 20000Operations
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Actuator Material Nylon
Contact Material Copper Alloy
Minimum Operating Temperature -40°C
Voltage Rating 28 V dc, 120 V ac, 250 V ac
Temporarily out of stock - back order for despatch 14/02/2020, delivery within 4 working days from despatch date
Price Each
MYR 14.32
units
Per unit
1 - 9
MYR14.32
10 - 24
MYR13.85
25 - 49
MYR12.96
50 - 99
MYR12.23
100 +
MYR11.79
