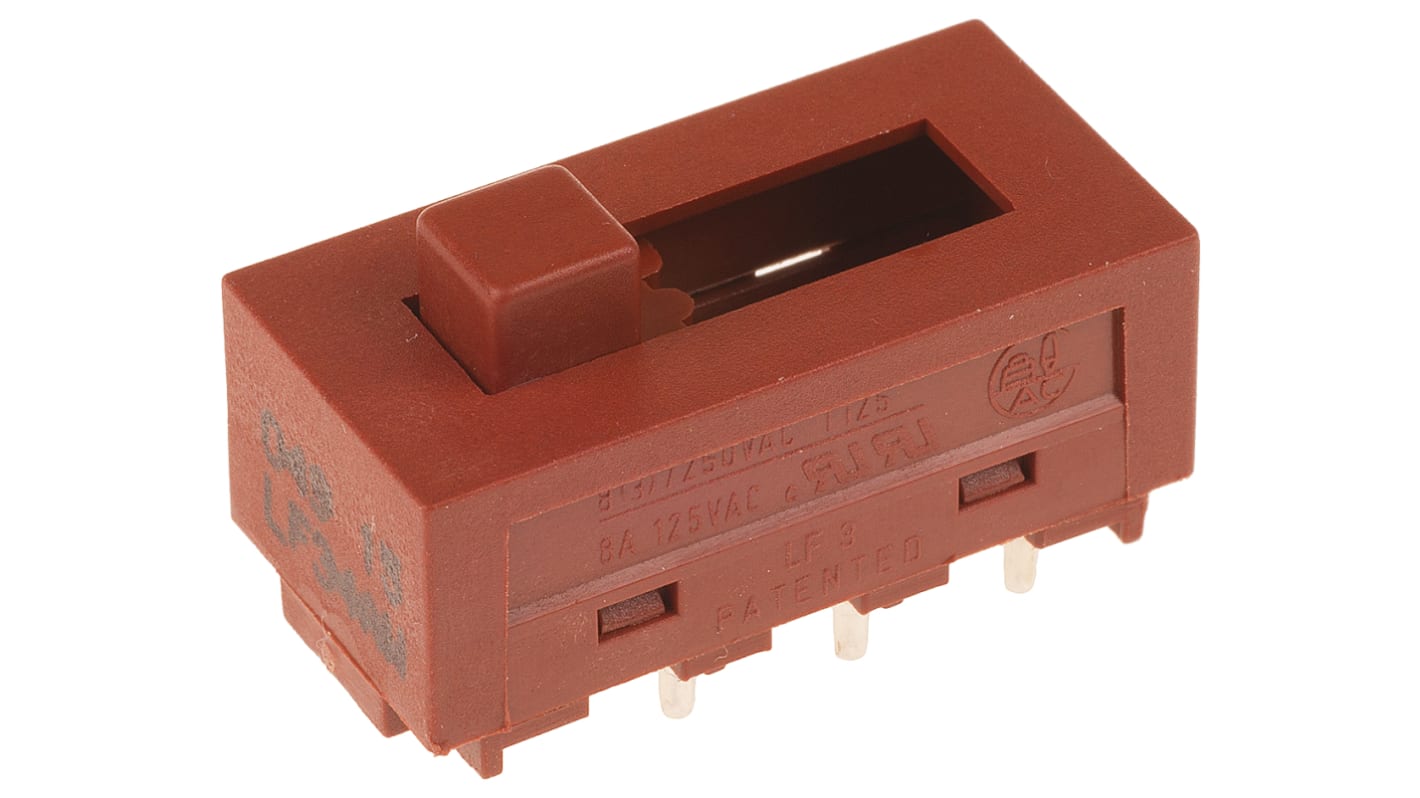

Molveno Panel Mount Slide Switch SPST-2NC 8 A Toggle
- RS Stock No.:
- 863-3557
- Mfr. Part No.:
- LF34A3000W
- Manufacturer:
- Molveno
165 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 5)
MYR7.016
| Units | Per Unit | Per Bag* |
| 5 - 1245 | MYR7.016 | MYR35.08 |
| 1250 - 2495 | MYR6.93 | MYR34.65 |
| 2500 - 4995 | MYR6.734 | MYR33.67 |
| 5000 + | MYR6.434 | MYR32.17 |
| *price indicative | ||
- RS Stock No.:
- 863-3557
- Mfr. Part No.:
- LF34A3000W
- Manufacturer:
- Molveno
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Molveno LF Series
The ENEC 8A electrical rating that these Molveno slide switches carry make them an ideal solution for applications such as cooker hoods and hair dryers.
2 or 3 position PCB mount available
No of operations; 10000 under full load min.
750° GWIT compliant
No of operations; 10000 under full load min.
750° GWIT compliant
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST-2NC |
| Mounting Type | Panel Mount |
| Contact Current Rating | 8 A |
| Terminal Type | Tab |
| Actuator Type | Toggle |
| Length | 30mm |
| Width | 14.9mm |
| Depth | 16.4mm |
| Dimensions | 30 x 16.4 x 14.9mm |
| Mechanical Life | 10000Cycles |
| Operating Temperature Range | Maximum of +125°C |
| Maximum Operating Temperature | +125°C |
