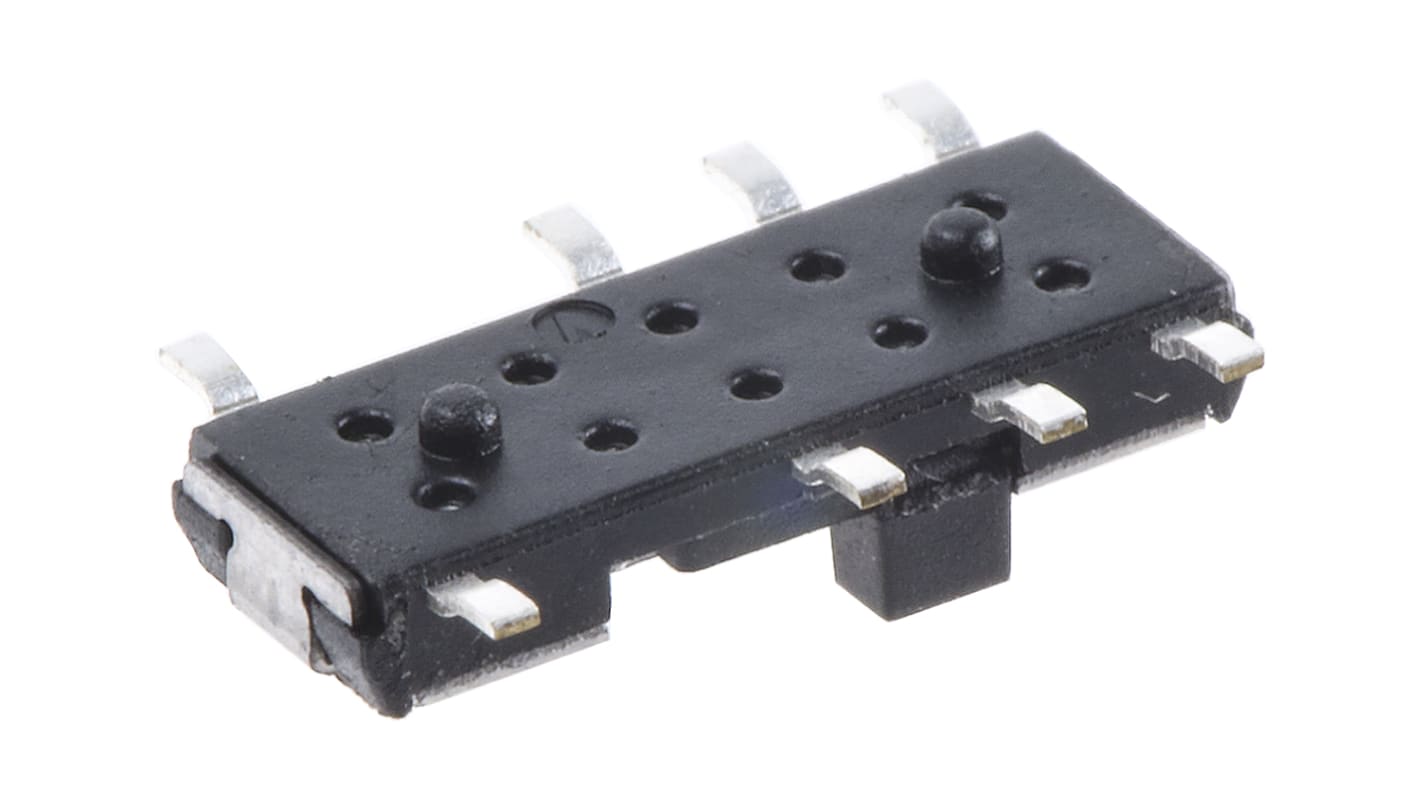

PCB Slide Switch DP3T On-On-On 100 mA Slide

  • RS Stock No. 793-1513
  • Mfr. Part No. AYZ0203AGRLC
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

C&K - AYZ Series Miniature Slide Switches

AYZ Series switches from C&K. Typical applications include telecommunication products and test and measurement equipment

Low profile
Single & double pole models
Double & triple throw models
2-position PCB mount
Mechanical life; 10000 operations.
Glass filled nylon housing and actuator

Specifications
Attribute Value
Contact Configuration DP3T
Mounting Type PCB
Switch Operation On-On-On
Contact Current Rating 100 mA
Terminal Type PC Terminal
Actuator Type Slide
Contact Resistance 80mΩ
Mechanical Life 10000Operations
Maximum Operating Temperature +60°C
Operating Temperature Range -10 → +60°C
Actuator Material Glass Fibre Reinforced Nylon
Minimum Operating Temperature -10°C
Contact Material Silver Plated Brass (Fixed Contact), Silver Plated Copper Alloy (Movable Contact)
308 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 4.21
units
Per unit
1 - 49
MYR4.21
50 - 99
MYR4.12
100 - 999
MYR4.05
1000 - 2999
MYR3.56
3000 +
MYR3.30
