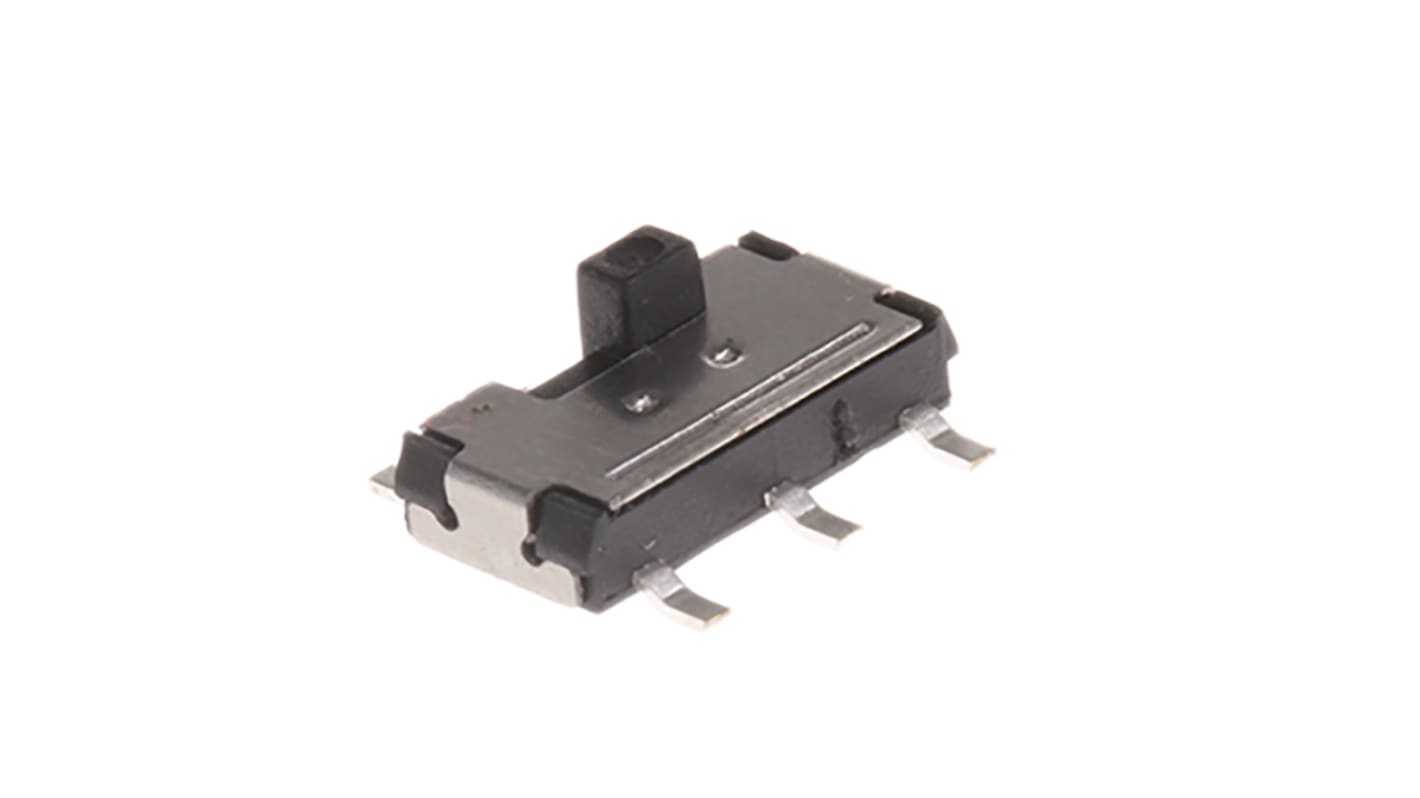

C & K PCB Slide Switch DPDT On-On-On 100 mA @ 12 V dc Slide
- RS Stock No.:
- 793-1504
- Mfr. Part No.:
- AYZ0202AGRLC
- Manufacturer:
- C & K
183 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR6.06
| Units | Per Unit |
| 1 - 99 | MYR6.06 |
| 100 - 999 | MYR5.93 |
| 1000 - 2999 | MYR5.76 |
| 3000 + | MYR5.60 |
- RS Stock No.:
- 793-1504
- Mfr. Part No.:
- AYZ0202AGRLC
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details
C&K - AYZ Series Miniature Slide Switches
AYZ Series switches from C&K. Typical applications include telecommunication products and test and measurement equipment
Low profile
Single & double pole models
Double & triple throw models
2-position PCB mount
Mechanical life; 10000 operations.
Glass filled nylon housing and actuator
Single & double pole models
Double & triple throw models
2-position PCB mount
Mechanical life; 10000 operations.
Glass filled nylon housing and actuator
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | PCB |
| Switch Operation | On-On-On |
| Contact Current Rating | 100 mA @ 12 V dc |
| Terminal Type | PC Terminal |
| Actuator Type | Slide |
| Length | 7.2mm |
| Width | 4.5mm |
| Depth | 1.5mm |
| Dimensions | 7.2 x 4.5 x 1.5mm |
| Contact Resistance | 80mΩ |
| Mechanical Life | 10000Operations |
| Operating Temperature Range | -10 → +60°C |
| Contact Material | Silver Plated Brass (Fixed Contact), Silver Plated Copper Alloy (Movable Contact) |
| Minimum Operating Temperature | -10°C |
| Actuator Material | Glass Fibre Reinforced Nylon |
| Maximum Operating Temperature | +60°C |
