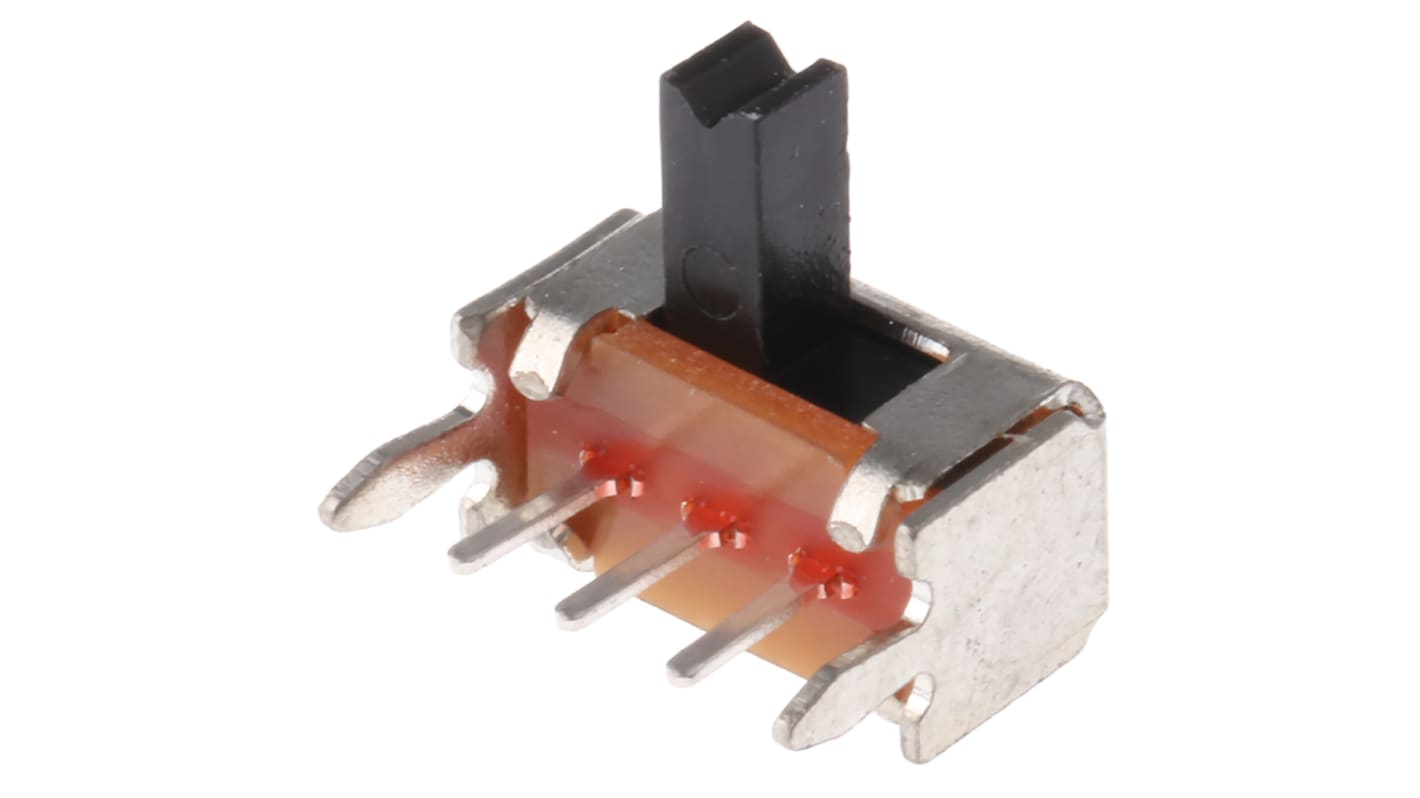

Through Hole Slide Switch Single Pole Double Throw (SPDT) Latching 100 mA@ 12 V dc Slide

  • RS Stock No. 787-4855
  • Mfr. Part No. OS102011MA1QN1
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

C&K - OS Series Slide Switches

The OS Series miniature slide switches from C&K Components are compact and robust. Available with either straight or right angle actuation, the OS Series slide switches feature sturdy PC terminals for secure mounting. These two position PCB mounted switches are typically use in test and measurement equipment, computer peripheral devices and general electronic consumer products.

Features and Benefits:

• Non- shorting contacts
• No of operations: 10000 under full load min.
• Housing Material: Tin Plated steel,
• Actuator Material: POM

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type Through Hole
Switch Operation Latching
Contact Current Rating 100 mA@ 12 V dc
Terminal Type PC Terminal
Actuator Type Slide
Length 8.6mm
Width 4.4mm
Depth 4.7mm
Dimensions 8.6 x 4.4 x 4.7mm
Contact Resistance 20mΩ
Mechanical Life 10000Cycles
Maximum Operating Temperature +70°C
Actuator Material Polyacetal
Contact Material Silver Plated Brass
Operating Temperature Range -10 → +70°C
Minimum Operating Temperature -10°C
1818 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2.70
units
Per unit
1 - 24
MYR2.70
25 - 49
MYR2.58
50 - 99
MYR2.37
100 - 249
MYR2.16
250 +
MYR2.09
