- RS Stock No.:
- 734-7274
- Manufacturer:
- RS PRO
219 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR18.62
Units | Per Unit |
1 - 4 | MYR18.62 |
5 + | MYR15.33 |
- RS Stock No.:
- 734-7274
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details

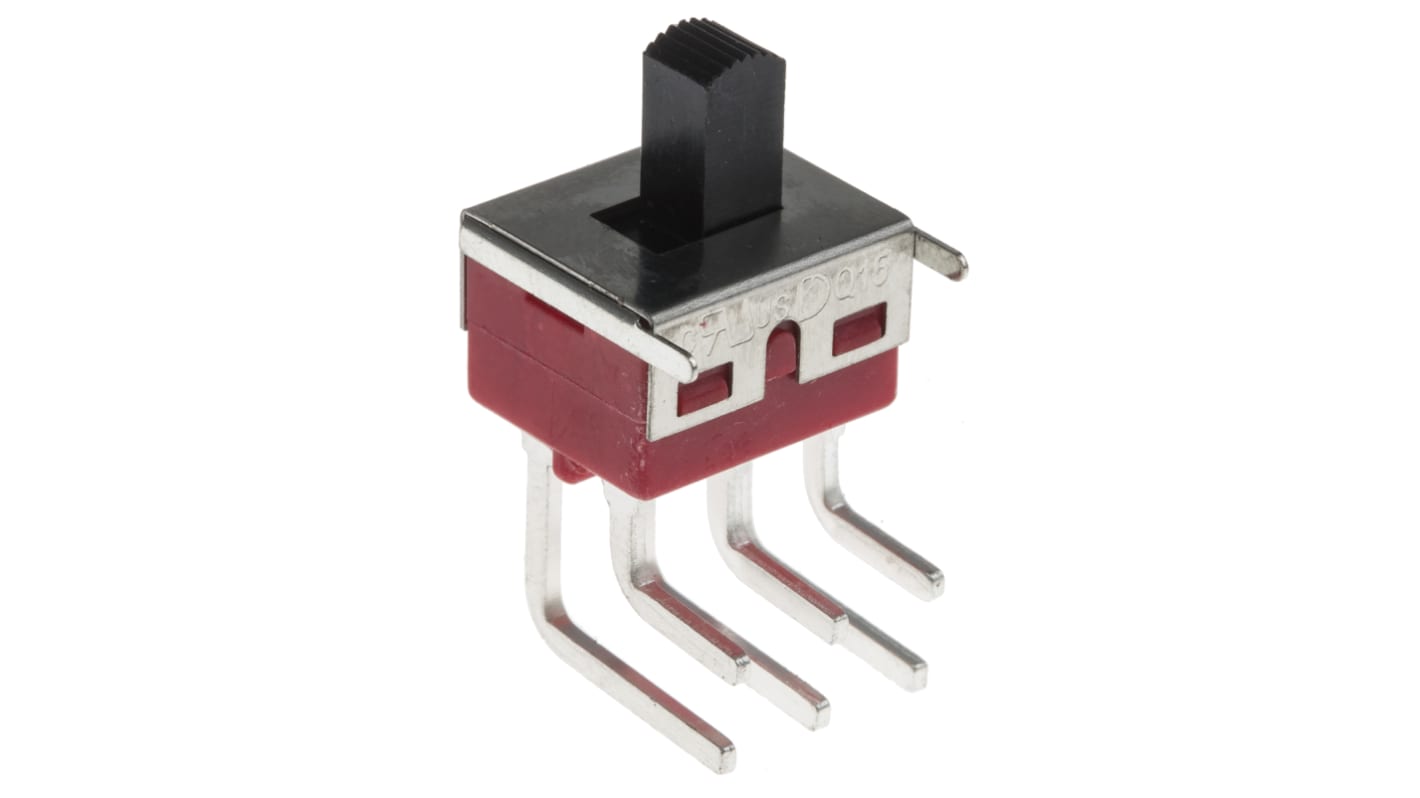

RS - Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black nylon actuator, DAP case and stainless steel housing
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator, DAP case and stainless steel housing
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 5 A @ 28 V dc |
Terminal Type | Through Hole |
Actuator Type | Side |
Length | 12.7mm |
Width | 11.43mm |
Dimensions | 12.7 x 11.43mm |
Contact Resistance | 10mΩ |
Voltage Rating | 28V dc |
Mechanical Life | 30000 次循环 |
Operating Temperature Range | -30 → +85°C |
Maximum Operating Temperature | +85°C |
Actuator Material | Nylon |
Minimum Operating Temperature | -30°C |
Contact Material | Silver Plated Brass |
