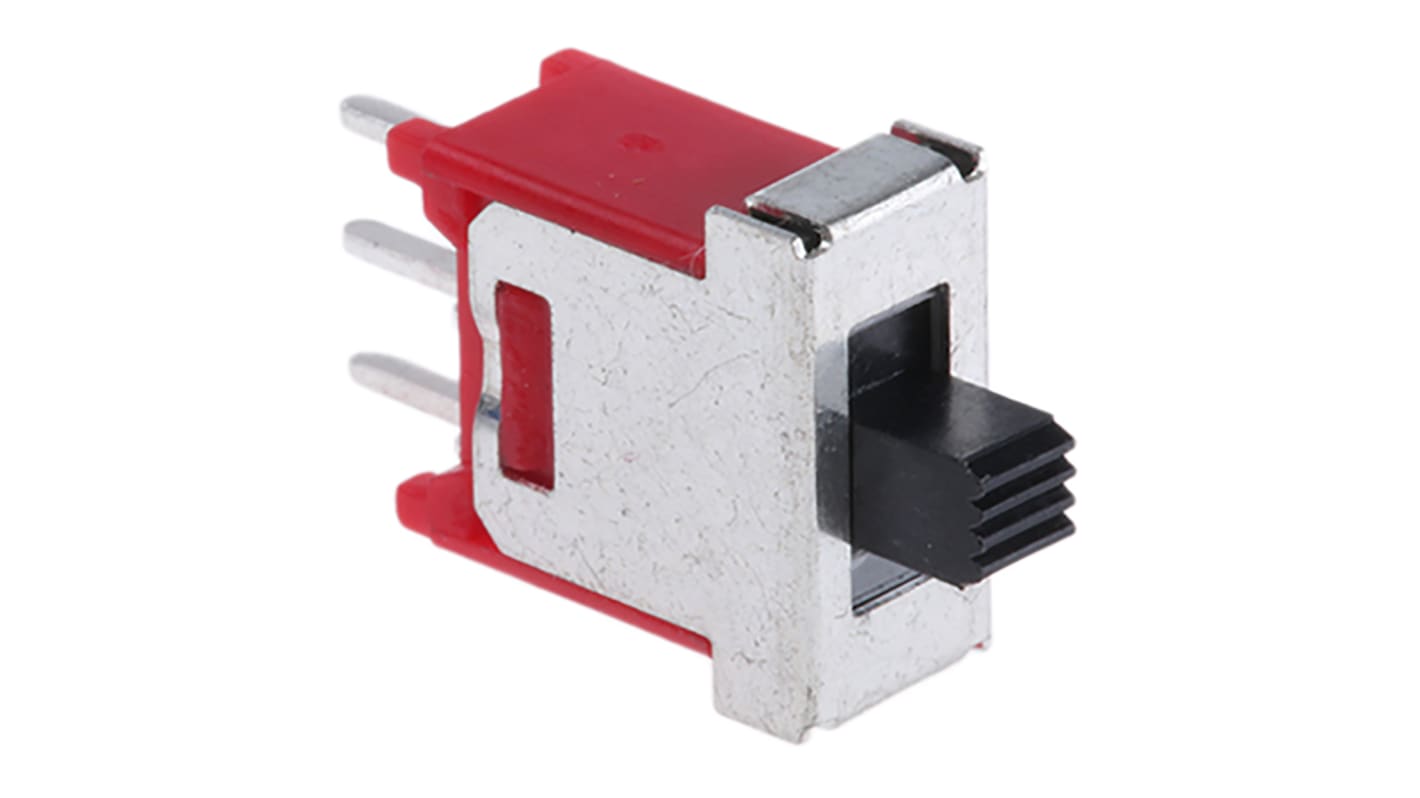

RS PRO PCB Slide Switch SPDT On-Off-On 3 A @ 120 V ac Top
- RS Stock No.:
- 734-7268
- Manufacturer:
- RS PRO
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
89 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR17.62
| Units | Per Unit |
| 1 - 4 | MYR17.62 |
| 5 + | MYR14.51 |
- RS Stock No.:
- 734-7268
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
RS - Ultra Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black nylon actuator, DAP case and tin plated brass housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator, DAP case and tin plated brass housing
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | On-Off-On |
| Contact Current Rating | 3 A @ 120 V ac |
| Terminal Type | Through Hole |
| Actuator Type | Top |
| Length | 10.16mm |
| Width | 5.08mm |
| Depth | 9.2mm |
| Dimensions | 10.16 x 5.08 x 9.2mm |
| Contact Resistance | 20mΩ |
| Voltage Rating | 120V ac |
| Mechanical Life | 30000Cycles |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
| Actuator Material | Nylon |
| Contact Material | Silver Plated Copper Alloy |
| Minimum Operating Temperature | -30°C |
