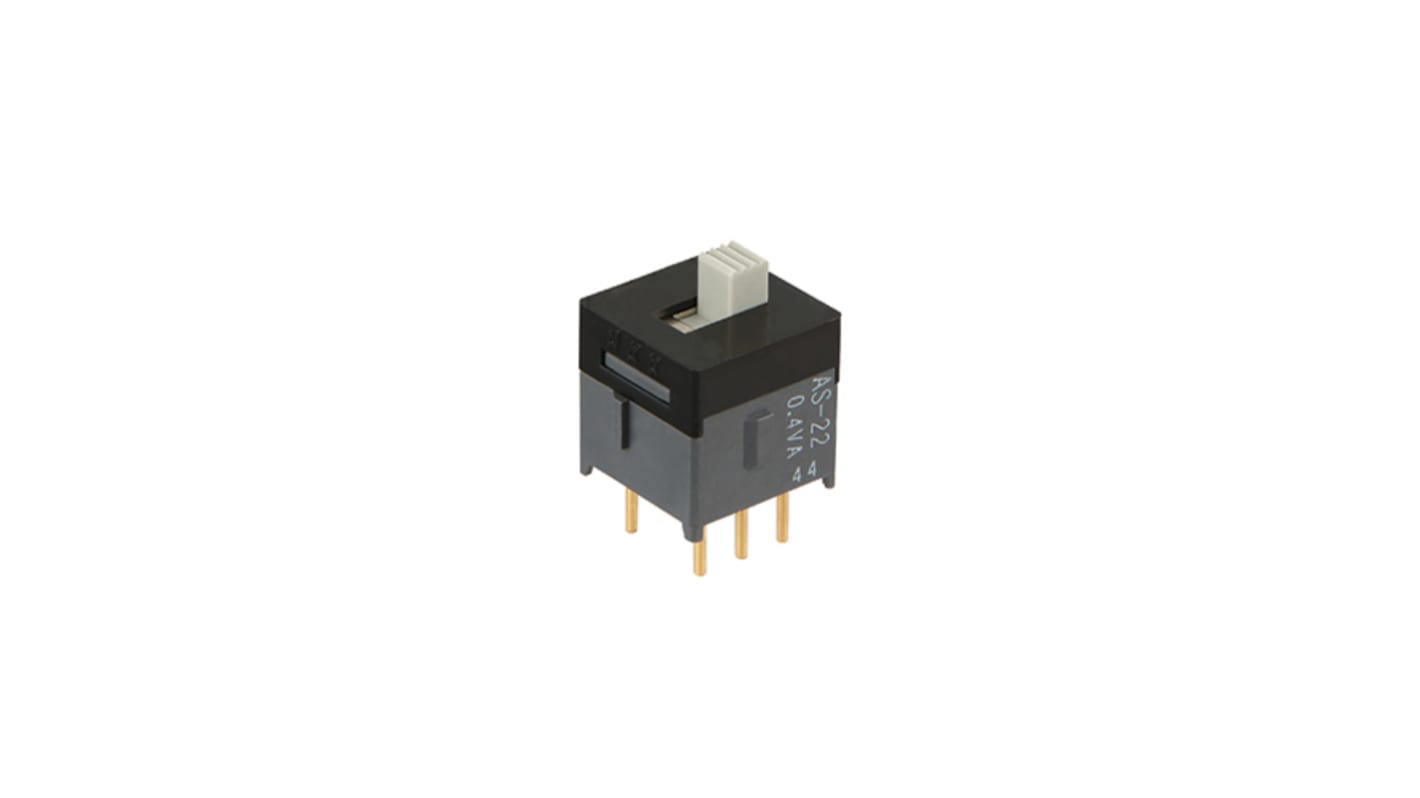

NKK Switches PCB Slide Switch DPDT Latching 100 mA @ 28 V ac/dc Slide
- RS Stock No.:
- 354-3752
- Mfr. Part No.:
- AS-22AP
- Manufacturer:
- NKK Switches
646 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR23.26
| Units | Per Unit |
| 1 - 99 | MYR23.26 |
| 100 - 249 | MYR22.79 |
| 250 - 499 | MYR22.09 |
| 500 + | MYR21.43 |
- RS Stock No.:
- 354-3752
- Mfr. Part No.:
- AS-22AP
- Manufacturer:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Subminiature Gold Contact AS Series
Very compact structure, less than 9.1mm in height excluding actuator
Pitch between terminals 2.54mm x n
Anti-static resin used at head of main body
High contact reliability maintained by U.S. patent contact mechanism
Certification: IECQ
Pitch between terminals 2.54mm x n
Anti-static resin used at head of main body
High contact reliability maintained by U.S. patent contact mechanism
Certification: IECQ
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA @ 28 V ac/dc |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
| Mechanical Life | 50000Operations |
| Actuator Material | Glass Fibre Reinforced PA |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Plated Phosphor Bronze |
| Minimum Operating Temperature | -30°C |
