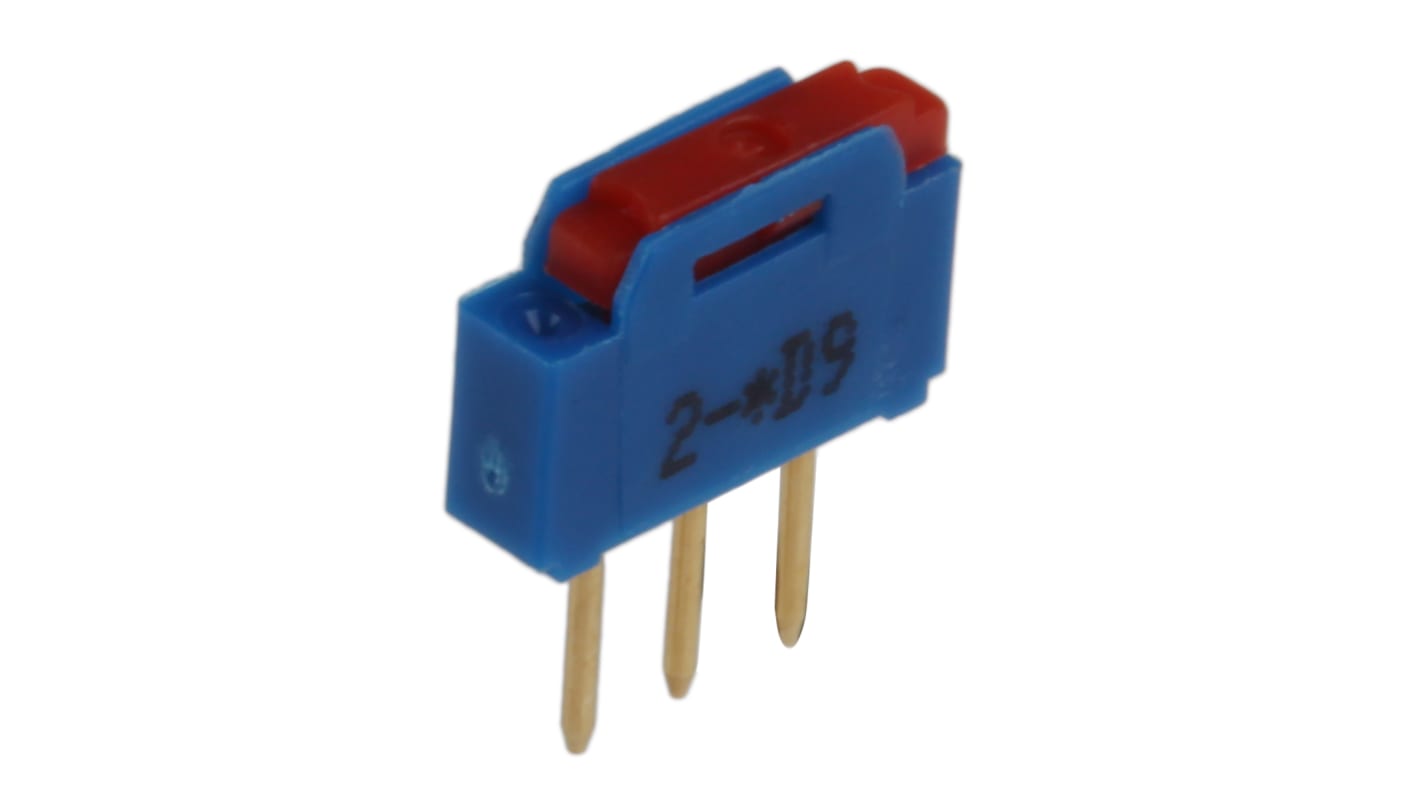

APEM PCB Slide Switch SPDT Latching 500 mA V ac @ 12 Slide
- RS Stock No.:
- 181-0038
- Mfr. Part No.:
- NK236
- Manufacturer:
- APEM
405 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR7.192
| Units | Per Unit | Per Pack* |
| 5 - 45 | MYR7.192 | MYR35.96 |
| 50 - 120 | MYR6.99 | MYR34.95 |
| 125 - 245 | MYR6.702 | MYR33.51 |
| 250 + | MYR6.516 | MYR32.58 |
| *price indicative | ||
- RS Stock No.:
- 181-0038
- Mfr. Part No.:
- NK236
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
Product Details
Flush actuators series NK236
Miniature single-pole slide switch with flush actuator
2.54mm PCB mounting pitch
End-stackable body style
Gold plated contacts
Ideal for replacing pin and jumper switches
2.54mm PCB mounting pitch
End-stackable body style
Gold plated contacts
Ideal for replacing pin and jumper switches
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 500 mA V ac @ 12 |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Length | 10mm |
| Width | 2.6mm |
| Depth | 6.5mm |
| Dimensions | 10 x 6.5 x 2.6mm |
| Contact Resistance | 20mΩ |
| Voltage Rating | 12V |
| Actuator Material | Glass Fibre Reinforced PA |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Plated Nickel |
| Minimum Operating Temperature | -40°C |
