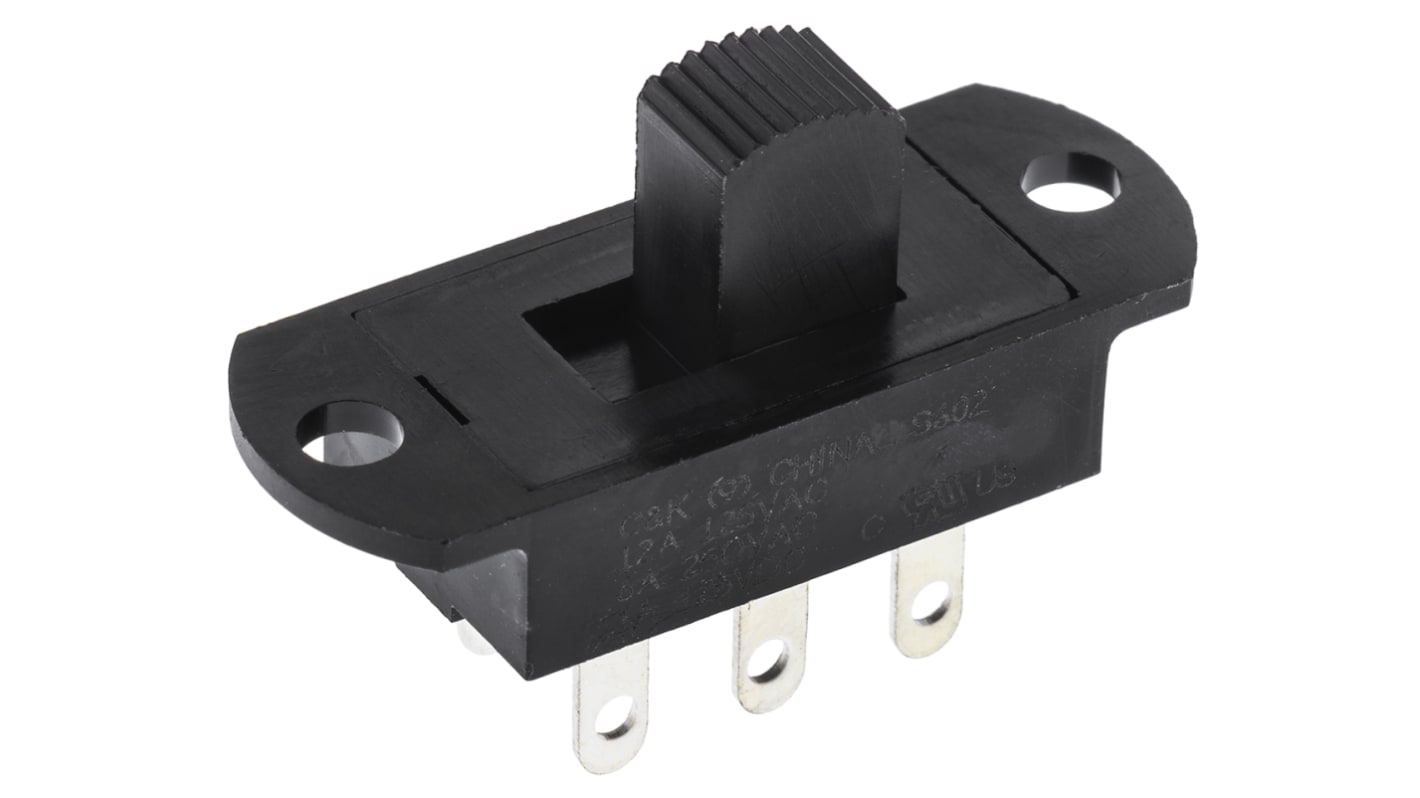

C & K Panel Mount Slide Switch DPDT 12 A @ 125 V ac Slide
- RS Stock No.:
- 175-9703
- Mfr. Part No.:
- S602031SS03Q
- Manufacturer:
- C & K
15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
44 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR22.36
| Units | Per Unit |
| 1 - 99 | MYR22.36 |
| 100 - 249 | MYR21.74 |
| 250 - 499 | MYR20.84 |
| 500 + | MYR20.27 |
- RS Stock No.:
- 175-9703
- Mfr. Part No.:
- S602031SS03Q
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CR
Product Details
C&K - S Series Slide Switches
The S series slide switches are designed for use in a wide variety of applications including portable tools, small appliances and floor care products. They feature a high current rating of 6A at 250 Vac yet are still manufactured in a compact housing.
Approvals
UL; CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | Panel Mount |
| Contact Current Rating | 12 A @ 125 V ac |
| Terminal Type | Solder |
| Actuator Type | Slide |
| Contact Resistance | 10mΩ |
| Operating Temperature Range | -30 → +65°C |
| Minimum Operating Temperature | -30°C |
| Actuator Material | Nylon |
| Maximum Operating Temperature | +65°C |
| Contact Material | Silver Plated Copper |
