- RS Stock No.:
- 161-7340
- Mfr. Part No.:
- 1101M2S3CQE2
- Manufacturer:
- C & K
1 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
408 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each
MYR26.05
units | Per Unit |
1 - 99 | MYR26.05 |
100 - 249 | MYR25.50 |
250 - 499 | MYR24.73 |
500 + | MYR24.00 |
- RS Stock No.:
- 161-7340
- Mfr. Part No.:
- 1101M2S3CQE2
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details

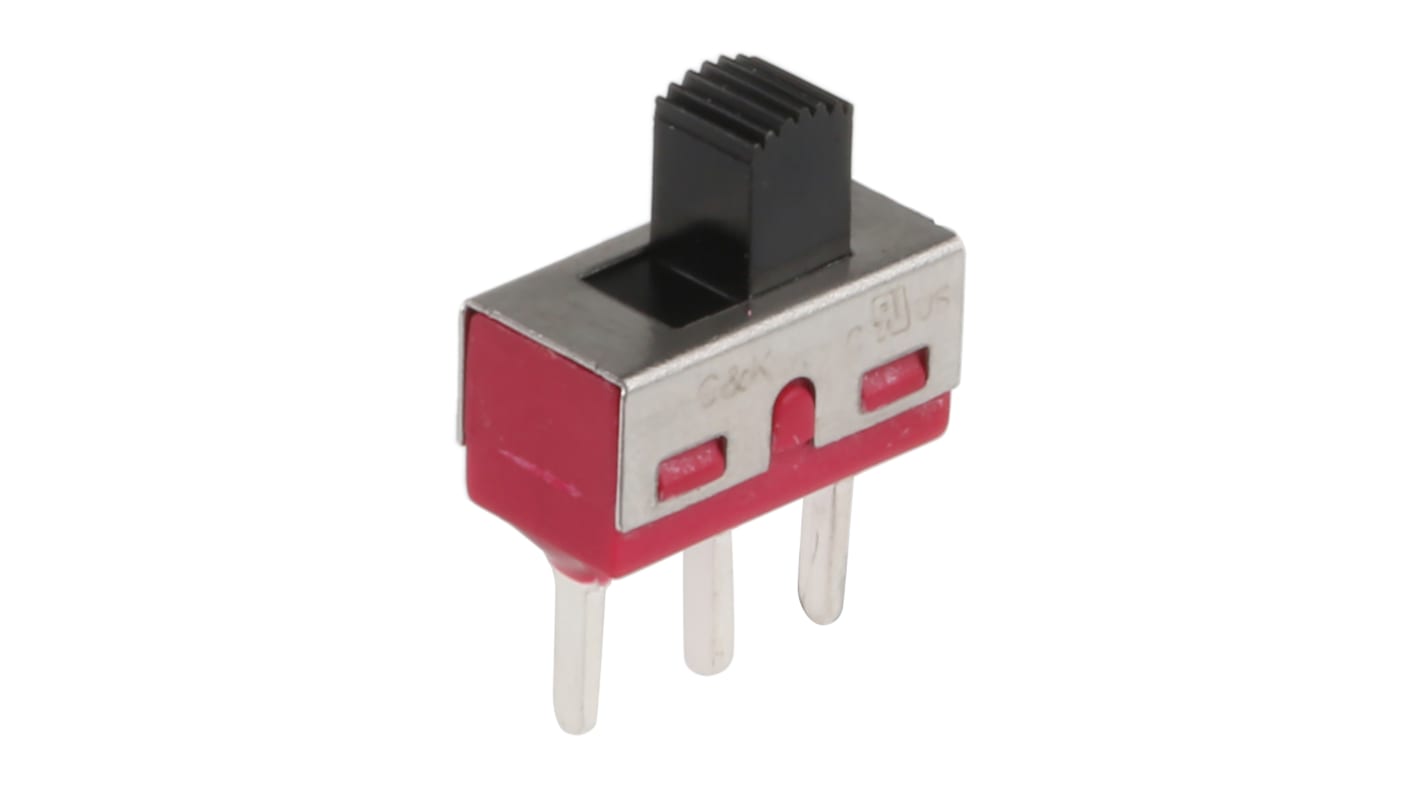

C&K - 1000 Series Slide Switches
C&K Series 1000 miniature slide switches have epoxy sealed terminals which makes them suitable for bottom wash cleaning. They are designed for use in a wide variety of applications including test and measurement equipment, telecommunications and computer peripherals.
Operating temperature range: -30 to +65°C
No of operations; 40000
Nylon actuator and Diallyl Phthalate (UL 94V-0) case
No of operations; 40000
Nylon actuator and Diallyl Phthalate (UL 94V-0) case
Approvals
UL; CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 6 A @ 120 V ac, 6 A @ 28 V dc |
Terminal Type | Through Hole |
Actuator Type | Slide |
Length | 12.7mm |
Width | 6.6mm |
Depth | 11.43mm |
Dimensions | 12.7 x 6.6 x 11.43mm |
Contact Resistance | 10mΩ |
Operating Temperature Range | -30 → +65°C |
Contact Material | Silver Plated Copper Alloy |
Actuator Material | Nylon |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +65°C |
