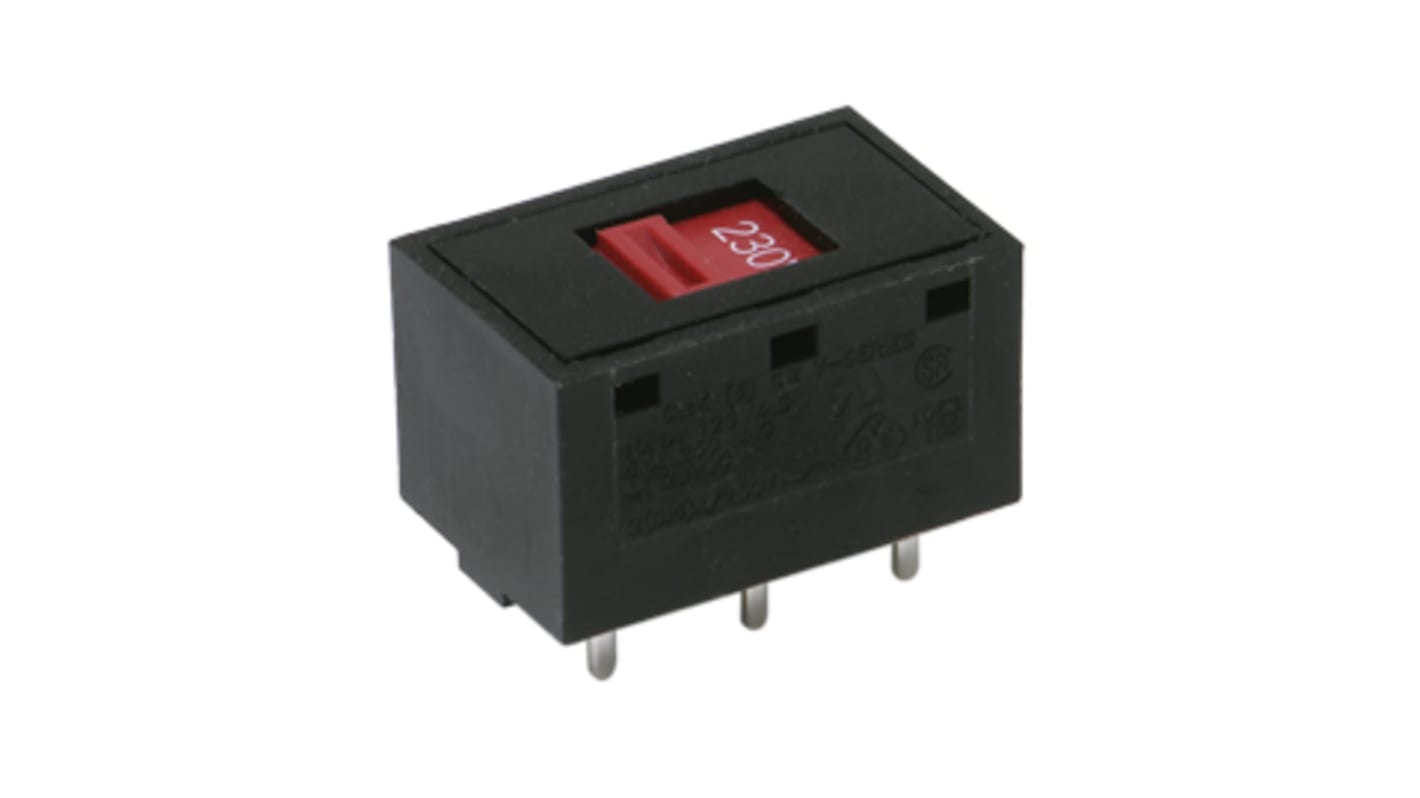

C & K PCB Slide Switch DPDT Latching 10 A @ 125 V ac, 4 A @ 30 V dc Slot
- RS Stock No.:
- 161-3060
- Mfr. Part No.:
- V80212MA08Q
- Manufacturer:
- C & K
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR33.66
| Units | Per Unit |
| 1 + | MYR33.66 |
- RS Stock No.:
- 161-3060
- Mfr. Part No.:
- V80212MA08Q
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details
C&K Slide Switches Featuring ultra-miniature, micro, miniature, standard, industrial and power versions. C&K’s 16 series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods, headphones or HVAC controls, portable speakers or laptops, audio equipment or alarms.
Ratings up to 10 AMPS
Snap-in panel and PC mounting
Actuators with screwdriver slot
Quick connect terminals available
Snap-in panel and PC mounting
Actuators with screwdriver slot
Quick connect terminals available
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 10 A @ 125 V ac, 4 A @ 30 V dc |
| Terminal Type | PCB Pin |
| Actuator Type | Slot |
| Length | 26.19mm |
| Width | 16.5mm |
| Depth | 15.75mm |
| Dimensions | 26.19 x 16.5 x 15.75mm |
| Contact Resistance | 10mΩ |
| Voltage Rating | 30 V dc, 250V ac |
| Actuator Material | Polyester |
| Maximum Operating Temperature | +85°C |
| Contact Material | Copper |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
