- RS Stock No.:
- 161-2980
- Mfr. Part No.:
- JS203011JCQN
- Manufacturer:
- C & K
425 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR2.884
Units | Per Unit | Per Pack* |
5 + | MYR2.884 | MYR14.42 |
*price indicative |
- RS Stock No.:
- 161-2980
- Mfr. Part No.:
- JS203011JCQN
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

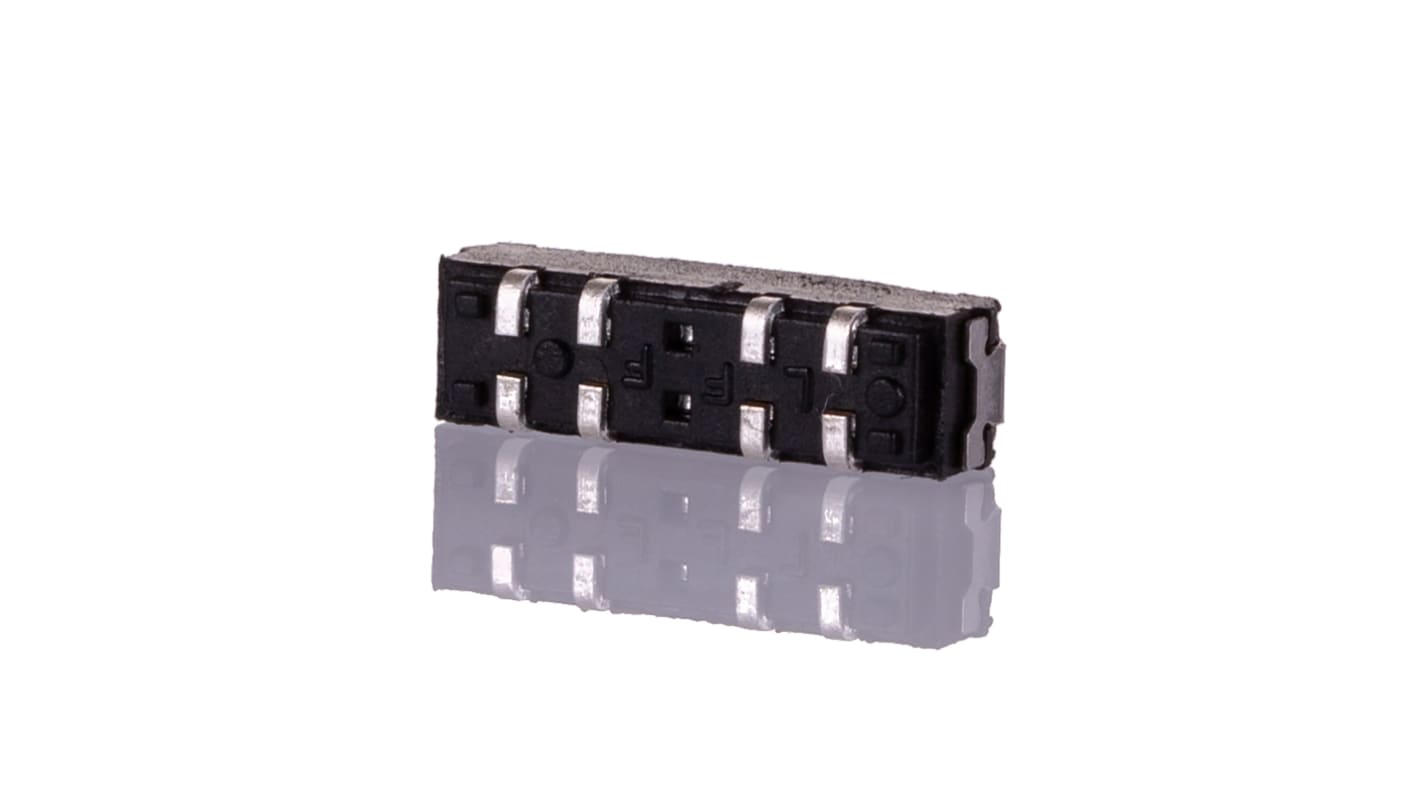

C&K Slide Switch
The C&K slide switch is a PCB mount double pole ON-ON-ON (DP3T) switch. It is a mechanical slider used to control current flow in a circuit. This is a latching switch with 300mA current rating and 13mm length.
Features and Benefits
5.5mm depth
500VAC dielectric strength
Copper alloy and silver plate is used as contact material
Less space required
Service temperature ranges between -40°C and 85°C
500VAC dielectric strength
Copper alloy and silver plate is used as contact material
Less space required
Service temperature ranges between -40°C and 85°C
Applications
Telecommunication
Computer peripherals
Instrumentation
Thermostat select switch
Telephone and cable modems
Test and measurement equipment
Computer peripherals
Instrumentation
Thermostat select switch
Telephone and cable modems
Test and measurement equipment
Certifications
IP57 rated
Specifications
Attribute | Value |
---|---|
Contact Configuration | DP3T |
Mounting Type | Surface Mount |
Switch Operation | On-On-On |
Contact Current Rating | 300 mA |
Terminal Type | Solder |
Actuator Type | Slide |
Length | 13mm |
Width | 3.6mm |
Depth | 5.5mm |
Dimensions | 13 x 3.6 x 5.5mm |
Contact Resistance | 70mΩ |
Voltage Rating | 6V dc |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Contact Material | Copper Alloy |
Operating Temperature Range | -40 → +85°C |
Actuator Material | Nylon |
