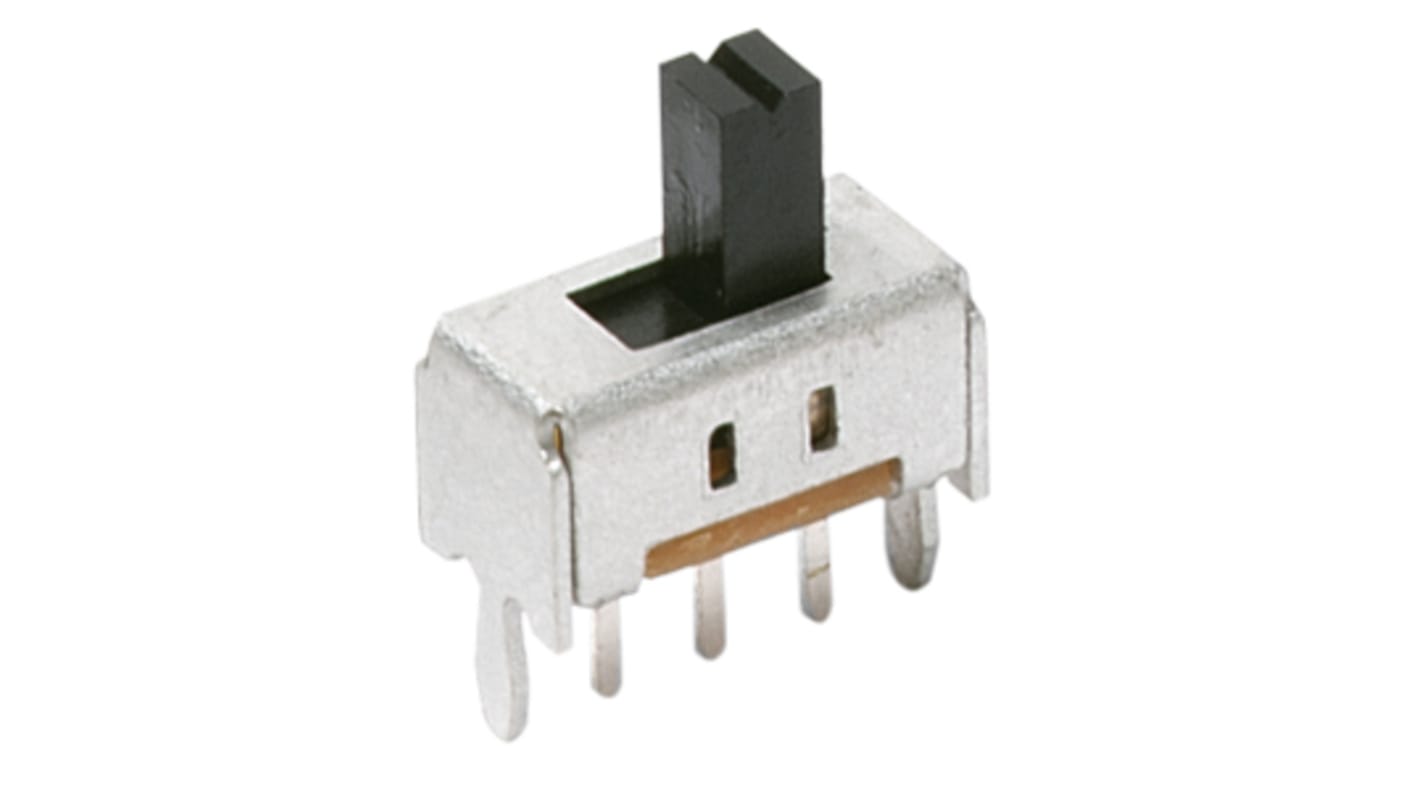

C & K Through Hole Slide Switch SPDT Latching 100 mA Slide
- RS Stock No.:
- 154-6147
- Mfr. Part No.:
- OS102011MS2QN1C
- Manufacturer:
- C & K
70 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR3.655
| Units | Per Unit | Per Pack* |
| 10 - 70 | MYR3.655 | MYR36.55 |
| 80 - 140 | MYR3.577 | MYR35.77 |
| 150 + | MYR3.471 | MYR34.71 |
| *price indicative | ||
- RS Stock No.:
- 154-6147
- Mfr. Part No.:
- OS102011MS2QN1C
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Variety of actuators and terminations
PC and panel mounting
Gold or silver plating available
Shorting or non-shorting contacts
Halogen free material
Test & measurement equipment
Computer peripherals & network products
Consumer products
PC and panel mounting
Gold or silver plating available
Shorting or non-shorting contacts
Halogen free material
Test & measurement equipment
Computer peripherals & network products
Consumer products
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | Through Hole |
| Switch Operation | Latching |
| Contact Current Rating | 100 mA |
| Terminal Type | PC Pin |
| Actuator Type | Slide |
| Length | 8.6mm |
| Width | 4.3mm |
| Depth | 11.5mm |
| Dimensions | 8.6 x 4.3 x 11.5mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 10000Cycles |
| Voltage Rating | 12V dc |
| Minimum Operating Temperature | -30°C |
| Actuator Material | POM |
| Operating Temperature Range | -30 → +70°C |
| Contact Material | Brass, Copper Alloy |
| Maximum Operating Temperature | +70°C |
