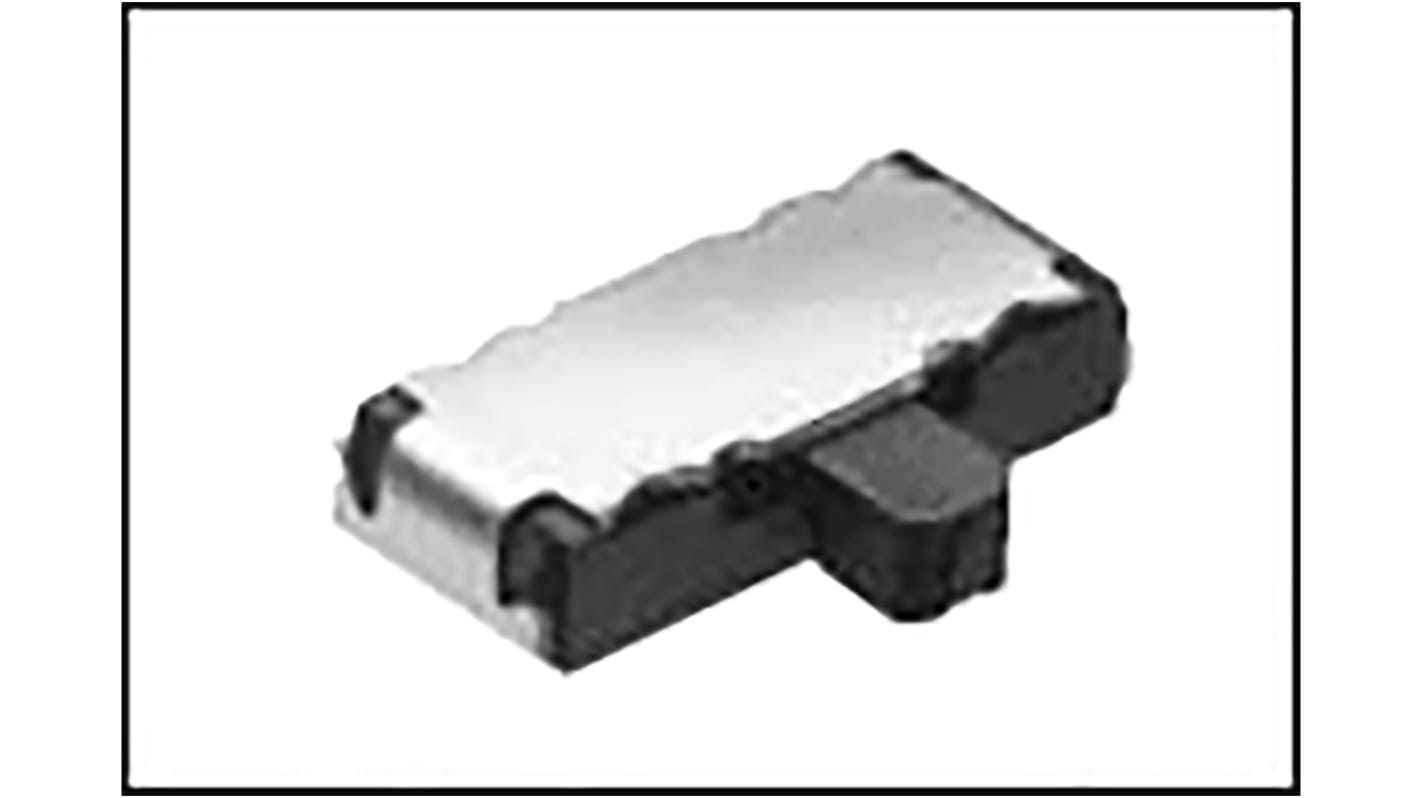

Surface Mount Slide Switch Single Pole Double Throw (SPDT) Latching 300 mA Slide

  • RS Stock No. 123-8937
  • Mfr. Part No. SSSS810701
  • Manufacturer Alps Alpine
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Alps SSSS Series Slide Switch

Alps SSSS series of slide switches are an excellent choice for compact & high density portable devices. The SSSS series can be simply mounted via a snap-in method, making installation quick and keeping maintainence downtime at a low.


Features and Benefits

Offered in both horizontal & vertical actuator options.
2 mm travel slide switch.
Offered with a 2 mm long actuator.
10,000 cycle mean time before failure (MTBF).

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type Surface Mount
Switch Operation Latching
Contact Current Rating 300 mA
Terminal Type Solder
Actuator Type Slide
Length 6.7mm
Width 4.1mm
Depth 1.9mm
Dimensions 6.7 x 4.1 x 1.9mm
Contact Resistance 70 (Initial) mΩ, 130 (After Lifetime) mΩ
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Voltage Rating 5V dc
225 Within 4 working day(s) (Global stock)
60 Within 6 working day(s) (Global stock)
Price Each (In a Pack of 5)
MYR 4.354
units
Per unit
Per Pack*
5 - 20
MYR4.354
MYR21.77
25 - 45
MYR4.31
MYR21.55
50 - 95
MYR4.272
MYR21.36
100 - 245
MYR4.182
MYR20.91
250 +
MYR4.058
MYR20.29
*price indicative
