- RS Stock No.:
- 123-8935
- Mfr. Part No.:
- SSSS820201
- Manufacturer:
- Alps Alpine
5 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each (In a Pack of 5)
MYR10.488
units | Per Unit | Per Pack* |
5 - 45 | MYR10.488 | MYR52.44 |
50 - 95 | MYR10.272 | MYR51.36 |
100 - 245 | MYR9.962 | MYR49.81 |
250 + | MYR9.662 | MYR48.31 |
*price indicative |
- RS Stock No.:
- 123-8935
- Mfr. Part No.:
- SSSS820201
- Manufacturer:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

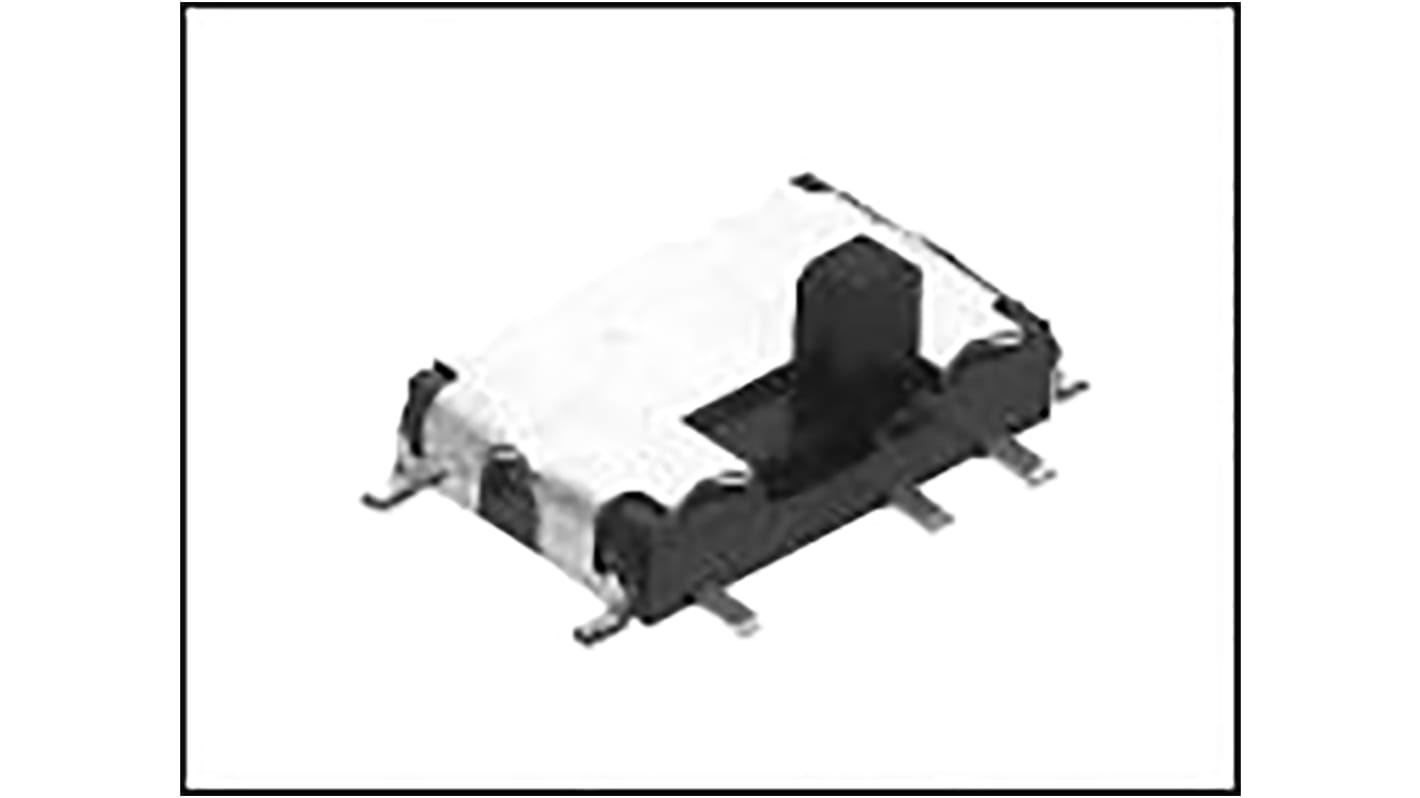

Alps SSSS Series Slide Switch
Alps SSSS series of slide switches are an excellent choice for compact & high density portable devices. The SSSS series can be simply mounted via a snap-in method, making installation quick and keeping maintainence downtime at a low.
Features and Benefits
Offered in both horizontal & vertical actuator options.
2 mm travel slide switch.
Offered with a 2 mm long actuator.
10,000 cycle mean time before failure (MTBF).
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Mounting Type | Surface Mount |
Switch Operation | Latching |
Contact Current Rating | 300 mA |
Terminal Type | Solder |
Actuator Type | Slide |
Length | 6.7mm |
Width | 4.1mm |
Depth | 3.4mm |
Dimensions | 6.7 x 4.1 x 3.4mm |
Contact Resistance | 130 (After Lifetime) mΩ, 70 (Initial) mΩ |
Voltage Rating | 5V dc |
Mechanical Life | 10000Cycles |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
