RS PRO PCB Slide Switch SPDT Latching 400 mA @ 20 V Slide
- RS Stock No.:
- 429-498
- Manufacturer:
- RS PRO
7280 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR25.21
| Units | Per Unit |
| 1 - 99 | MYR25.21 |
| 100 - 249 | MYR24.50 |
| 250 - 499 | MYR23.50 |
| 500 - 2499 | MYR22.85 |
| 2500 + | MYR18.80 |
- RS Stock No.:
- 429-498
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

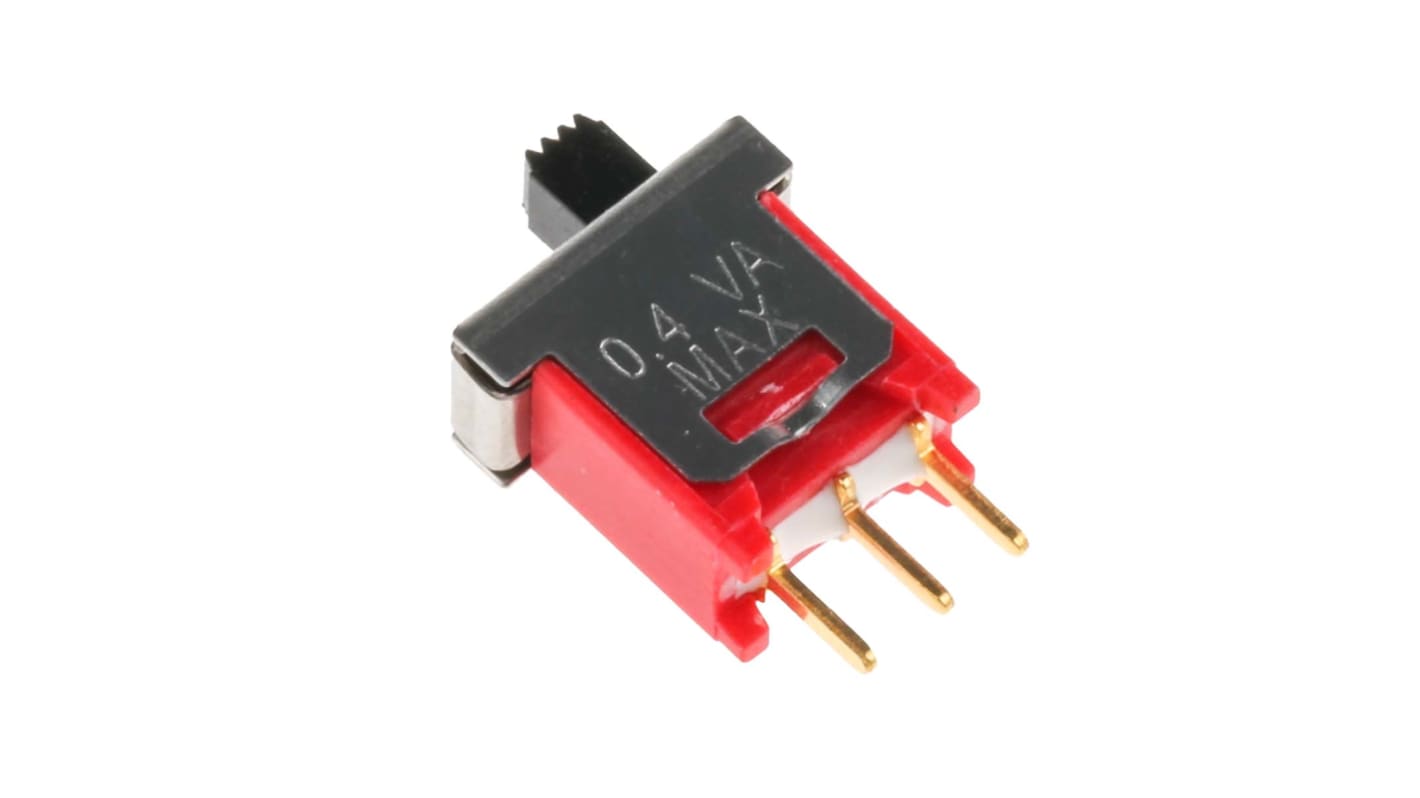

RS PRO PCB Slide Switch Single Pole Double Throw (SPDT) Latching 400 mA at 20 V Slide
Use this RS PRO Single Pole Double Throw (SPDT) slide switch to turn printed circuit boards (PCBs) on or off. It includes a single input terminal that links a circuit to two output terminals, as well as a switch that allows the input current to be easily changed.
For protection against oxidation and corrosion, it has gold-plated contacts. It also features a nylon actuator that provides electrical insulation to protect against short circuits. This component can be used in a variety of locations with difficult working circumstances thanks to its wide temperature range of -30ºC to +85ºC.
For protection against oxidation and corrosion, it has gold-plated contacts. It also features a nylon actuator that provides electrical insulation to protect against short circuits. This component can be used in a variety of locations with difficult working circumstances thanks to its wide temperature range of -30ºC to +85ºC.
Features and Benefits
- Nylon actuator material
- Slide actuator type
- Single Pole Double Throw (SPDT) contact configuration
- Contact current rating of 400 mA (milliamperes) at 20 V (volts)
- Gold-plated contact material
- Contact resistance of 20 mΩ
- Dimensions of 10.16 (length) x 5.08 (width) x 9.2 mm (depth)
- Operating temperature range of -30ºC to +85ºC
- Mechanical life of 30000 operations
- PCB mounting type
- Latching switch operation
- Through-hole terminal type
- Voltage rating of 20 V AC/DC
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 400 mA @ 20 V |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Length | 10.16mm |
| Width | 5.08mm |
| Depth | 9.2mm |
| Dimensions | 10.16 x 5.08 x 9.2mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 30000Operations |
| Voltage Rating | 20V ac/dc |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold |
| Actuator Material | Nylon |
| Minimum Operating Temperature | -30°C |
