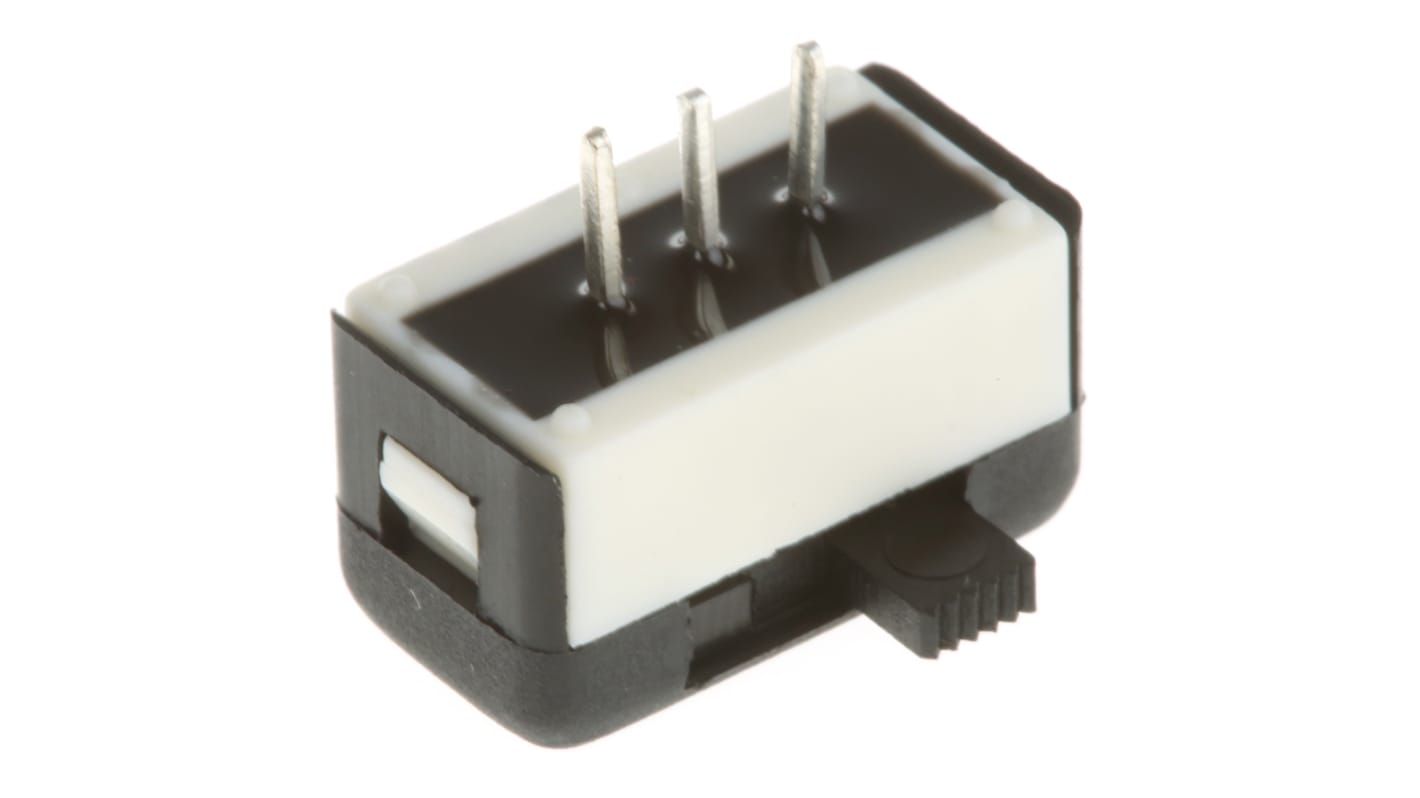

PCB Slide Switch SPDT On-On 1 A @ 30 V dc Slide

  • RS Stock No. 332-818
  • Mfr. Part No. 25336NA
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Apem Miniature Slide Switches - 25000N Series

Top & side actuation versions
Sealed terminals to prevent ingress of flux during soldering
Electrical life: 10000 cycles
Glass filled Polyamide actuator and PBT high temperature thermoplastic case

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 1 A @ 30 V dc
Terminal Type Through Hole
Actuator Type Slide
Contact Resistance 10mΩ
Mechanical Life 20000Operations
Operating Temperature Range -40 → +85°C
Actuator Material Glass Fibre Reinforced PA
Contact Material Silver
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
204 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 16.40
units
Per unit
1 - 24
MYR16.40
25 - 99
MYR14.57
100 - 249
MYR12.81
250 - 499
MYR10.99
500 +
MYR9.17
