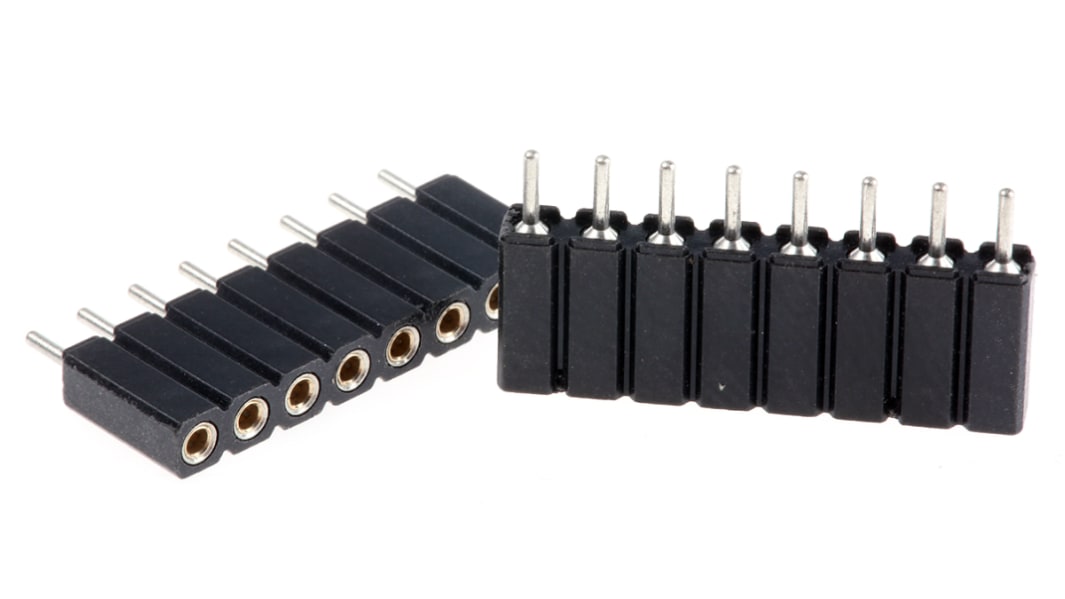

8 Way Preci-Dip Straight Through Hole 2.54mm SIL Socket, Solder, 3A 100 V ac, 150 V dc
- RS Stock No.:
- 702-2789
- Mfr. Part No.:
- 801-87-008-10-001101
- Manufacturer:
- Preci-Dip
Temporarily out of stock - back order for despatch 22/05/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 5)
MYR4.656
| Units | Per Unit | Per Pack* |
| 5 - 120 | MYR4.656 | MYR23.28 |
| 125 - 495 | MYR4.524 | MYR22.62 |
| 500 + | MYR4.338 | MYR21.69 |
| *price indicative | ||
- RS Stock No.:
- 702-2789
- Mfr. Part No.:
- 801-87-008-10-001101
- Manufacturer:
- Preci-Dip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
2.54 mm IC Sockets Ø 0.76 mm pin
Swiss Preci-dip Socket Connectors both Through Hole and SMD mountings.
Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips
Right Angle SMD mounting are cranked pin type
Straight SMD mounting are Gull-Wing type
80*-**-***-10-012*** Series are Low Profile straight headers
Right Angle SMD mounting are cranked pin type
Straight SMD mounting are Gull-Wing type
80*-**-***-10-012*** Series are Low Profile straight headers
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Contact Material | Beryllium Copper, Brass |
| Contact Plating | Gold, Tin |
| Pitch | 2.54mm |
| Orientation | Straight |
| Termination Method | Solder |
| Mounting Type | Through Hole |
| Housing Material | Glass Fibre Reinforced PCT |
| Current Rating | 3A |
| Voltage Rating | 100 V ac, 150 V dc |
| Dimensions | 20.32 x 2.54 x 7mm |
| Depth | 7mm |
| Length | 20.32mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Width | 2.54mm |
