- RS Stock No.:
- 828-8778
- Mfr. Part No.:
- 699.120.75
- Manufacturer:
- Werma
- RS Stock No.:
- 828-8778
- Mfr. Part No.:
- 699.120.75
- Manufacturer:
- Werma
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

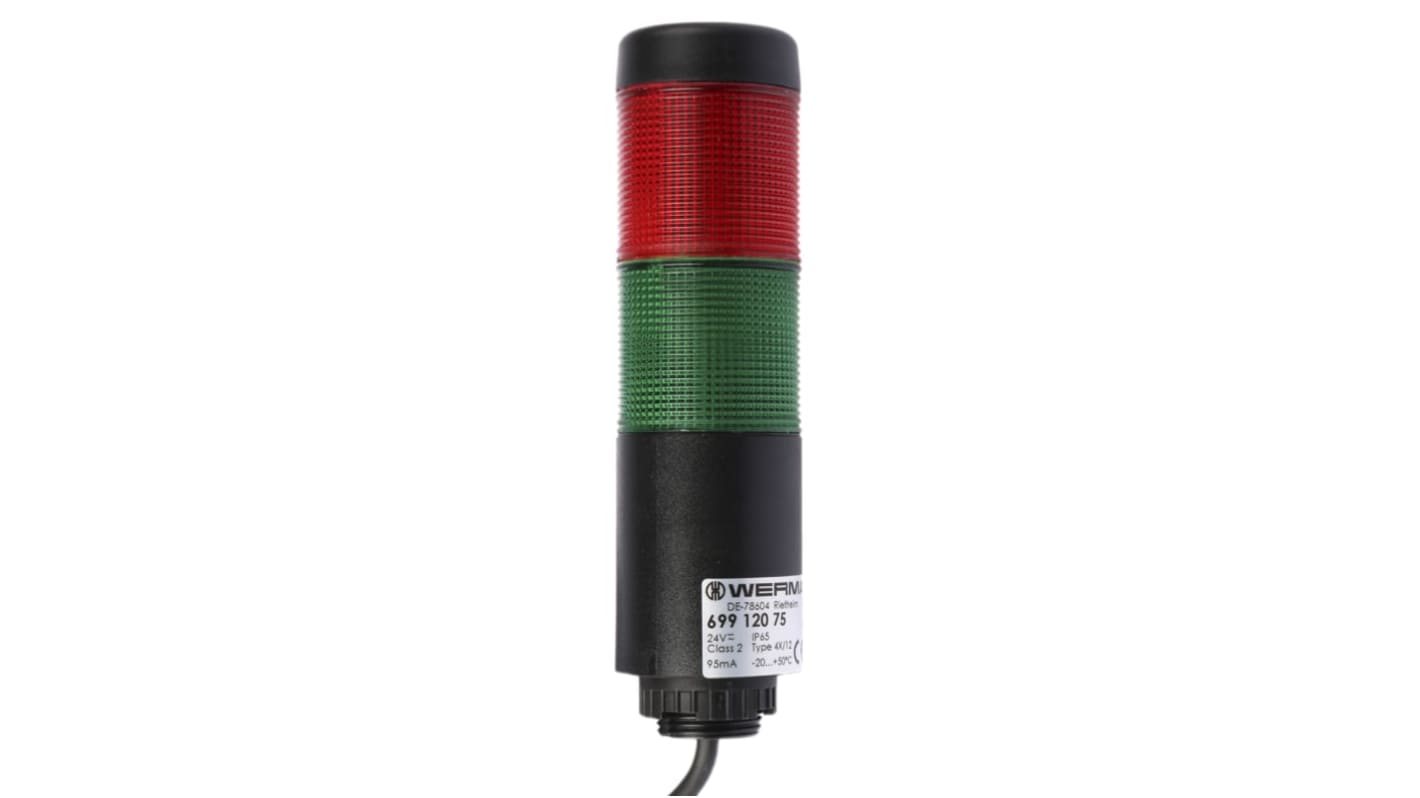

WERMA LED Signal Tower With Buzzer, 2 Light Elements, 24 V AC/DC - Kompakt 37 Series - 699.120.75
This signal tower from WERMA provides both visual and audible warning signals. Its red- and green-coloured lights are ideal for stop-and-go applications while the bright LEDs (light-emitting diodes) provide maximum intensity in lower-light environments. These lamps are maintenance-free and offer a long working life with good power efficiency. The tower is supplied pre-assembled, so all you have to do is mount and connect the unit. As it's tamper-proof, this is a good choice for public areas.
Slim, space-saving design with a diameter of 37.5 mm
Easily heard buzzer with a maximum volume of 85 dB
Strong and hard-wearing polycarbonate housing for durability
Save on installation time thanks to self-explanatory connections and intuitive mechanics
Suitable for both base and tube mounting for versatile application
Easily heard buzzer with a maximum volume of 85 dB
Strong and hard-wearing polycarbonate housing for durability
Save on installation time thanks to self-explanatory connections and intuitive mechanics
Suitable for both base and tube mounting for versatile application
Application Information
Assembly lines
Automotive industry
Point-of-sale and access-control systems
Automotive industry
Point-of-sale and access-control systems
Can this signal tower get wet?
Yes, it can. It has an ingress protection rating of IP65, meaning it's protected from low-pressure water jets in any direction. You can use it outdoors provided its not continuously exposed to severe weather conditions.
Specifications
Attribute | Value |
---|---|
Series | Kompakt 37 |
Number of Light Elements | 2 |
Lens Colour | Red/Green |
Bulb Type | LED |
LED Colour | Red/Green |
Light Effect | Steady |
Sounder Component | Buzzer |
Decibels at 1 Metre | 85dB |
Mounting Style | Base Mount, Tube |
Height | 141mm |
Base Diameter | 38mm |
Connection Cable Length | 2m |
IP Rating | IP65 |
Connection Type | Cable |
Supply Voltage | 24 V |
Maximum Decibel | 85dB |
Current Consumption | 95mA |
Minimum Temperature | -20°C |
Maximum Temperature | +50°C |
Housing Colour | Black |
