FOF-1018-AC, Shielding Strip of Ni/Cu Layered Metallized Fiber/Polyether Urethane Foam With Self-Adhesive 1m x 9.0mm x
- RS Stock No.:
- 264-9483
- Mfr. Part No.:
- FOF-1018-AC
- Manufacturer:
- UVOX
15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR55.108
| Units | Per Unit | Per Pack* |
| 5 - 120 | MYR55.108 | MYR275.54 |
| 125 - 245 | MYR53.454 | MYR267.27 |
| 250 - 495 | MYR51.80 | MYR259.00 |
| 500 + | MYR50.698 | MYR253.49 |
| *price indicative | ||
- RS Stock No.:
- 264-9483
- Mfr. Part No.:
- FOF-1018-AC
- Manufacturer:
- UVOX
Technical data sheets
Legislation and Compliance
Product Details

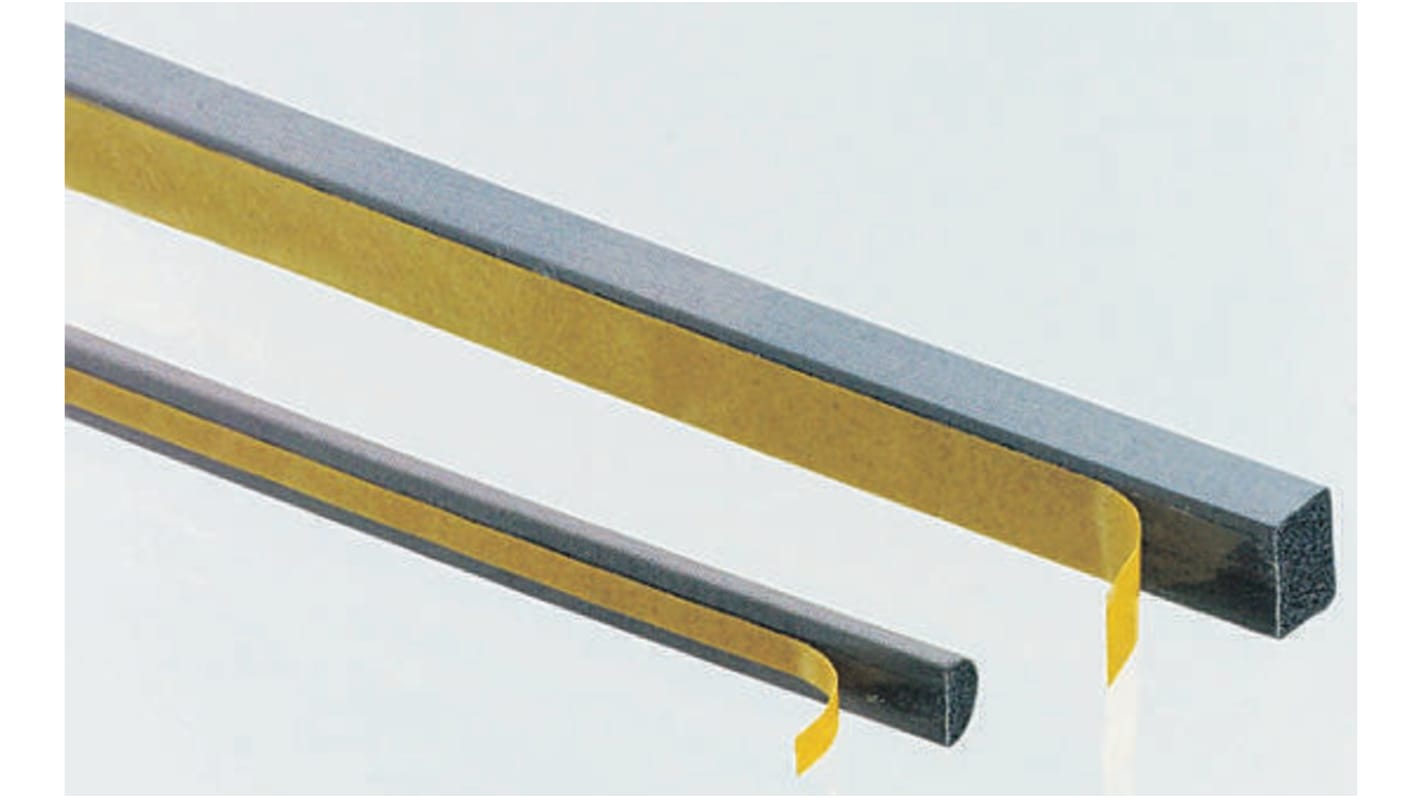

Fabric Gasket Strip
Soft shielding strips designed for computer, telecommunications and industrial enclosure applications
Constructed from a durable electrically conductive, copper plated fabric wrapped around a soft sponge core
Pressure sensitive self-adhesive strip along one edge allows easy application
Average shielding attenuation performance better than 90dB @ 100MHz to 10GHz
Recovers 90% of its original size after it has been compressed for 22Hrs
Dust and moisture protection
Abrasion resistant fabric > 100000 cycles
Compression deflection is typically 2.5N/25mm
Adhesive strength (peel test to steel): 24.3N/20mm
Service Temperature -40°C to +70°C
Surface Resistivity 0.08 to 0.1 Ω/sq
Supplied in 1m lengths
Constructed from a durable electrically conductive, copper plated fabric wrapped around a soft sponge core
Pressure sensitive self-adhesive strip along one edge allows easy application
Average shielding attenuation performance better than 90dB @ 100MHz to 10GHz
Recovers 90% of its original size after it has been compressed for 22Hrs
Dust and moisture protection
Abrasion resistant fabric > 100000 cycles
Compression deflection is typically 2.5N/25mm
Adhesive strength (peel test to steel): 24.3N/20mm
Service Temperature -40°C to +70°C
Surface Resistivity 0.08 to 0.1 Ω/sq
Supplied in 1m lengths
Physical and Electrical Properties
Specifications
Attribute | Value |
|---|---|
| Material | Ni/Cu Layered Metallized Fiber/Polyether Urethane Foam |
| Fixing Method | Self-Adhesive |
| Thickness | 6mm |
| Length | 1m |
| Width | 9.0mm |
