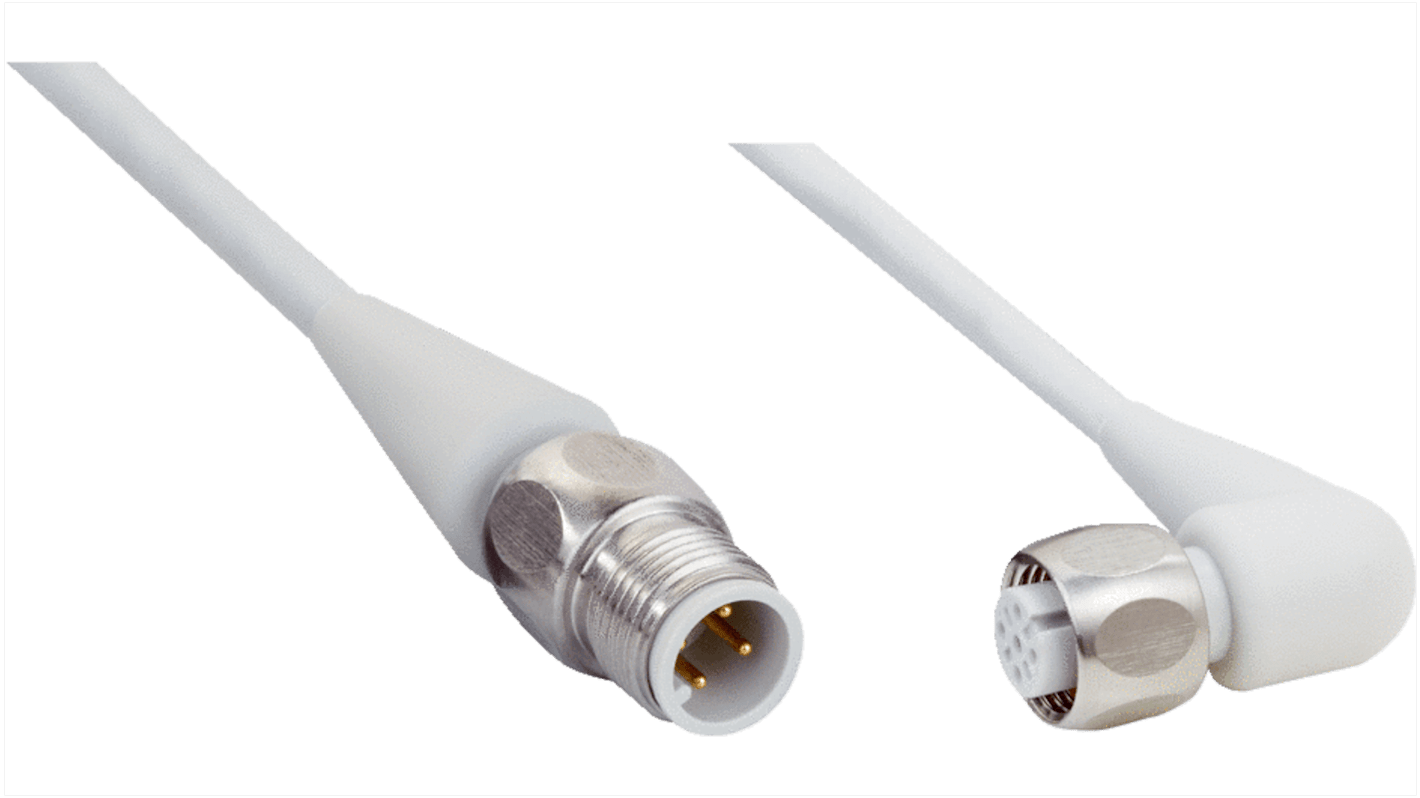

Sick Right Angle Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 2m
- RS Stock No.:
- 225-2996
- Mfr. Part No.:
- DSL-1204-B02MRN
- Manufacturer:
- Sick
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR251.26
| Units | Per Unit |
| 1 + | MYR251.26 |
- RS Stock No.:
- 225-2996
- Mfr. Part No.:
- DSL-1204-B02MRN
- Manufacturer:
- Sick
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Connectivity for hygienic and washdown zones
Feature & Benefits
Consistent use of FDA approved materials
Hygienic design based on EHEDG recommendations.
Designed with very smooth surfaces and no gaps to prevent dirt getting trapped.
Very high temperature resistance: –40 °C ... +105 °C
Suitable for drag chains
Resistant to lactic acid, microbes and hydrolysis
Hygienic design based on EHEDG recommendations.
Designed with very smooth surfaces and no gaps to prevent dirt getting trapped.
Very high temperature resistance: –40 °C ... +105 °C
Suitable for drag chains
Resistant to lactic acid, microbes and hydrolysis
Specifications
Attribute | Value |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Length | 2m |
| Sheath Colour | Grey |
| Sheath Material | PP |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Right Angle |
| Connector 1 Number of Contacts | 4 |
| Connector 1 | M12 |
| Connector 2 Housing Gender | Male |
| Connector 2 Number of Contacts | 4 |
| Connector 2 Orientation | Straight |
| Connector 2 Gender | Male |
| Connector 2 | M12 |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V |
| Current Rating | 4 A |
| IP Rating | IP69K |
| American Wire Gauge | 22 AWG |
| Cable Shape | Multicore |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +105°C |
| Minimum Bend Radius | 46 mm |
| Insulation Material | PP |
| Outer Diameter | 4.6mm |
| Connector 1 Housing Gender | Female |
