- RS Stock No.:
- 225-2927
- Mfr. Part No.:
- DOL-0803-G05MRN
- Manufacturer:
- Sick
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR119.50
Units | Per Unit |
1 + | MYR119.50 |
- RS Stock No.:
- 225-2927
- Mfr. Part No.:
- DOL-0803-G05MRN
- Manufacturer:
- Sick
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE

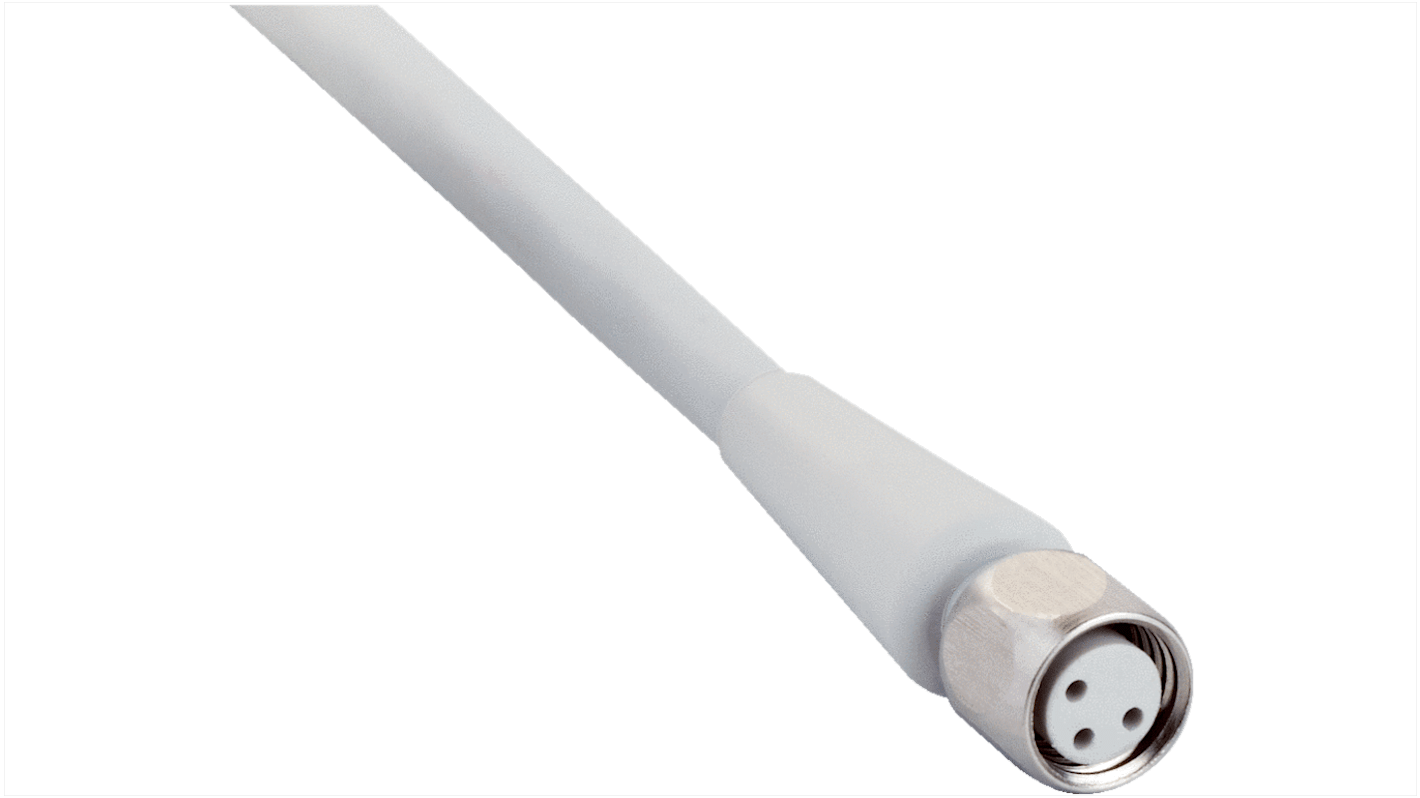

Product Details
Connectivity for hygienic and washdown zones
Feature & Benefits
Consistent use of FDA approved materials
Hygienic design based on EHEDG recommendations.
Designed with very smooth surfaces and no gaps to prevent dirt getting trapped.
Very high temperature resistance: –40 °C ... +105 °C
Suitable for drag chains
Resistant to lactic acid, microbes and hydrolysis
Hygienic design based on EHEDG recommendations.
Designed with very smooth surfaces and no gaps to prevent dirt getting trapped.
Very high temperature resistance: –40 °C ... +105 °C
Suitable for drag chains
Resistant to lactic acid, microbes and hydrolysis
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.34 mm² |
Number of Cores | 3 |
Sheath Material | PP |
Sheath Colour | Grey |
Length | 5m |
Connector 1 Gender | Female |
Connector 1 Number of Contacts | 3 |
Connector 1 | M8 |
Connector 2 | Unterminated |
Shielded/Unshielded | Unshielded |
Current Rating | 4 A |
Voltage Rating | 60 V |
IP Rating | IP69K |
Minimum Operating Temperature | -25°C |
Connector 1 Housing Gender | Female |
Maximum Operating Temperature | +105°C |
Cable Shape | Multicore |
American Wire Gauge | 22 AWG |
Minimum Bend Radius | 46 mm |
Insulation Material | PP |
Outer Diameter | 4.6mm |
