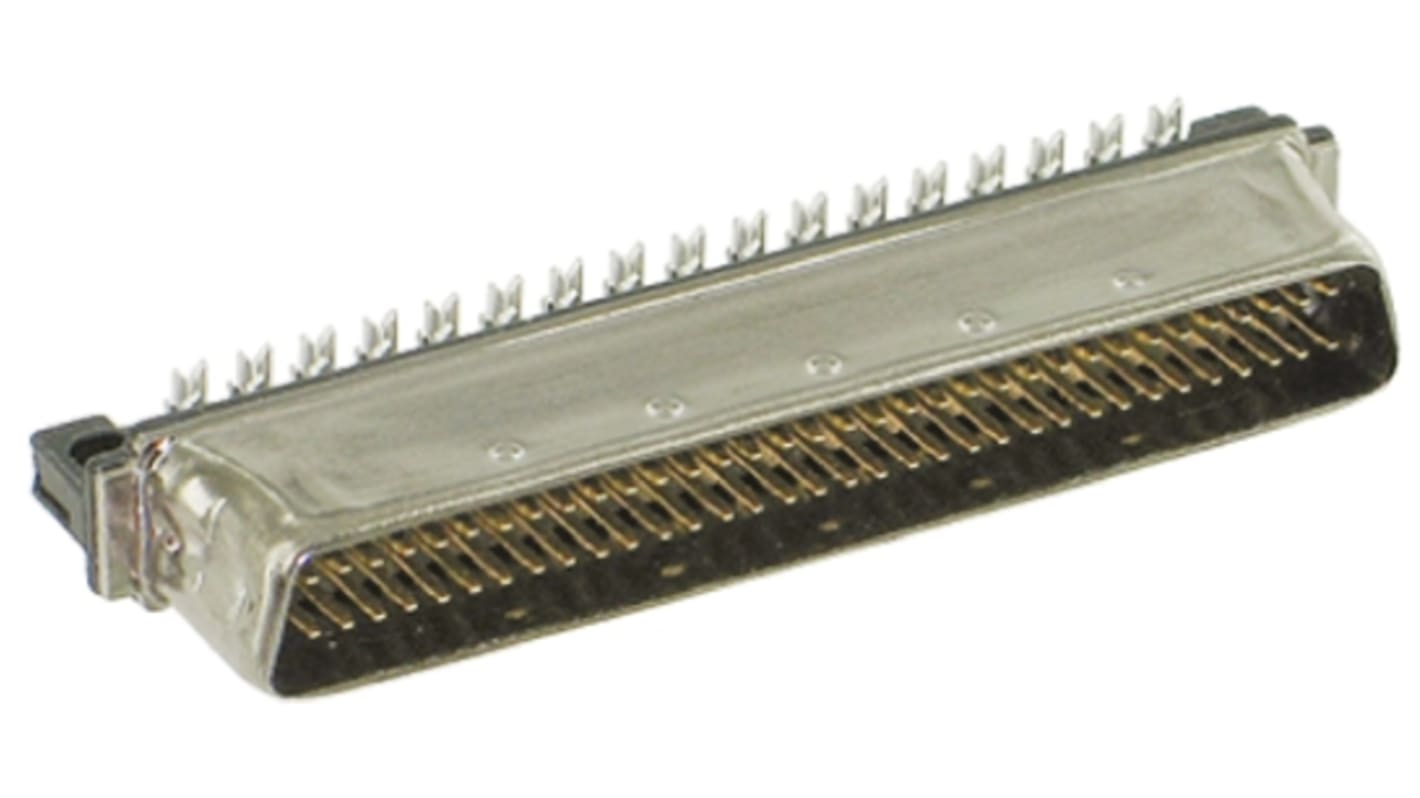

TE Connectivity, AMPLIMITE .050 III Male 50 Pin Straight Cable Mount SCSI Connector 1.27mm Pitch, Crimp, Quick Latch
- RS Stock No.:
- 794-3976
- Mfr. Part No.:
- 1-5750913-5
- Manufacturer:
- TE Connectivity
38 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Kit
MYR75.48
| Kit(s) | Per Kit |
| 1 - 99 | MYR75.48 |
| 100 - 249 | MYR73.97 |
| 250 - 999 | MYR72.50 |
| 1000 - 2499 | MYR71.05 |
| 2500 + | MYR69.62 |
- RS Stock No.:
- 794-3976
- Mfr. Part No.:
- 1-5750913-5
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
AMPLIMITE .050 Series Cable Plug Connectors, Series III
AMPLIMITE 0.050 series III cable plug D-sub SCSI connectors with a 1.27mm centreline. These AMPLIMITE 0.050 series III cable plug D-sub SCSI connectors have IDC terminations, black or gray polyester 94V-0 housings and termination covers, tin-nickel alloy plated steel shells and phosphor bronze plated 0.00076mm gold contacts.
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Number of Contacts | 50 |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Housing Material | Thermoplastic |
| Pitch | 1.27mm |
| Current Rating | 1A |
| Voltage Rating | 30 V ac |
| Latch Type | Quick Latch |
| Termination Method | Crimp |
| Series | AMPLIMITE .050 III |
| Length | 40.11mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Depth | 7.44mm |
| Width | 14.94mm |
