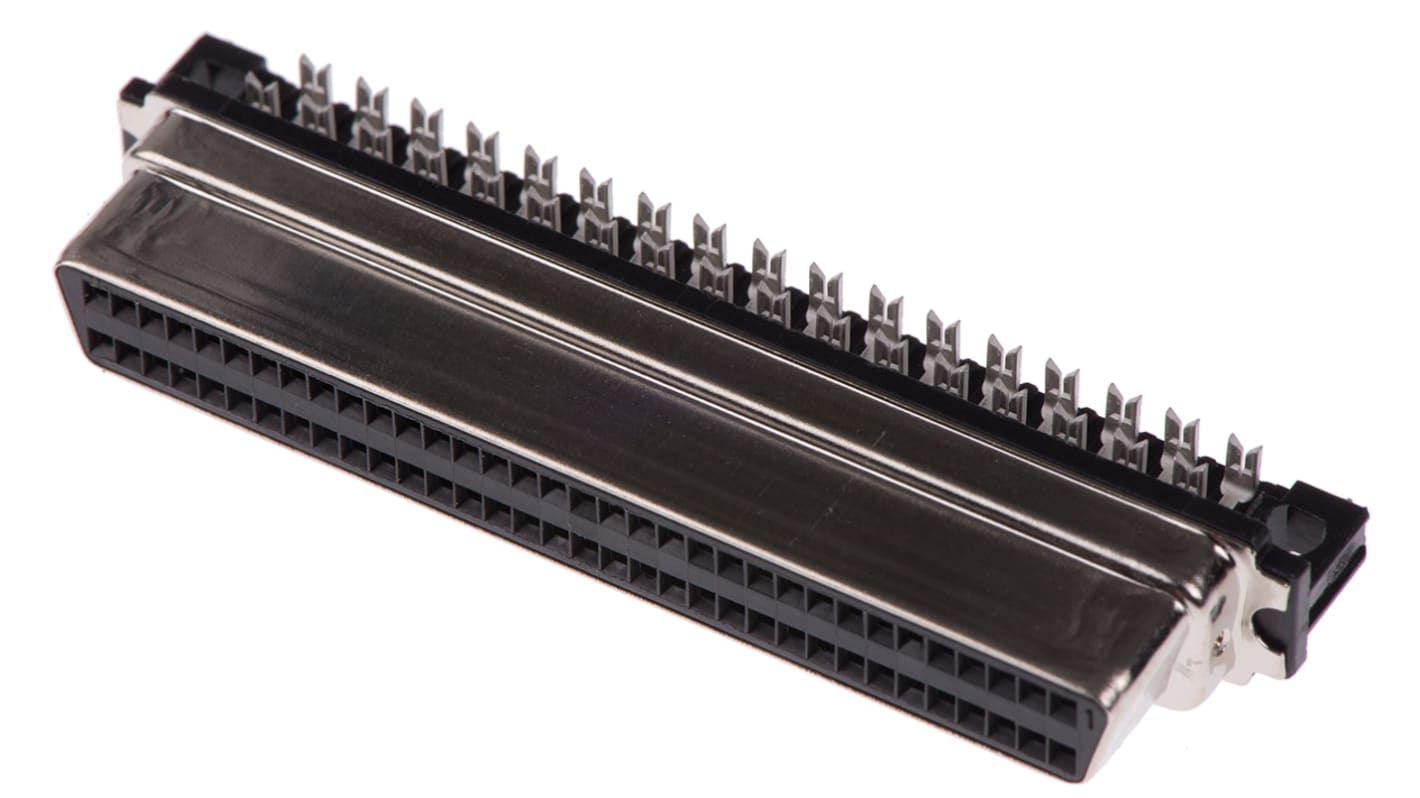

TE Connectivity, AMPLIMITE .050 III Female 68 Pin Right Angle Cable Mount SCSI Connector 1.27mm Pitch, Crimp, Quick
- RS Stock No.:
- 739-0779
- Mfr. Part No.:
- 5749699-7
- Manufacturer:
- TE Connectivity
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
36 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR84.29
| Units | Per Unit |
| 1 - 89 | MYR84.29 |
| 90 - 179 | MYR82.59 |
| 180 + | MYR80.94 |
- RS Stock No.:
- 739-0779
- Mfr. Part No.:
- 5749699-7
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
AMPLIMITE D-Sub Connector,.050 Series III, IDC,Shielded Cable Receptacle
AMPLIMITE .050 series III IDC, d-sub shielded cable receptacle connectors with standard termination covers and a 1.27mm centreline. These .050 series III IDC d-sub cable receptacle connectors have black 94V-0 thermoplastic housings, tin nickel alloy plated steel shells and EMI/RFI shielding. The contacts for these .050 series III IDC d-sub cable connectors are phosphor bronze with duplex 0.00076 gold plating.
Stock number 739-0776 has an assembled cover.
Stock number 739-0779 has an unassembled cover.
For suitable backshell kits see stock number 739-0726 and 718-1336
Stock number 739-0776 has an assembled cover.
Stock number 739-0779 has an unassembled cover.
For suitable backshell kits see stock number 739-0726 and 718-1336
Standards
SCSI-2, SCSI-3, EIA RS-232, ISO-11569 (26 position cable assembly with spring latches), IPI-2, HIPPI and IEE 802.3 MII sta
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TE Connectivity AMPLIMITE D-Subminiature Connectors
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Number of Contacts | 68 |
| Body Orientation | Right Angle |
| Mounting Type | Cable Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Housing Material | Thermoplastic |
| Pitch | 1.27mm |
| Current Rating | 1A |
| Voltage Rating | 30 V ac |
| Latch Type | Quick Latch |
| Termination Method | Crimp |
| Series | AMPLIMITE .050 III |
| Length | 51.54mm |
| Width | 15.04mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
