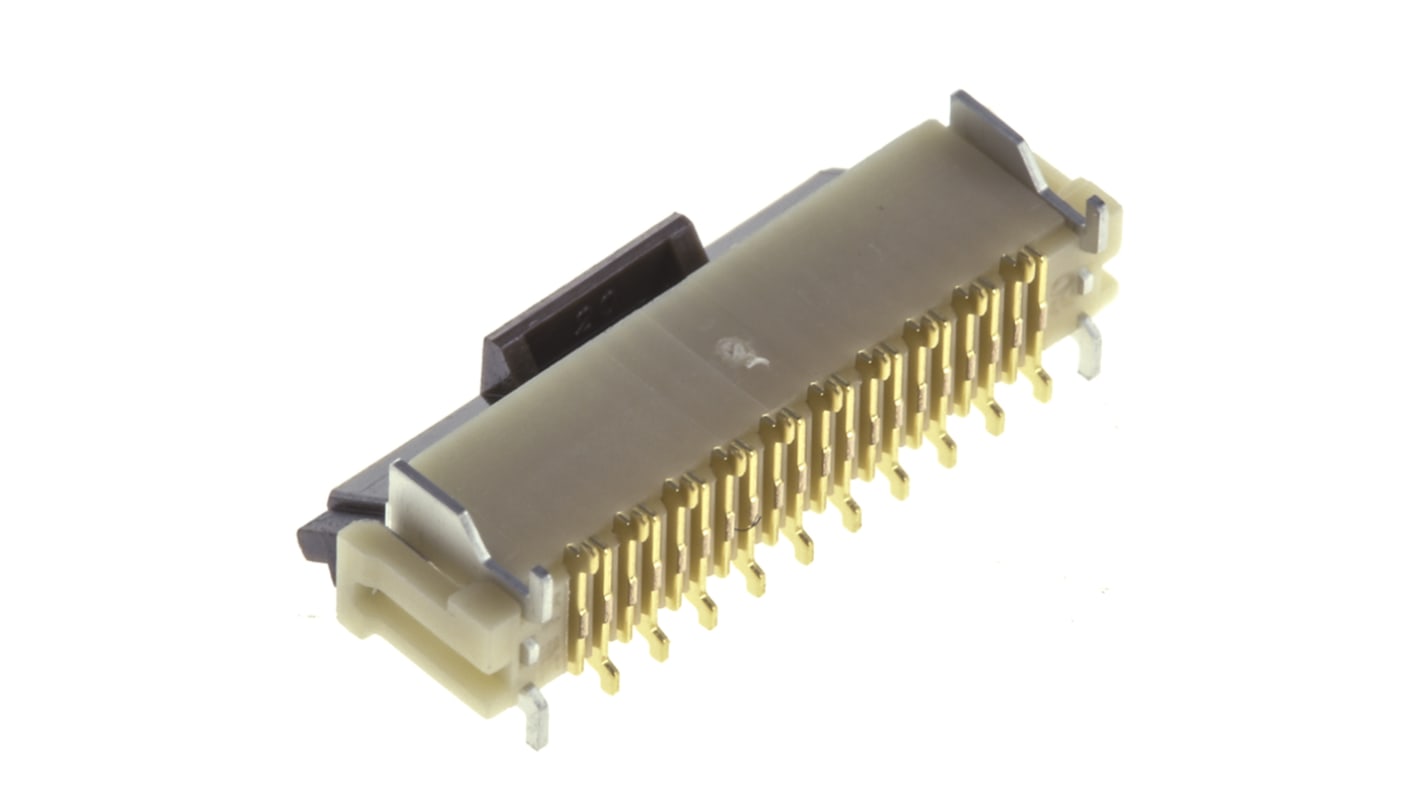

Hirose DX Series, Male 68 Pin Straight Cable Mount SCSI Connector 1.27mm Pitch, IDC, Screw

  • RS Stock No. 162-5732
  • Mfr. Part No. DX30A-68P(50)
  • Manufacturer Hirose
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Hirose original 1.27mm pitch High-Density I/O connectors

1.27mm contact spacing conserves valuable board space and permits ultra-high density designs
Bellow contacts create smooth and precise mating and unmating
Unique shell design assures first make/mast break grounding and overall noise protection
IDC termination allows quick and low cost termination to AWG #28 and #30 wires
Back Shell and receptacle shell are made of diecast zinc alloy to reduce the penetration of external EMI noise
Easy to use 'One-Touch' and 'Screw' locking mechanisms assure quick and easy 'positive' closures every time
Termination method is available in IDC, Soldering, Right Angle Dip, Straight Dip and SMT
DX with 3 cavities and 2 cavities for Co-axial contacts are newly introduced to meet the needs of high speed data transmission
Shielded Plug-in type for interface between 2 Units available

Specifications
Attribute Value
Gender Male
Number of Contacts 68
Body Orientation Straight
Mounting Type Cable Mount
Contact Material Copper Alloy
Contact Plating Gold
Housing Material PBT
Pitch 1.27mm
Current Rating 500mA
Voltage Rating 300 V
Latch Type Screw
Termination Method IDC
Series DX
Length 49.66mm
Depth 9.2mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -55°C
Width 17.2mm
10 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 53.31
units
Per unit
1 - 4
MYR53.31
5 - 9
MYR48.07
10 +
MYR37.63
