RS PRO Nylon Screw Insulator, M3, 6mm

RS Stock No.:: 178-692
Manufacturer:: RS PRO

2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price 1 Bag of 50

MYR29.16

Bag(s)	Per Bag	Per Unit*
1 +	MYR29.16	MYR0.583
*price indicative

RS Stock No.:: 178-692
Manufacturer:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: US

Product Details

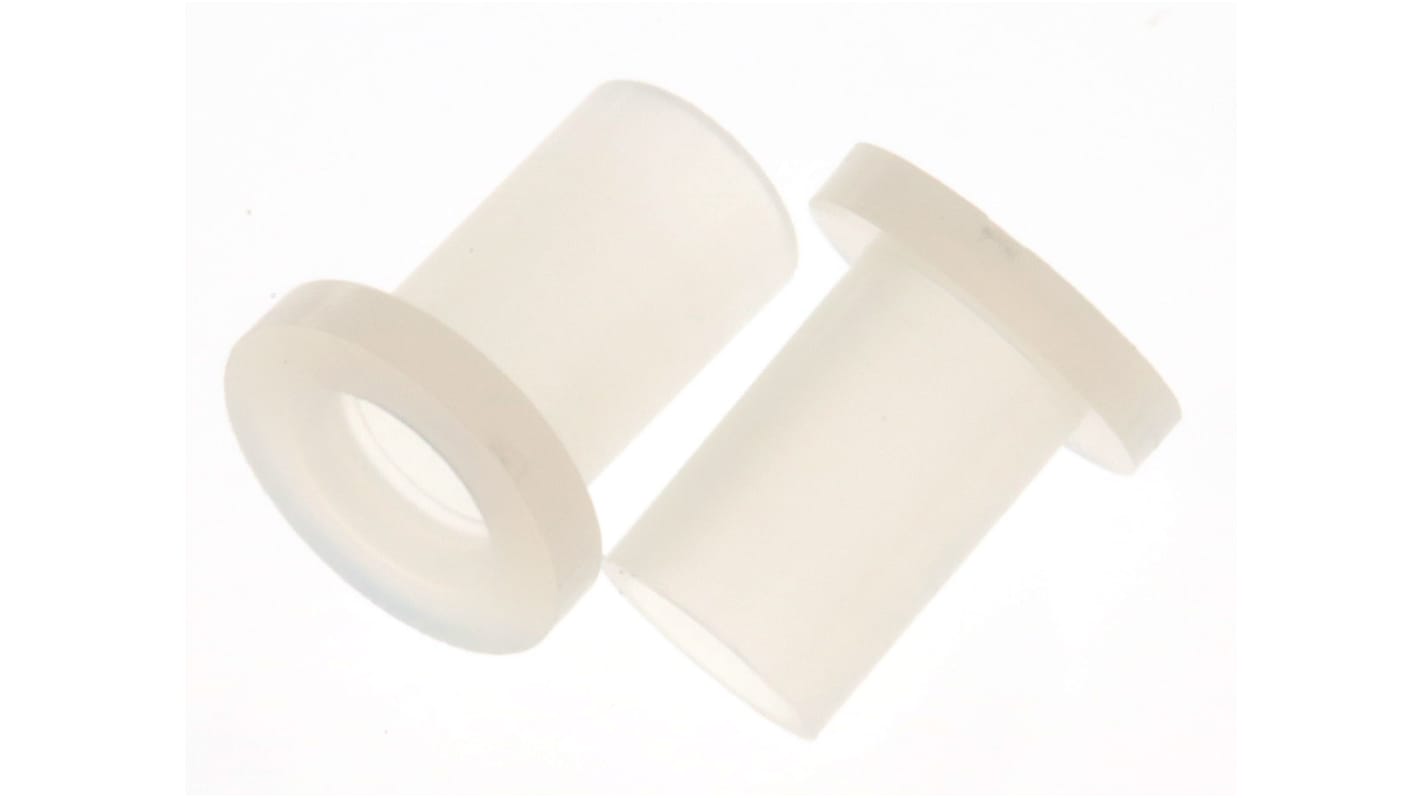

Nylon Screw Insulators

Although primarily intended for the isolation of metal screws, these insulating spacers are also suitable for use as lightly loaded bearings.

Note

Dimensions refering to the line drawing:
Dimension A is Flange Diameter
Dimension B is Flanges
Dimension C is Body Diameter
Dimension D is Hole Diameter

Plain Spacers & Screw Insulators

Plain Spacers - PVC, Nylon & Nickel Plated Brass

Screw Insulators

Specifications

Attribute	Value
For Screw Size	M3
Inside Diameter	3.1mm
Body Outside Diameter	4mm
Body Length	6mm
Flange Diameter	6.2mm
Flange Thickness	1 mm
Material	Nylon
