RS PRO Male SATA Power to Male LP4 Cable, 100mm
- RS Stock No.:
- 666-5079
- Manufacturer:
- RS PRO
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR11.15
You pay
MYR10.59
| Units | Per Unit |
| 1 - 4 | MYR10.59 |
| 5 + | MYR8.71 |
- RS Stock No.:
- 666-5079
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details

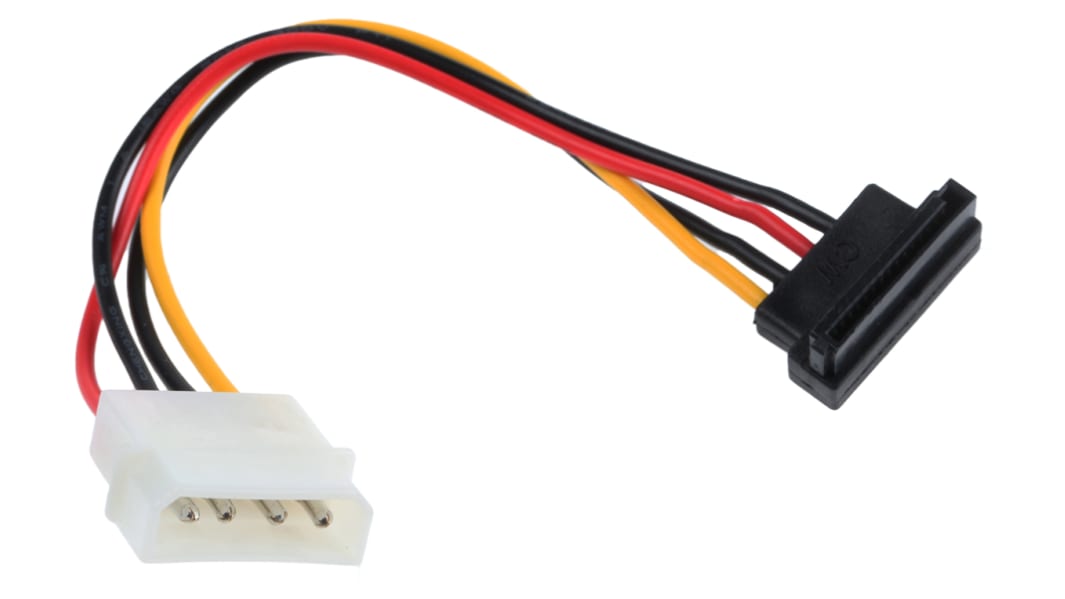

RS PRO Male SATA Power to Male LP4 Cable
Use this S-ATA cable to convert the 4-pin HDD interface to the SATA power connector. This adapter is 100 mm with a 4-pin, 5.25 power connector on one side, 15-pin SATA power connector on the other and angled (90°).
Why would you choose this adapter?
The angle of the cable makes it the ideal solution where space is limited. A 90° angle makes it easier to connect an S-ATA drive avoiding strain on both cable and connector.
Features and Benefits
- Minimise strain on cables
- Male SATA Power to Male LP4 Cable
- 90° angle
Specification
- Connector Type 1: Molex 4-pin
- Connector Gender 1: Male
- Connector Type 2: SATA 15-pin (Power)
- Connector Gender 2: Male
- Length 100 mm
- Weight 10.8 g
Applications
- Serial ATA Hard Drives
- Optical Drives
- DIY Computer Builds
- IT Technical Repair
Specifications
Attribute | Value |
|---|---|
| Connector 1 | SATA Power |
| Connector 2 | LP4 |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Connector 1 Number of Contacts | 15 |
| Connector 2 Number of Contacts | 4 |
| Connector 1 Orientation | Right Angle |
| Length | 100mm |
| Connector 2 Orientation | Straight |
| Outer Sheath Material | PVC |
